Deep-Dive: Global Trends & Technology Roadmap of Lithium Titanate (LTO)

1. Thermodynamic Stability & Zero-Strain Chemistry

From a material science perspective, the defining characteristic of Lithium Titanate (Li4Ti5O12) is the cubic spinel lattice structure. During the insertion and extraction of lithium ions (de/intercalation), the unit cell volume changes by less than 0.2%. This negligible change in structural volume is why materials scientists classify LTO as a "zero-strain" insertion material.

By contrast, conventional graphite anodes experience a volume change of up to 10% on every charge-discharge cycle, causing mechanical degradation, particle pulverization, and rapid loss of electrical contact. This explains why LTO factories can confidently guarantee over 20,000 deep discharge cycles (up to 100% Depth of Discharge), whereas traditional batteries begin degrading after 2,000 to 5,000 cycles.

2. High C-Rate Capability & Sub-Zero Temperature Resilience

The operating potential of the LTO anode is approximately 1.55V vs. Li/Li+. This high operating potential brings major safety benefits:

• No Lithium Plating: Standard lithium-ion batteries risk lithium plating during high-rate charging or cold temperatures, which can lead to internal short circuits. The high potential of LTO ensures the system remains far from the lithium plating threshold, enabling fast charging rates of 10C, 20C, or even 30C continuous discharge.
• Extreme Cold Functionality: Because LTO does not depend on the formation of an unstable SEI layer, lithium-ion diffusion within the lattice remains fast even at low temperatures. In testing, LTO battery cells retain up to 80% of their nominal capacity at -30°C and remain functional down to -50°C.

3. Global Procurement Requirements & B2B Purchasing Pain Points

When sourcing from Lithium Titanate battery factories, B2B procurement managers must evaluate several factors beyond the initial price per kilowatt-hour:

• BMS Interfacing: The unique voltage profile of LTO cells (typically 1.5V to 2.8V per cell, with a nominal voltage of 2.3V or 2.4V) requires specialized Battery Management System (BMS) architectures. Many standard off-the-shelf BMS modules are configured exclusively for LFP (3.2V) or NMC (3.7V). We resolve this with customized, in-house developed BMS modules designed for LTO.
• Cell Balancing & Sorting: With a potential lifecycle of 20,000 cycles, any tiny variation in capacity or internal resistance between cells can compound over time. Nuwon Energy addresses this by utilizing automated grading, sorting, and insulation testing systems to match cells within strict parameters before assembly.
• Compliance & Logistics: Because LTO batteries are categorized as Class 9 Dangerous Goods, factories must provide UN38.3, IEC62619, CE, and UL testing documentation to guarantee seamless global customs clearance and shipping.

4. Macro-Industry Solutions: Integrating LTO Batteries Into Modern Infrastructure

Due to their distinct performance profile, LTO batteries are not meant to compete directly with low-cost, mass-market LFP cells. Instead, they are suited for demanding industrial and commercial applications:

• Electric Mobility & AGVs: In high-throughput distribution warehouses, automated guided vehicles (AGVs) cannot afford long charging times. Our LTO packs allow for fast "opportunity charging" during short breaks, enabling continuous 24/7 operations without battery swap schemes.
• Heavy Duty Rail & Buses: Regenerative braking systems generate high peak currents. LTO's high charge acceptance allows it to capture this energy efficiently, and its long lifecycle matches the operational lifespan of heavy transit vehicles.

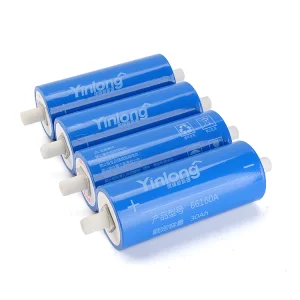

• High-Power Car Audio: Car audio competitors require massive instantaneous current peaks. The 66160 cylindrical cells (such as the Yinlong 40Ah and Toshiba SCiB prismatic profiles) provide fast peak discharges, maintaining system voltage during deep bass hits.
• Aerospace & eVTOL: In next-generation electric vertical takeoff and landing aircraft, safety is paramount. LTO's high resistance to thermal runaway and capability for high discharge rates during takeoff make it a key technology for aerospace research and development.
