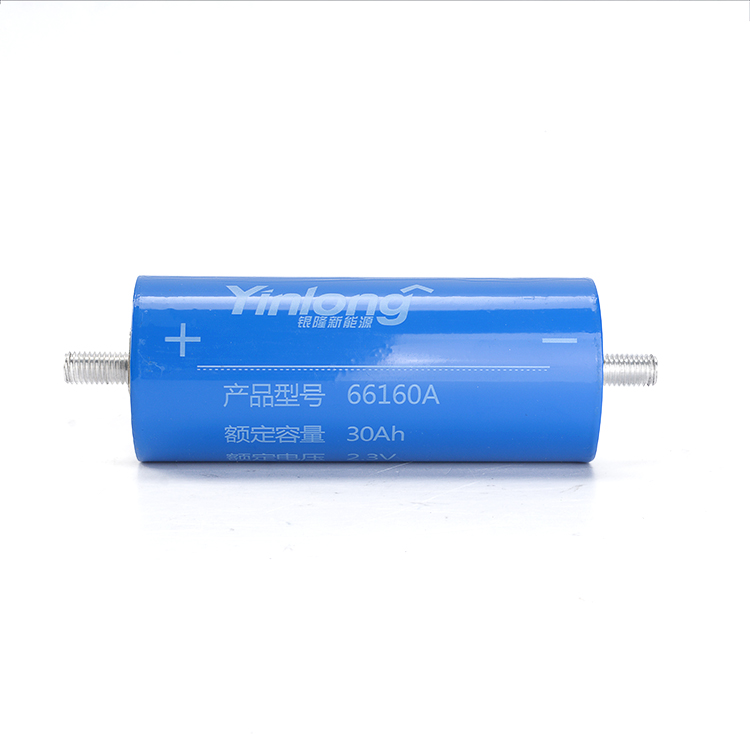

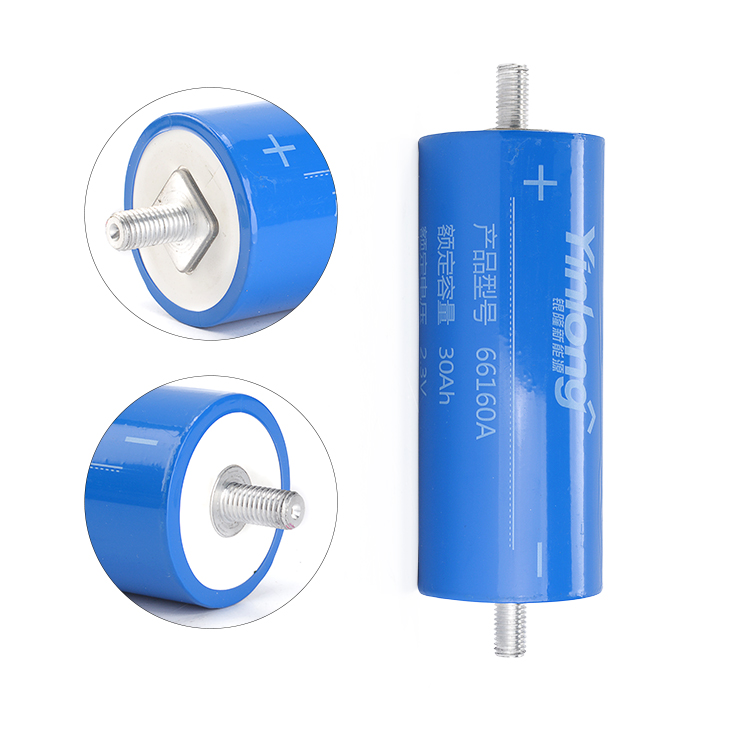

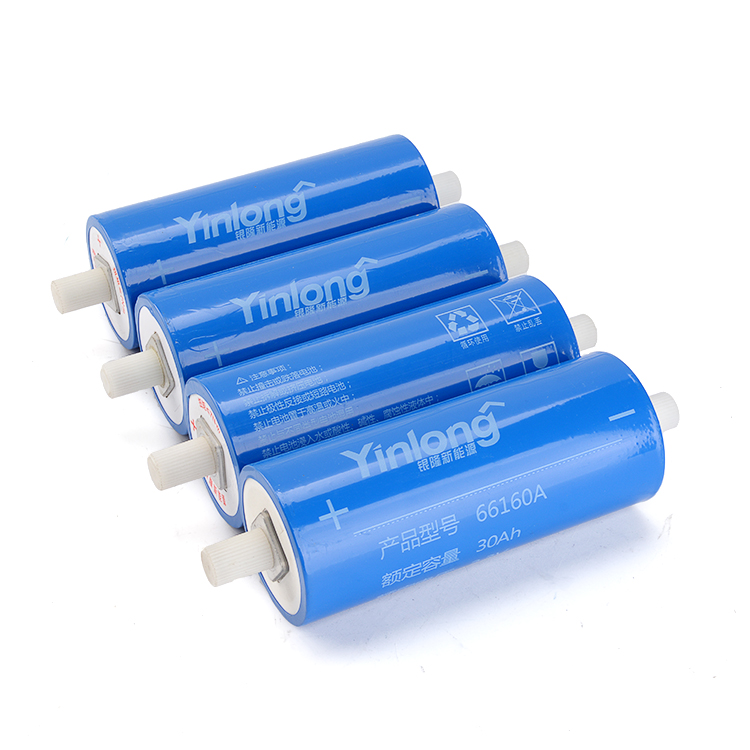

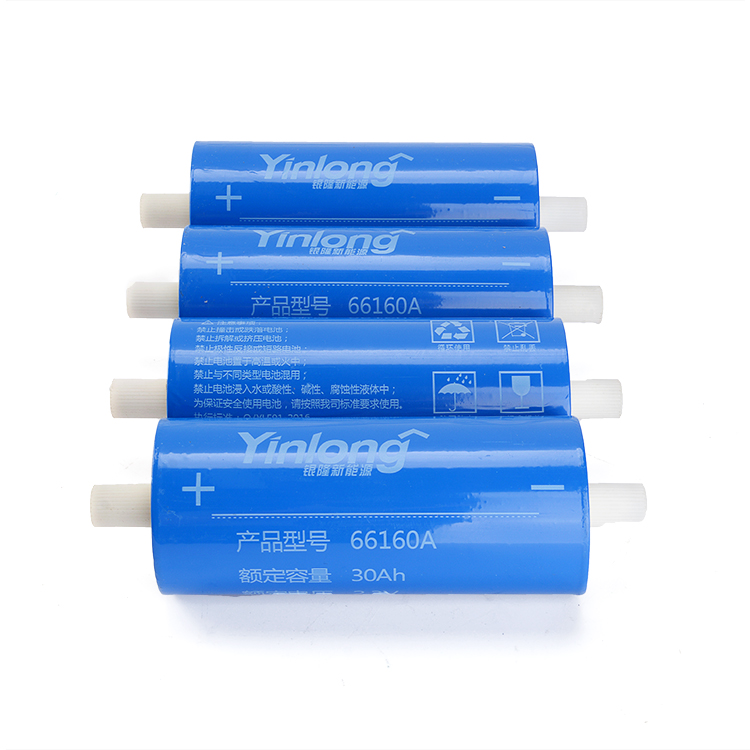

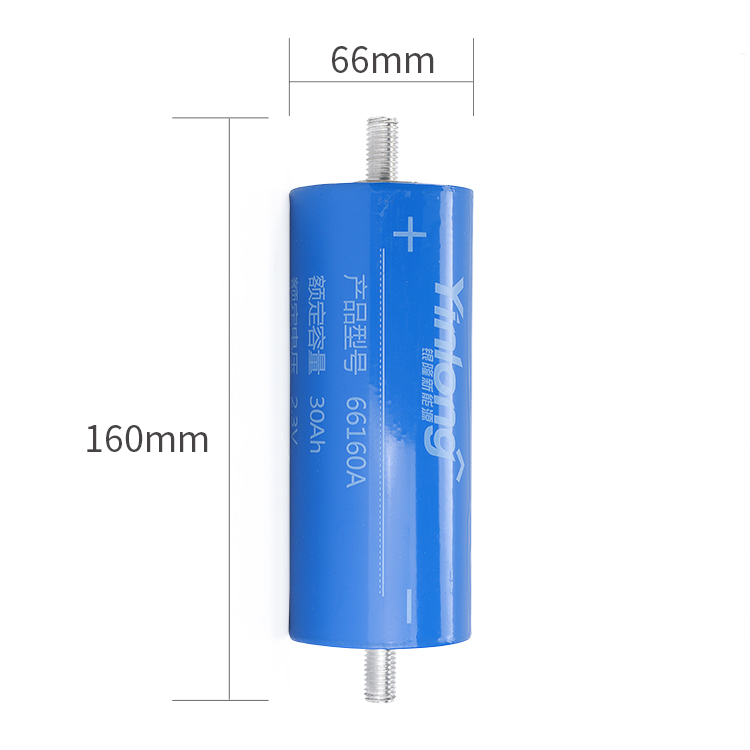

| Model | LTO66160A | |||
| Battery Type | LTO battery | |||
| Rechargeable | YES | |||
| Voltage | 2.3V | |||
| Capacity | 25Ah/30Ah/35Ah/40Ah/Customize | |||
| Internal resistance | 0.5mΩ | |||
| Charging limit voltage | 2.8V | |||
| Discharge cut off voltage | 1.6V | |||
| Cycle life | 25000 | |||
| Customize service | Available | |||
LTO (Lithium Titanate) batteries offer high safety standards, an extremely long cycle life of up to 25,000 cycles, excellent thermal stability, and rapid charging and discharging capabilities.
The nominal voltage of the cell is 2.3V. The charging limit voltage is 2.8V, and the discharge cut-off voltage is 1.6V.
Standard capacities include 25Ah, 30Ah, 35Ah, and 40Ah. In addition, customized capacity solutions are available to match specific application needs.
Yes, LTO chemistry allows for ultra-fast charging due to its low internal resistance (0.5mΩ) and stable structure, preventing dendrite formation during high-rate charging.
With a cycle life of 25,000 cycles, LTO cells last significantly longer than traditional Lithium-ion cells (typically 500-2,000 cycles) or LiFePO4 cells (typically 2,000-5,000 cycles).
Yes, customization service is available. Batteries can be configured and designed according to requirements, including specific arrangements, connectors, and BMS integrations.
