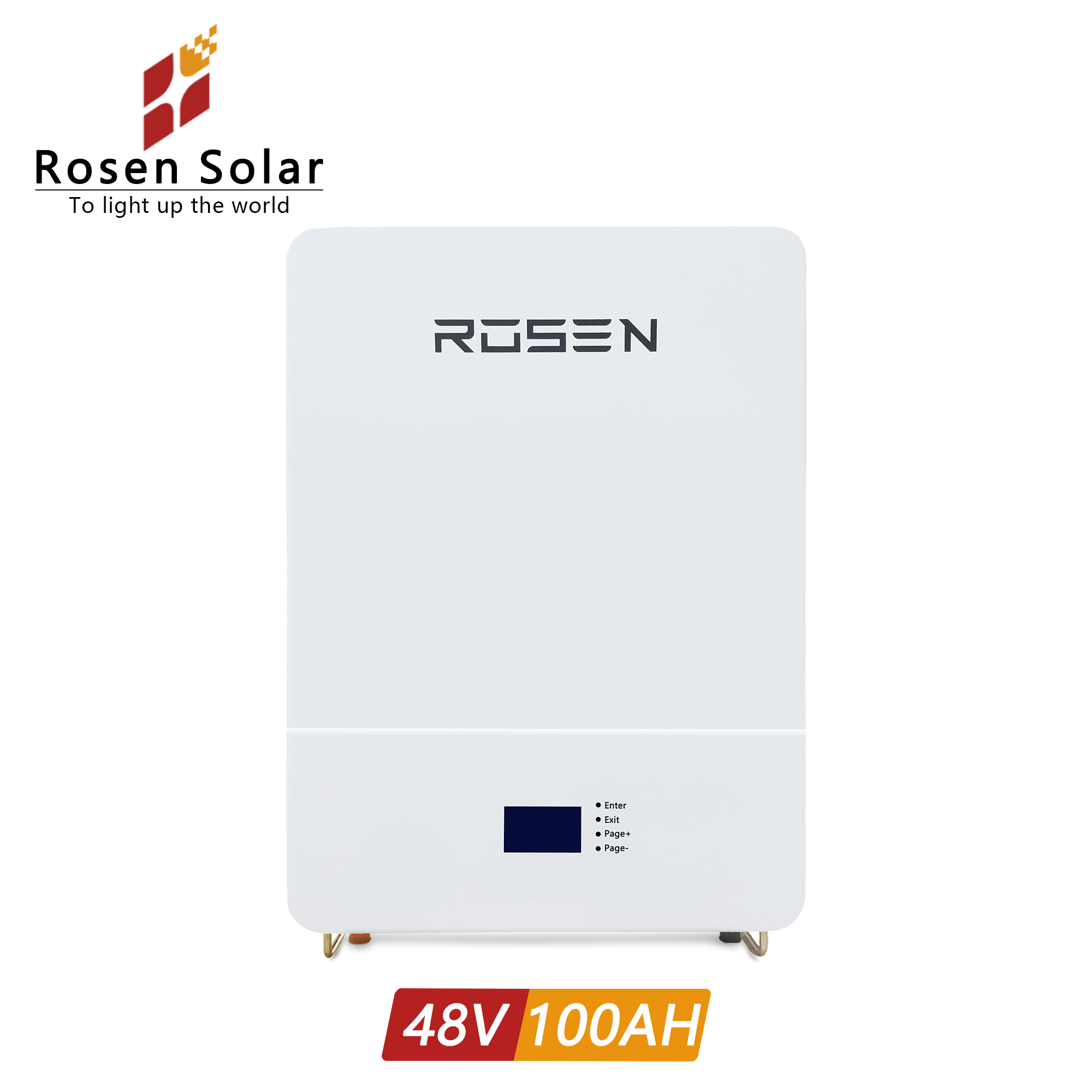

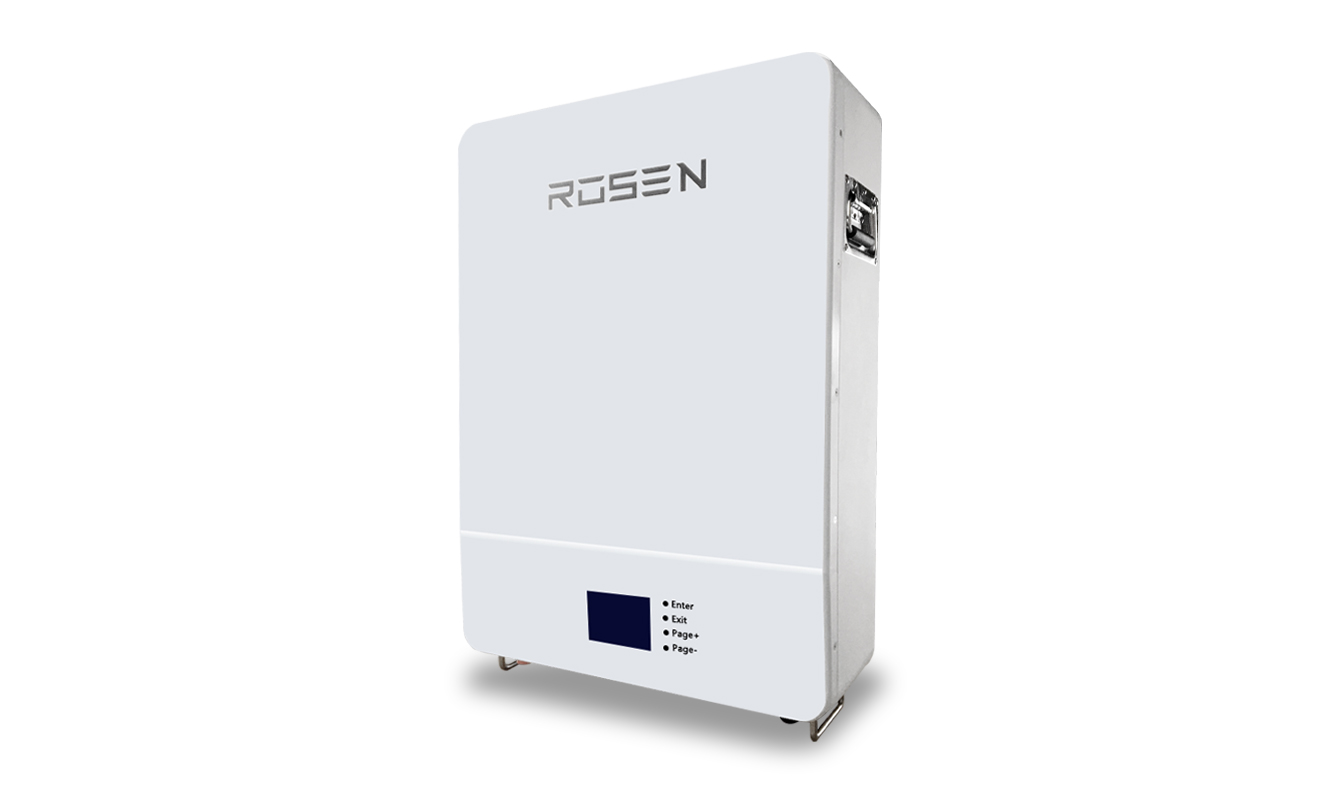

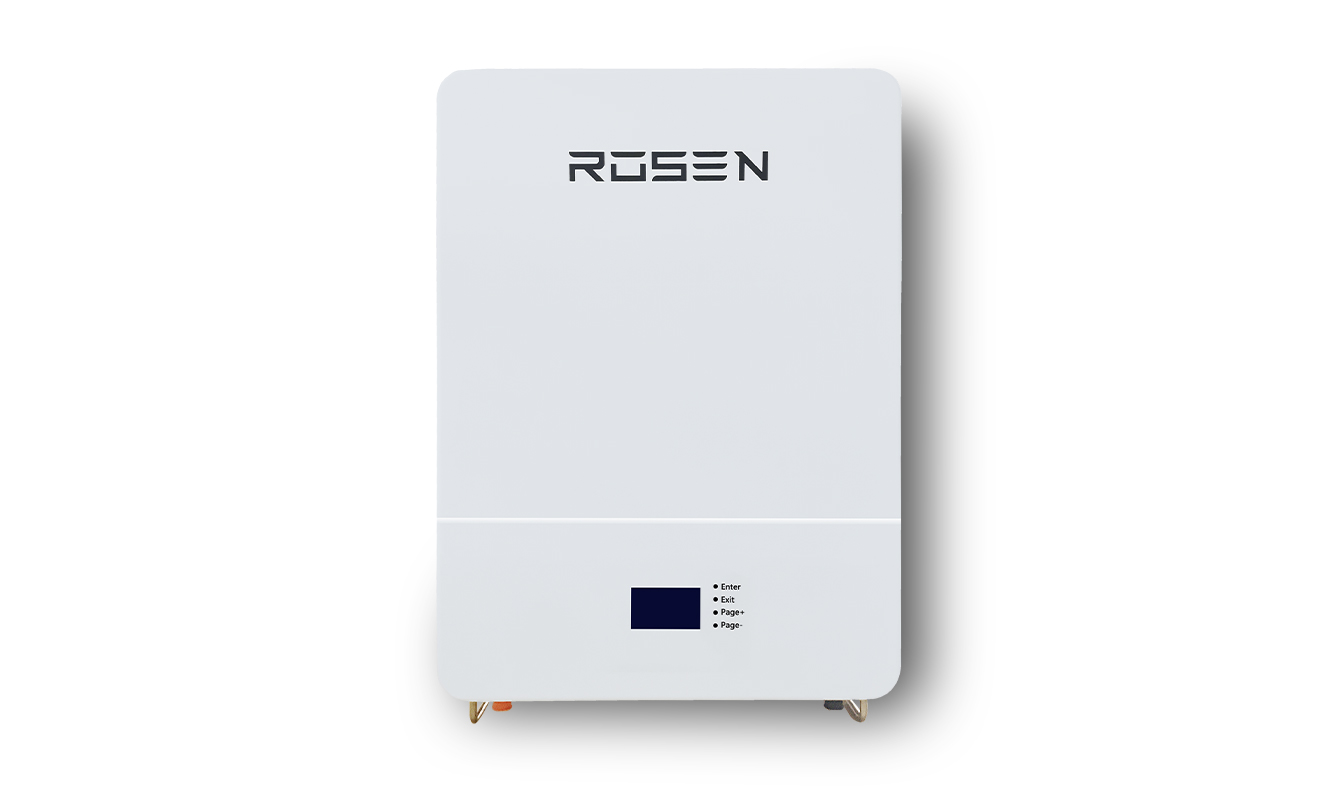

This Lithium battery has a compact design, LCD screen, convenient setting buttons, bluetooth Monitor on your smartphones, and cables & accessories ready for installation. To welcome the world cooperation we accept OEM with your logo design!

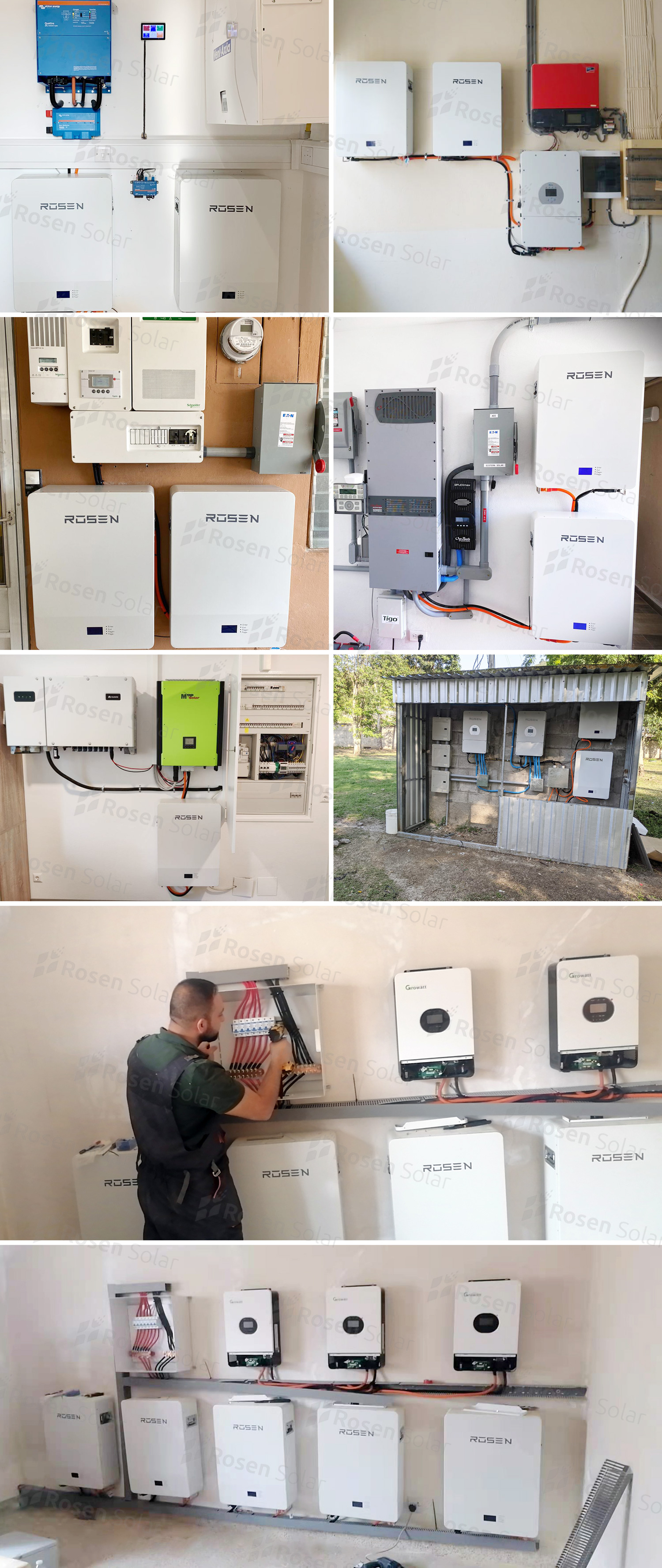

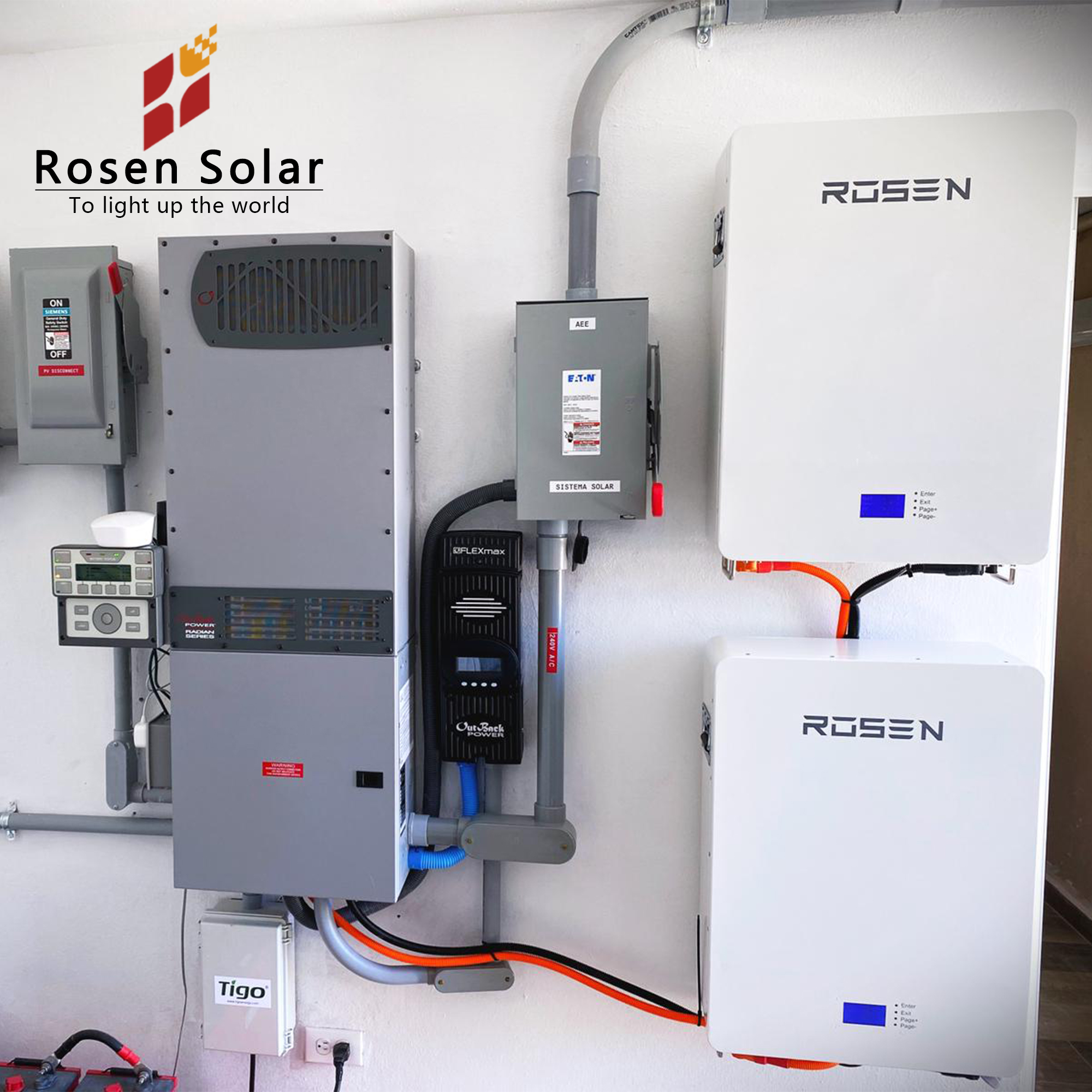

Lithium Ion Powerwall series are widely used in Solar Systems for residential and commercial use. With more than 6000 times deep cycle, up to 90% DOD and phosphate battery Cell, Powerwall has won global approval!

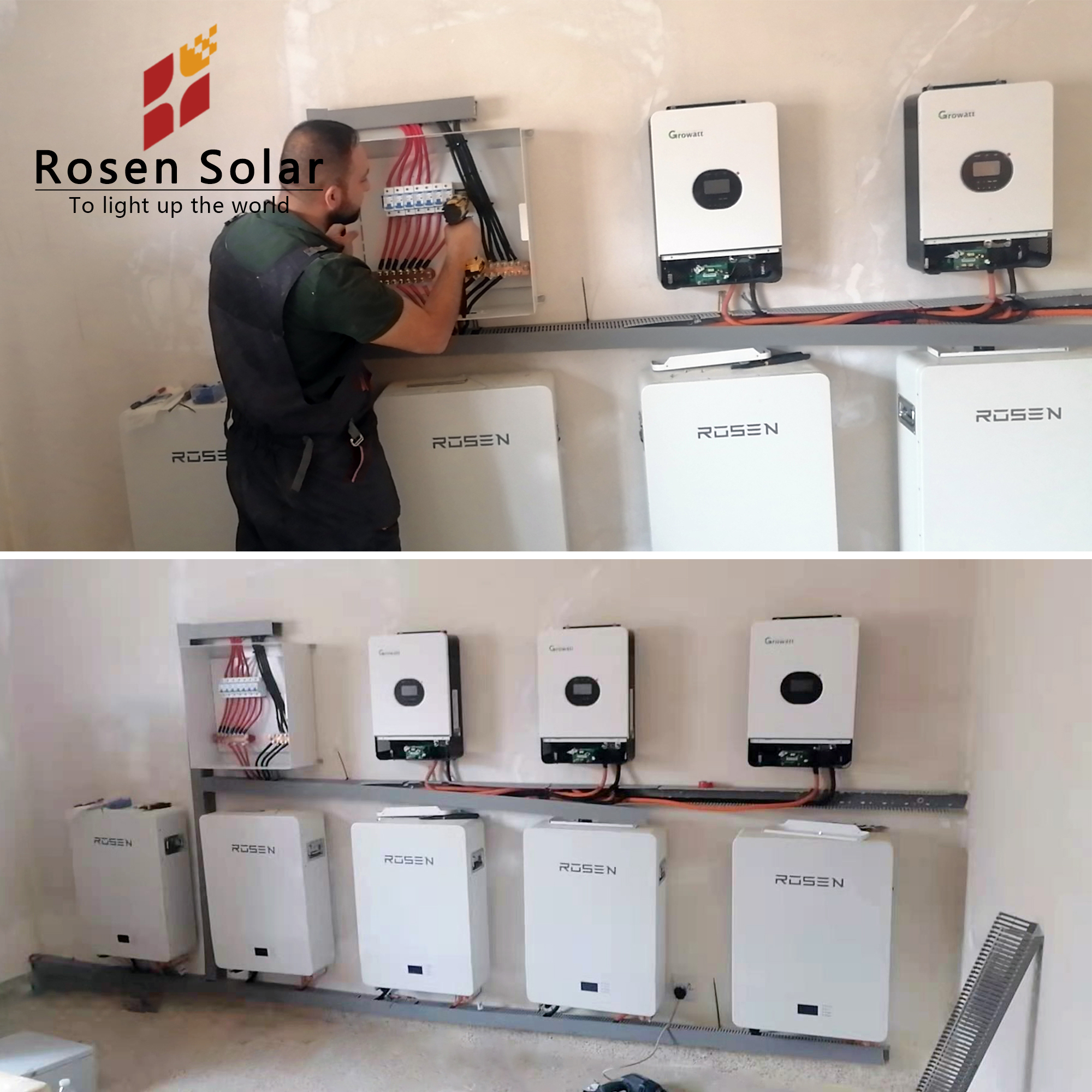

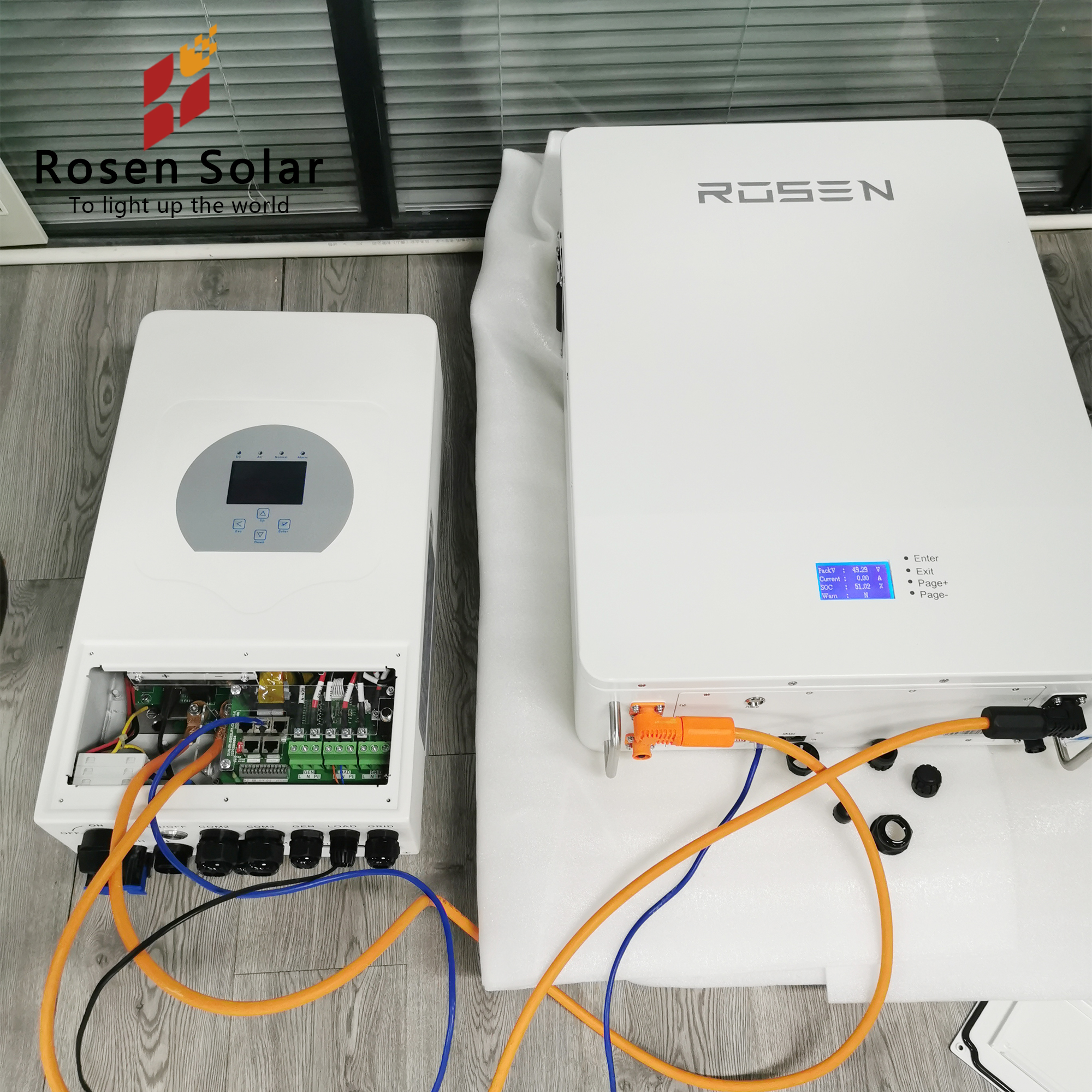

Powerwall can be installed in parallel with combiner box for protection, with its integrated BMS communication protocol to comprehensive hybrid and off grid inverters!
| Type | Module | Powerwall | |||
|---|---|---|---|---|---|
| Model | LFP48V50AH | LFP48V100AH | LFP48V150AH | LFP48V200AH | |
| Battery Capacity [Ah] | 50Ah | 100Ah | 150Ah | 200Ah | |
| Nominal Battery Energy [kwh] | 2.4 | 4.8 | 7.2 | 9.6 | |
| Max Discharge Current [A] | 50 | 100 | 150 | 200 | |
| Net Weight | 35 | 50 | 75 | 90 | |
| Dimension [H*W*D, mm] | 500*495*185 | 680*495*185 | 680*495*185 | 680*495*185 | |
| Operating Temperature Range | -20 ~ 50 ℃ | ||||
| Life Cycles | >6000 | ||||
| Nominal Voltage [V] | 48Vdc | ||||

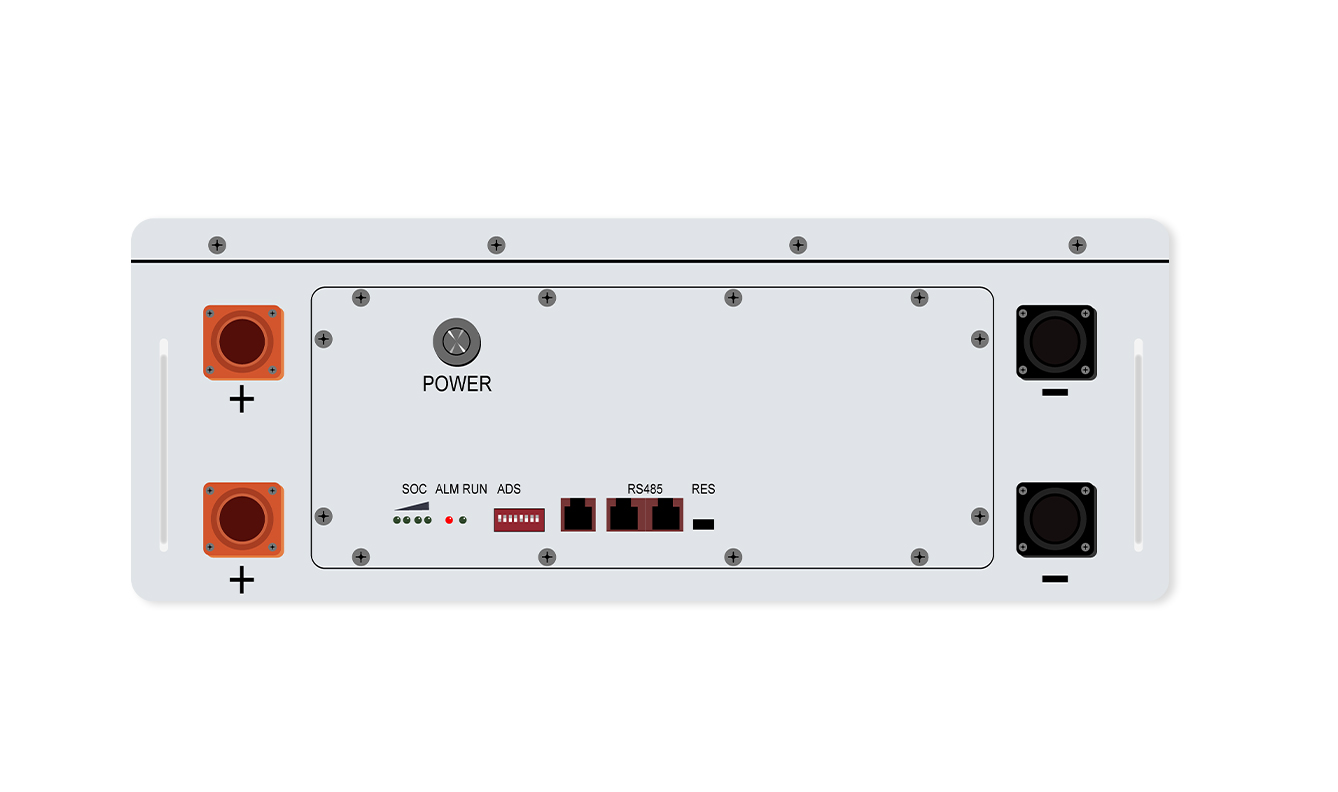

| Communication | CAN/RS485/DRY CONTACT | ||||
| Certificate & Safety Standard | TUV / CE / EN62619 / IEC62040 / UN38.3 | ||||
| Warranty | 10 Years | ||||
| Alarms | Battery Operation/Out of Battery/System fault | ||||
| Pros | Applied in off-grid and hybrid system, Compact Design, Modular Expansion | ||||
| Monitoring & Protection | With BMS protection in each Module, and breaker embedded in the system | ||||
