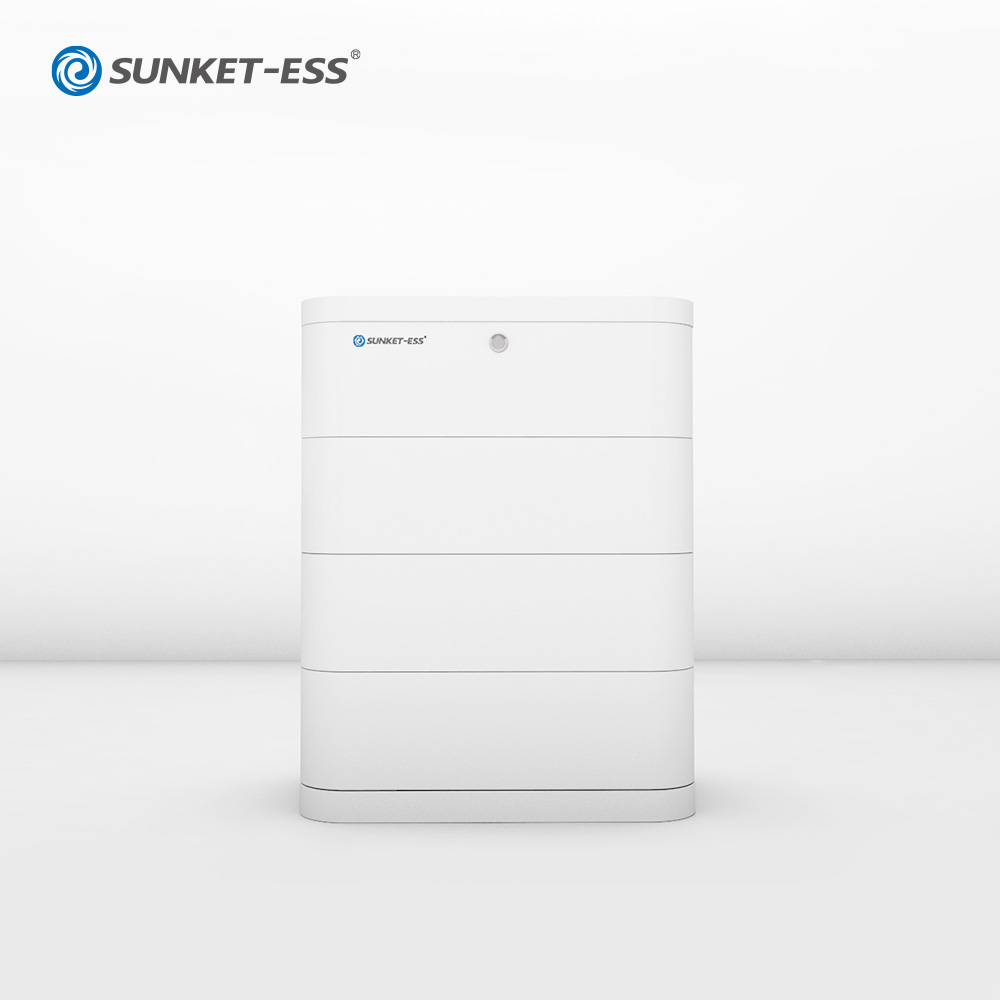

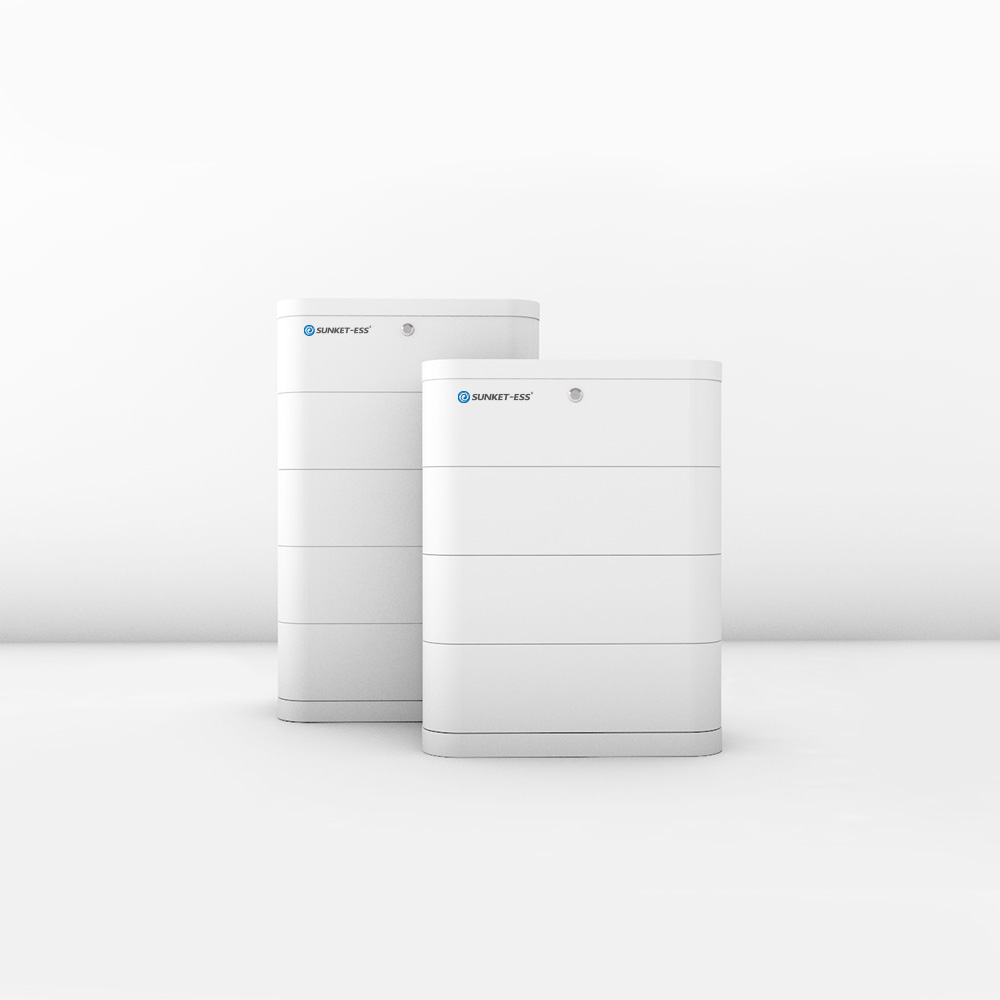

The LFP 9kWh/HV home battery is modular in 2.88 kWh increments, providing a capacity range of 8.64kWh-28.8kWh per stack. This also allows for easy servicing and future expansion. With continuous output at up to 14.4kW, true full-home backup is here.
The lithium iron phosphate battery (LiFePO4 or LFP) is the safest of the mainstream lithium battery types. A single LFP cell has a nominal voltage of 3.2V. A 57.6V LFP battery consists of 18 cells connected in series. LFP is the chemistry of choice for very demanding applications.
| Module Type | LFP 9kWh | LFP 12kWh | LFP 15kWh | LFP 18kWh | LFP 21kWh | LFP 24kWh | LFP 27kWh | LFP 30kWh |
| Usable Energy | 8.64kWh | 11.52kWh | 14.40kWh | 17.28kWh | 20.16kWh | 23.04kWh | 25.92kWh | 28.80kWh |
| Battery Module | LFP 3000 / HV : 57.6V 50Ah | |||||||
| Number of Modules | 3 | 4 | 5 | 6 | 7 | 8 | 9 | 10 |
| Nominal Voltage | 172.8V | 230.4V | 288V | 345.6V | 403.2V | 460.6V | 518.4V | 576V |
| Operating Voltage Ranges | 135-197.1V | 180-262.8V | 225-328.5V | 270-394.2V | 315-459.9V | 360-525.6V | 405-591.3V | 450-657V |
| Nominal Dis-/Charge Current | 25 / 50A | |||||||
| Max. Charge Voltage | 197.1V | 262.8V | 328.5V | 394.2V | 459.9V | 525.6V | 591.3V | 657V |
| Weight | 102kg | 131kg | 160kg | 189kg | 218kg | 247kg | 276kg | 305kg |
| Dimension(mm) | 670*330*697 | 670*330*855 | 670*330*1013 | 670*330*1171 | 670*330*1329 | 670*330*1487 | 670*330*1645 | 670*330*1803 |
| Safety | CE, UN38.3, IEC62619, IEC63056, IEC62477 | |||||||
Wall Mounted Battery Solution
48v/51.2v
5kWh (100AH) / 10kWh (200AH)
Rack Mounted Battery Solution
51.2V
5kWh-80kWh

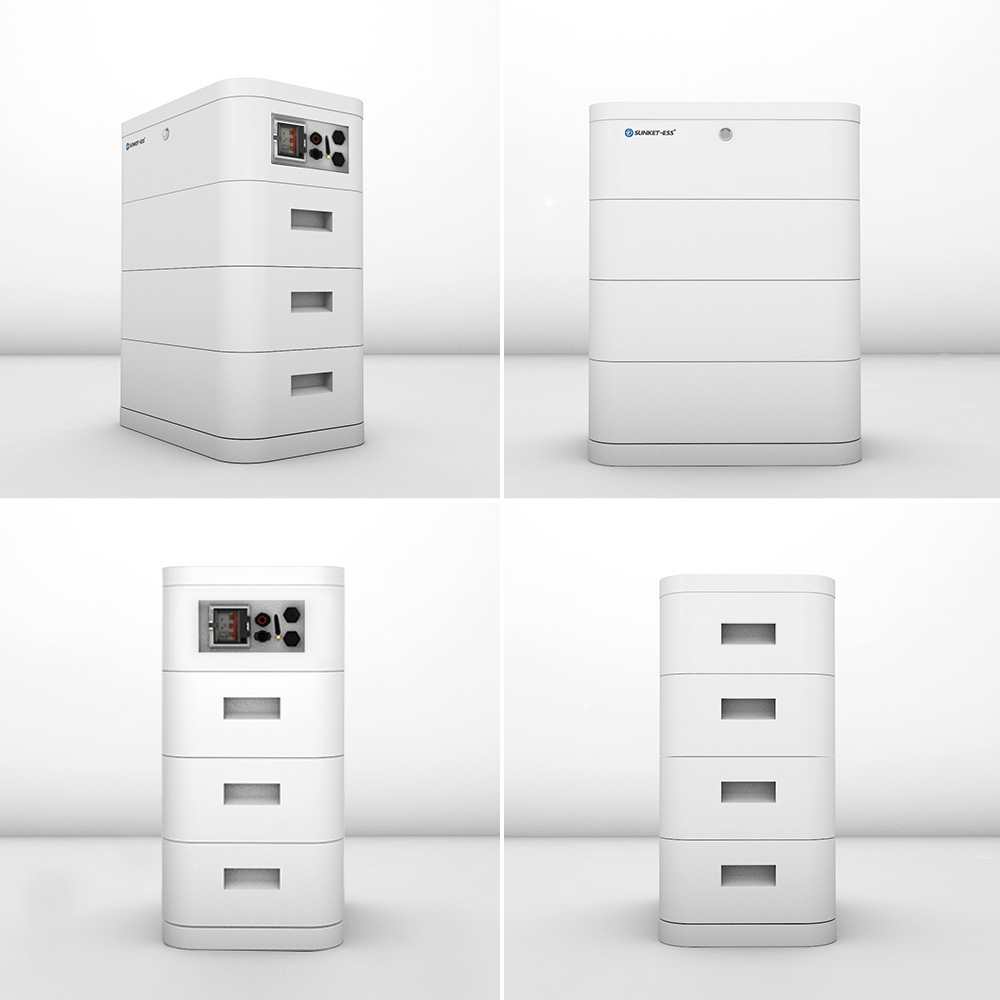

Stack Mounted High Voltage Battery Solution
Voltage 172.8V-576V
9kWh-30kWh
The battery is modular in 2.88 kWh increments, allowing a capacity range of 8.64kWh up to 28.8kWh per stack. This modularity ensures easy maintenance and simplifies future capacity upgrades.
LFP (LiFePO4) is the safest chemistry among mainstream lithium batteries. It delivers high round-trip efficiency, superior energy density, support for fast charge/discharge currents, and reliable performance even in rugged deficit operating conditions.
Depending on the configuration, the nominal voltage ranges from 172.8V (for 3 modules) up to 576V (for 10 modules), with operating voltage windows stretching between 135V and 657V.
Our battery modules comply with major international quality and safety certifications including CE, UN38.3, IEC62619, IEC63056, and IEC62477.
Yes, the stack-mounted modular design allows you to add additional 2.88 kWh battery modules to scale up your storage capacity up to 30kWh per stack as your power backup requirements grow.
