| Specification Parameter | ME-GLE-BW10K Detail | ME-GLE-B16K Detail |
|---|---|---|
| Performance Specifications | ||

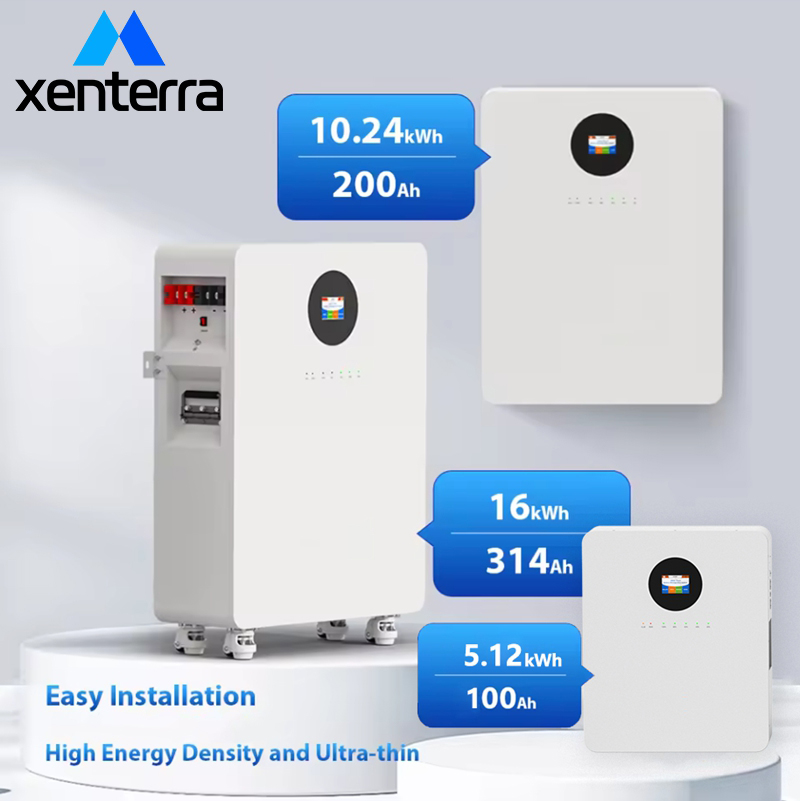

| Model | ME-GLE-BW10K | ME-GLE-B16K |
| Rating Voltage | 51.2V | 51.2V |
| Cell model / Configuration | 3.2V 100Ah / 16S2P | 3.2V 314Ah / 16S1P |
| Rating Capacity | 200Ah | 314Ah |
| Rated Energy (kWh) | 10.24kWh | 16.07kWh |
| Max. Charge/Discharge Current (A) | 200A | 200A |
| Voltage Range (Vdc) | 44.8V ~ 58.4V | |
| Scalability | Up to 15 parallel connection | |
| Communication | CAN / RS485 / RS232 / Bluetooth / Wi-Fi | |
| Cycle Life | ≥ 8000 times @ 80% DOD | |
| Design Life | ≥ 15 Years (25°C) | |
| Display Usage | LCD color touch display | |
| Mechanical Specifications | ||
| Weight (Net/Gross) (KG) | 99.5kg | 134kg |

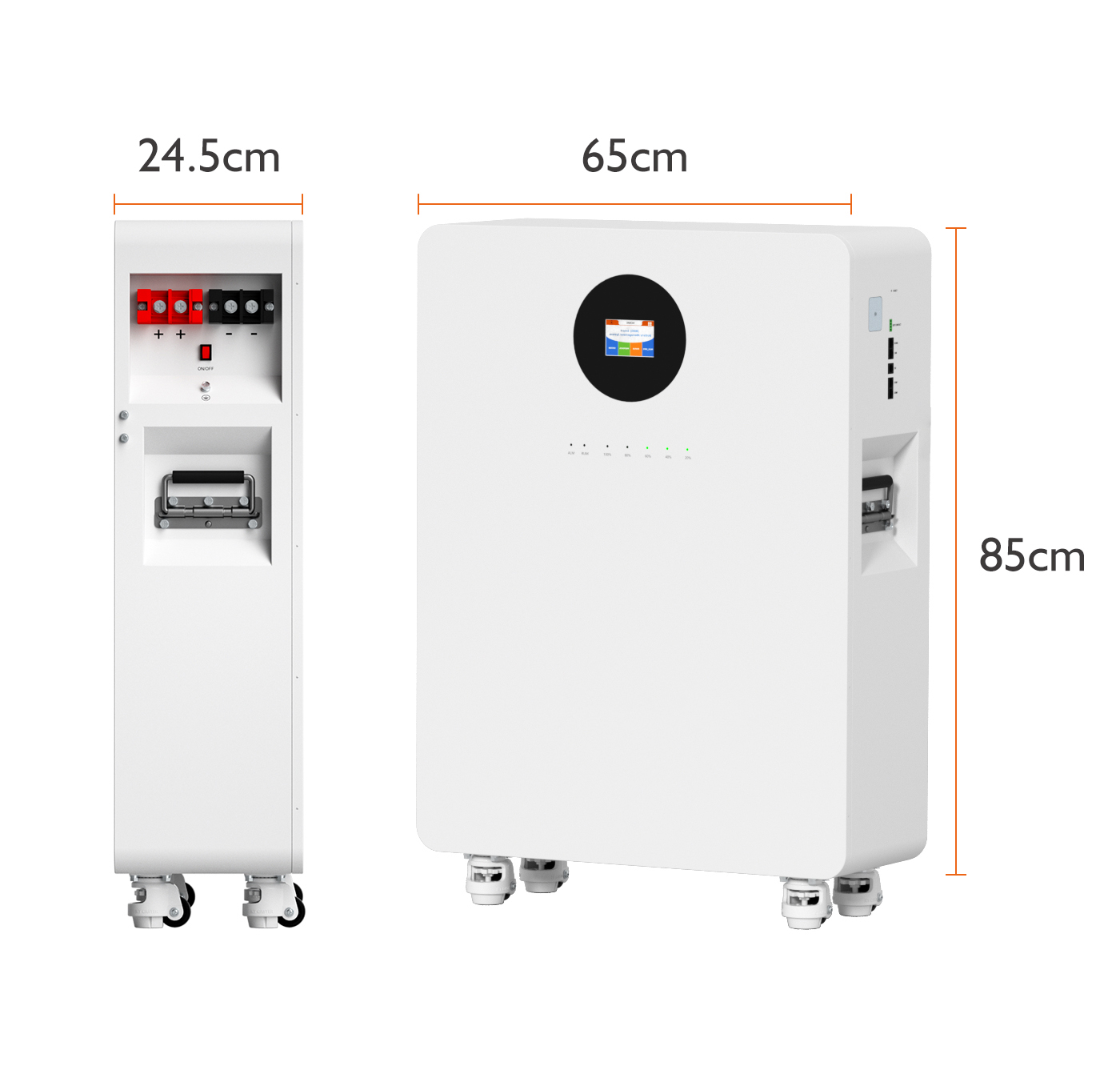

| Dimension (W/D/H) (mm) | 850 x 650 x 167mm | 850 x 650 x 245mm |

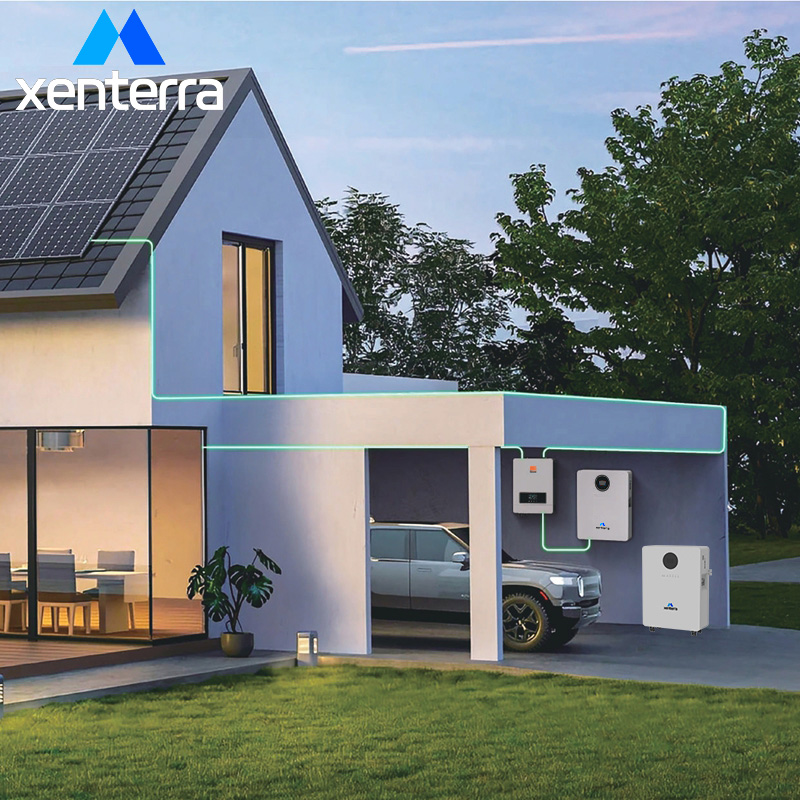

| Installation Mode | Wall Mounted | |
| IP Grade | IP20 / IP54 (optional) | |
| Security and Certification | ||
| Safety (Pack) | UN38.3, MSDS, IEC62619(CB), CE-EMC | |
| Safety (Cell) | UN38.3, MSDS, IEC62619, CE, UL1973, UL2054 | |
| Protection | Smart BMS, Breaker and Aerogel Fireproofing (optional) | |
| Environmental Specifications | ||
| Operating Temperature (°C) | Charge: 0°C ~ 55°C ; Discharge: -20°C ~ 60°C | |
| Altitude (m) | ≤ 3000m | |
| Humidity | ≤ 95% (Non-condensing) | |
