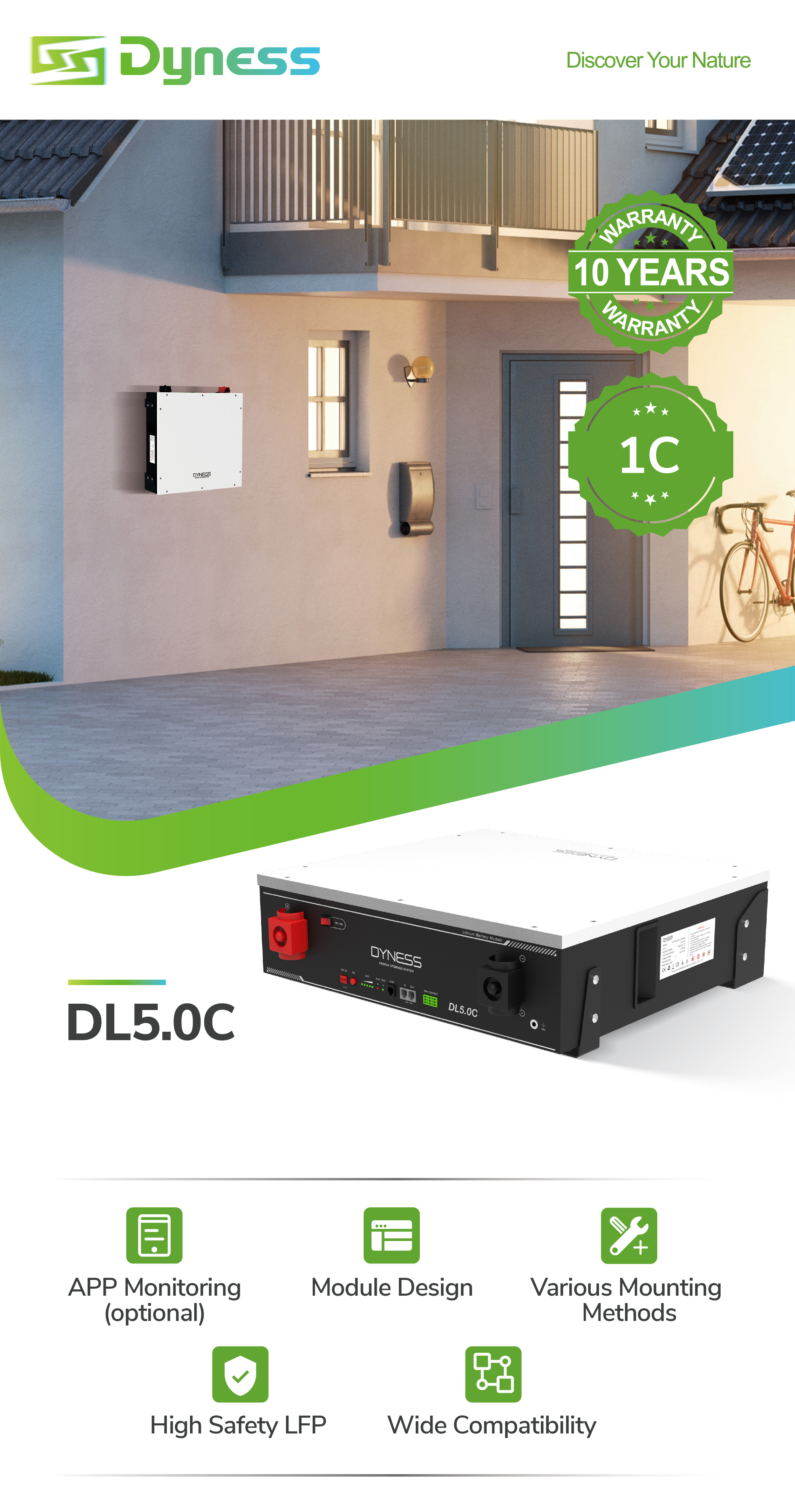

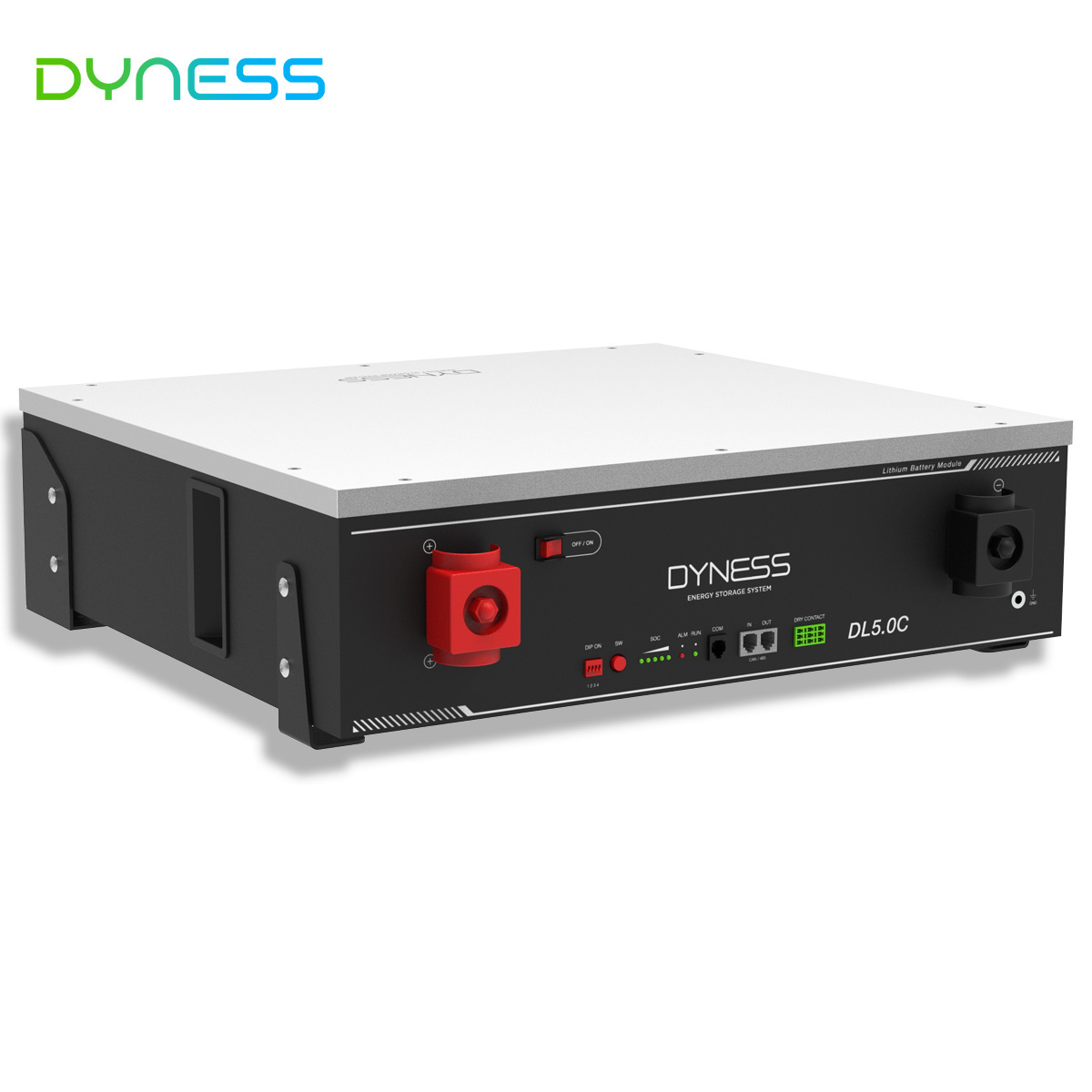

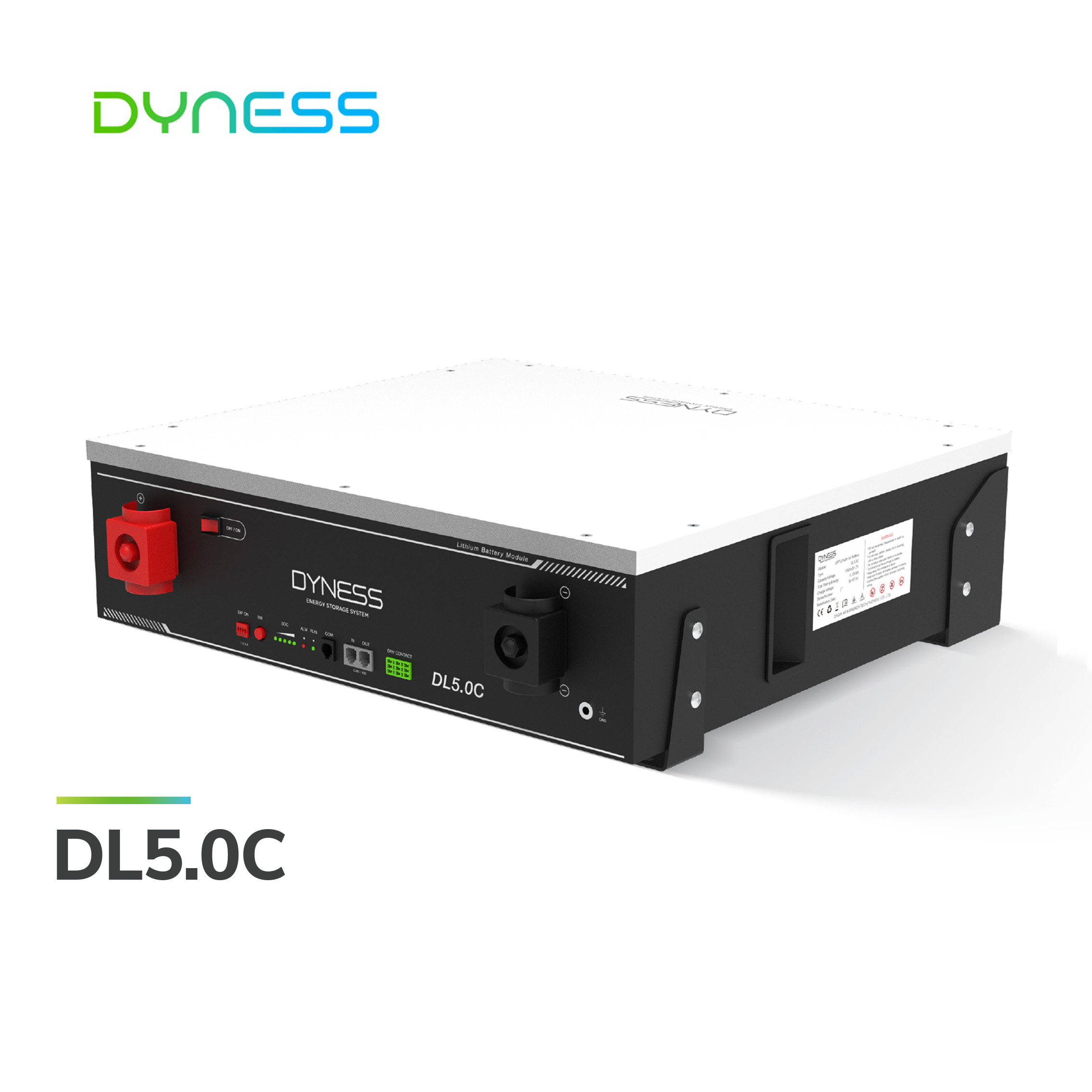

Lithium Titanate Battery Lithium Ion Batteries 48 v Solar Solar Lithium Battery

Send Inquiry

Product Description

Specification

Model	DL5.0C
Battery TYPE	LIFEPO4
Nominal Battery Energy	5.12kwh
Nominal Capacity	100Ah
NominalVotage	51.2V
Operating Voltage	44.8~57.6V
Recommended C Rate	0.5C
Maximum Discharge C Rate	1 C
Recommended Charge/Discharge Current	50A
Max.Power Charge/Discharge Current	75A
Peak Power Charge/Discharge Current	110A(15s)
Depth ofDischarge(DOD)	90%
Net Weight	54kg

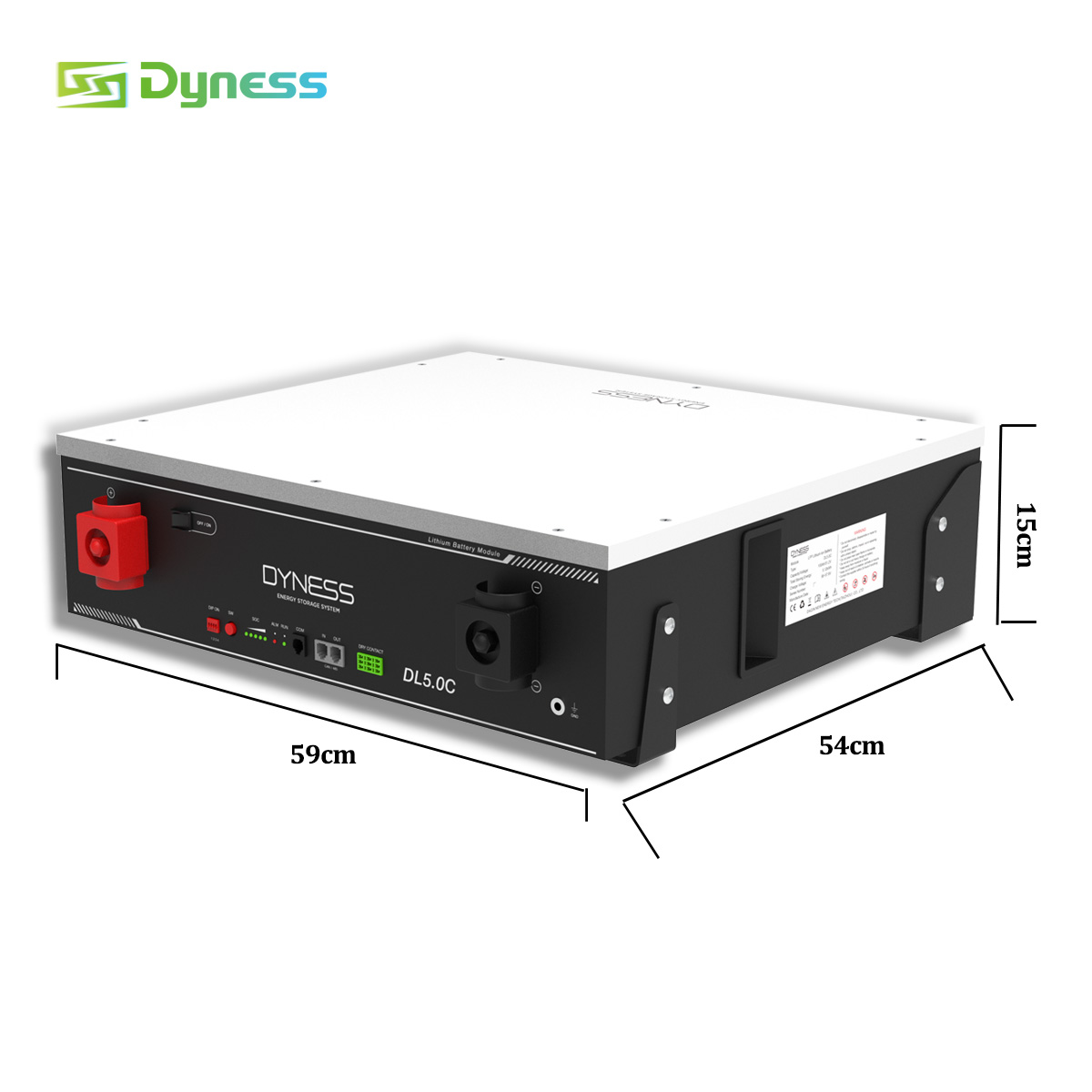

Dimension[WDH]	558545150mm
ChargingTemp.Range	0~55°C
Discharging Temp.Range	-20~55°C

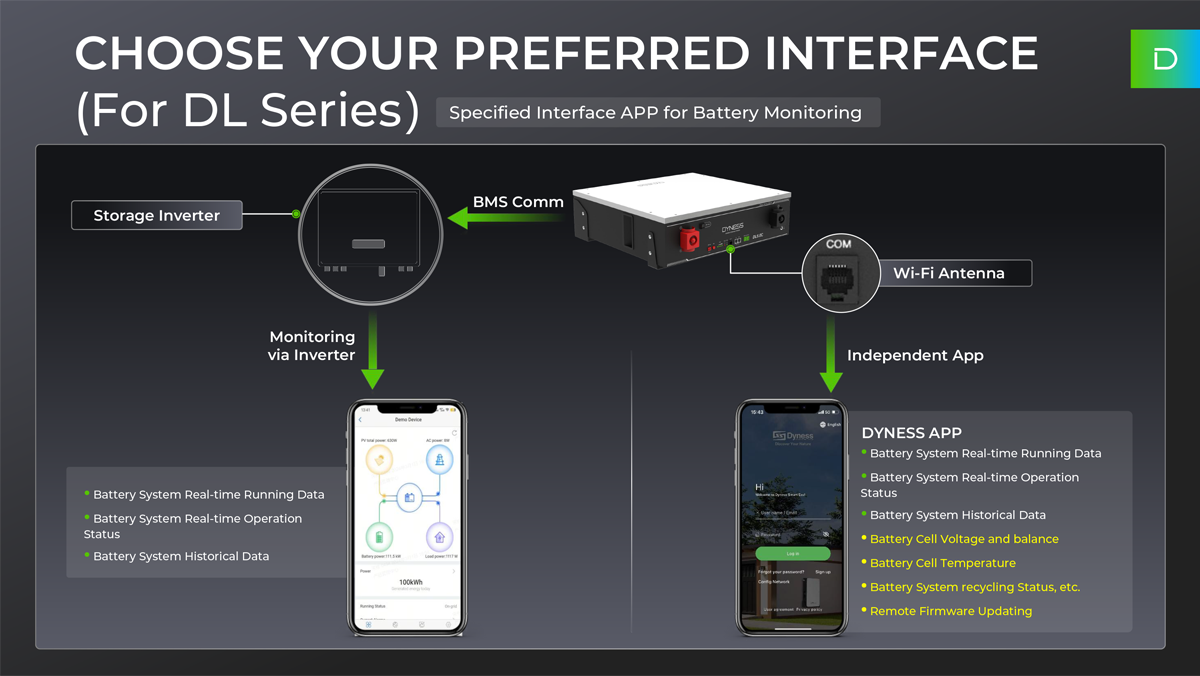

Communication	CAN/RS485/RS232
Cycle Life	≥6000 Cycles
Protection Level	IP20
Expansion	up to 50 units in parallel
Pros	Can be used in both off-grid and hybrid setups, compact design

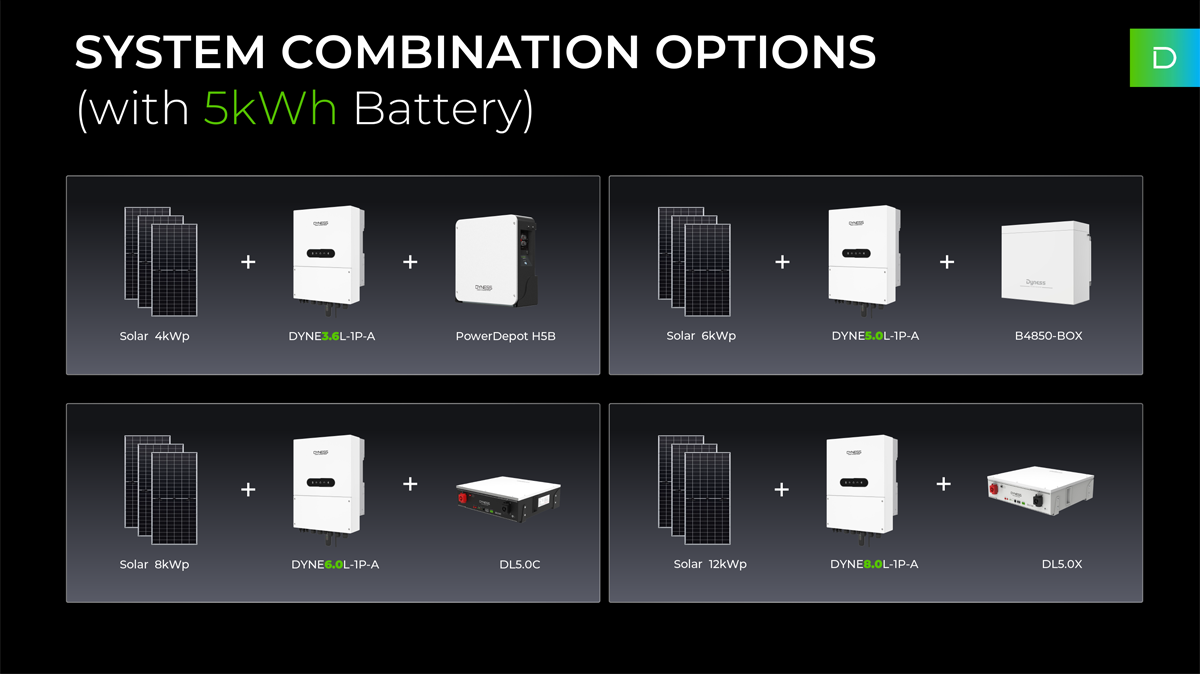

Compatible Inverters	Sma/Victron/Ingeteam/Delios/Goodwe/solis/DEYE etc
Certification & Safety Standard	UN38.3/CE-EMC/IEC62619/CE1-021

Frequently Asked Questions

Q What is the chemistry and capacity of the DL5.0C battery?

The DL5.0C is a LiFePO4 (Lithium Iron Phosphate) battery with a nominal capacity of 100Ah and a total nominal energy of 5.12kWh.

Q How many cycles does the DL5.0C battery offer?

This battery is designed for longevity, providing a cycle life of ≥6000 cycles under recommended operation standards.

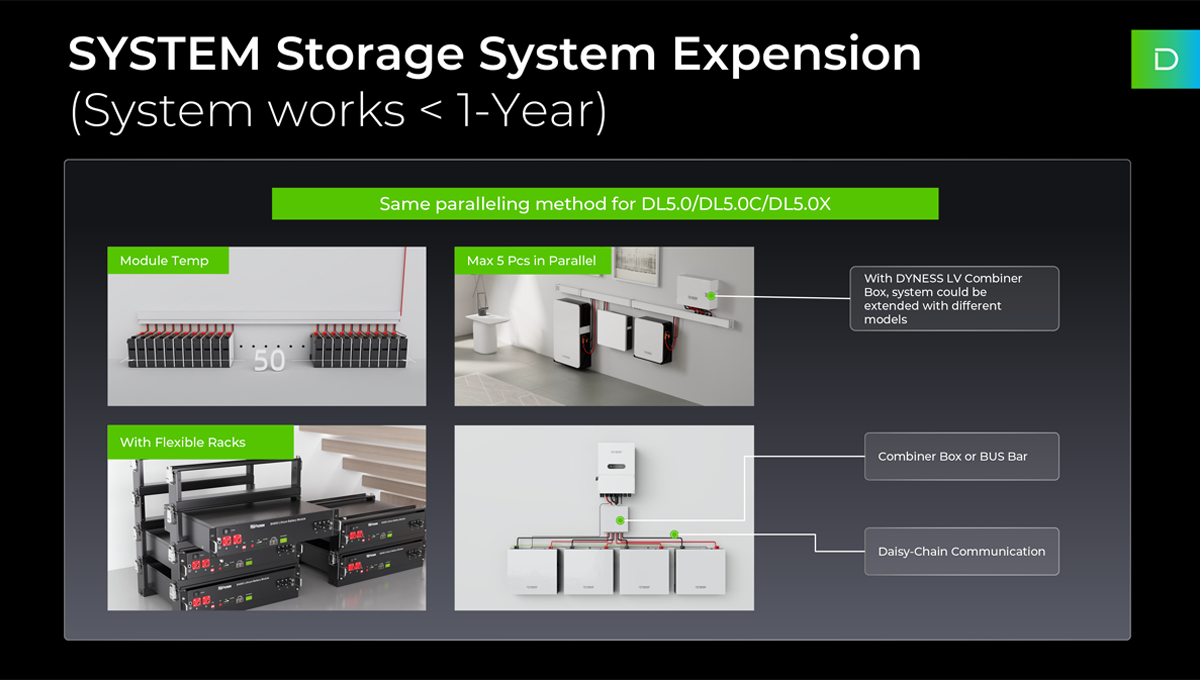

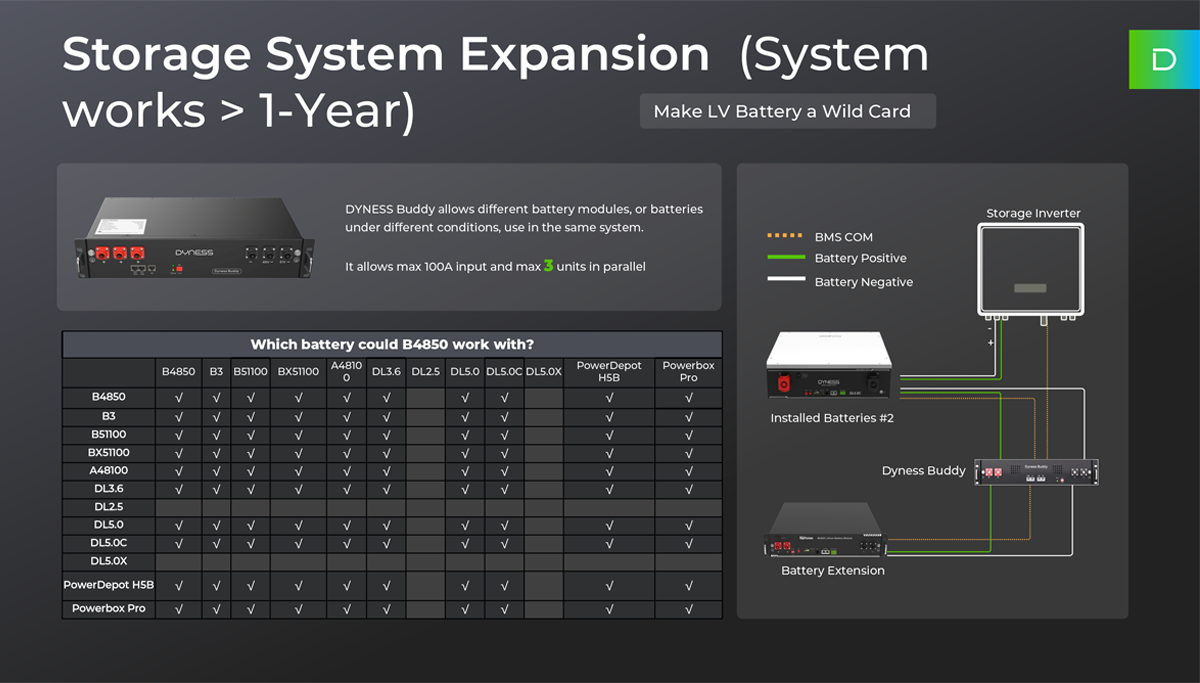

Q Can I expand my energy storage capacity in the future?

Yes, the DL5.0C battery supports parallel connection expansion, allowing you to connect up to 50 units in parallel for larger capacity requirements.

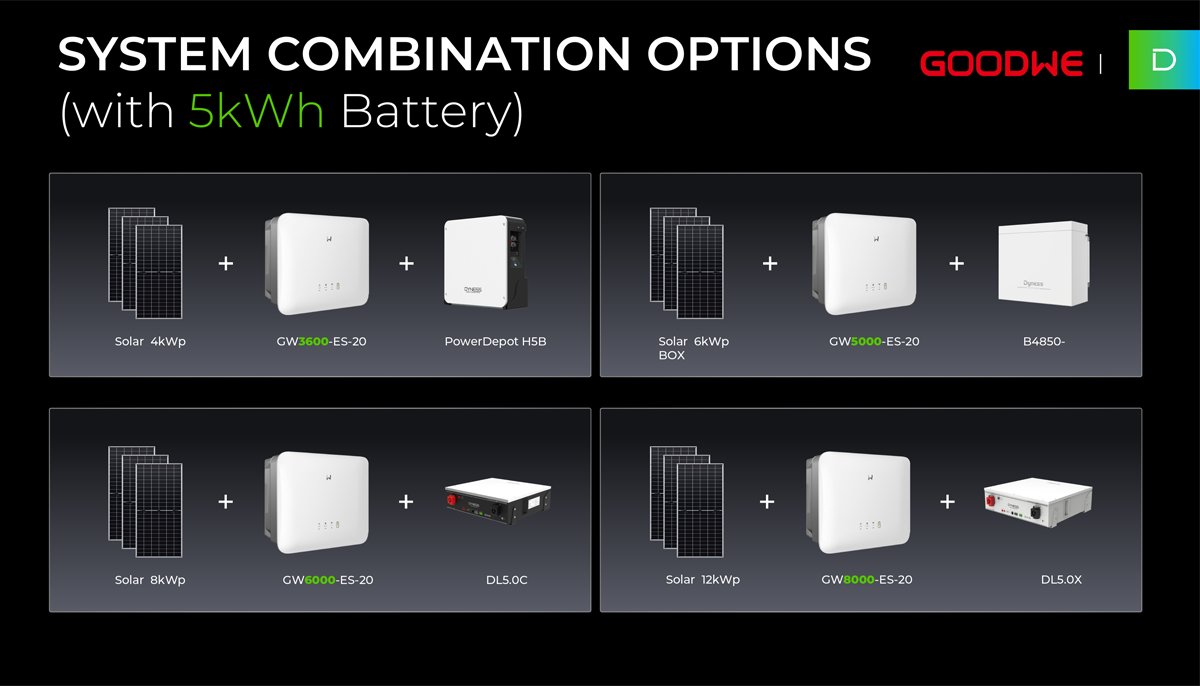

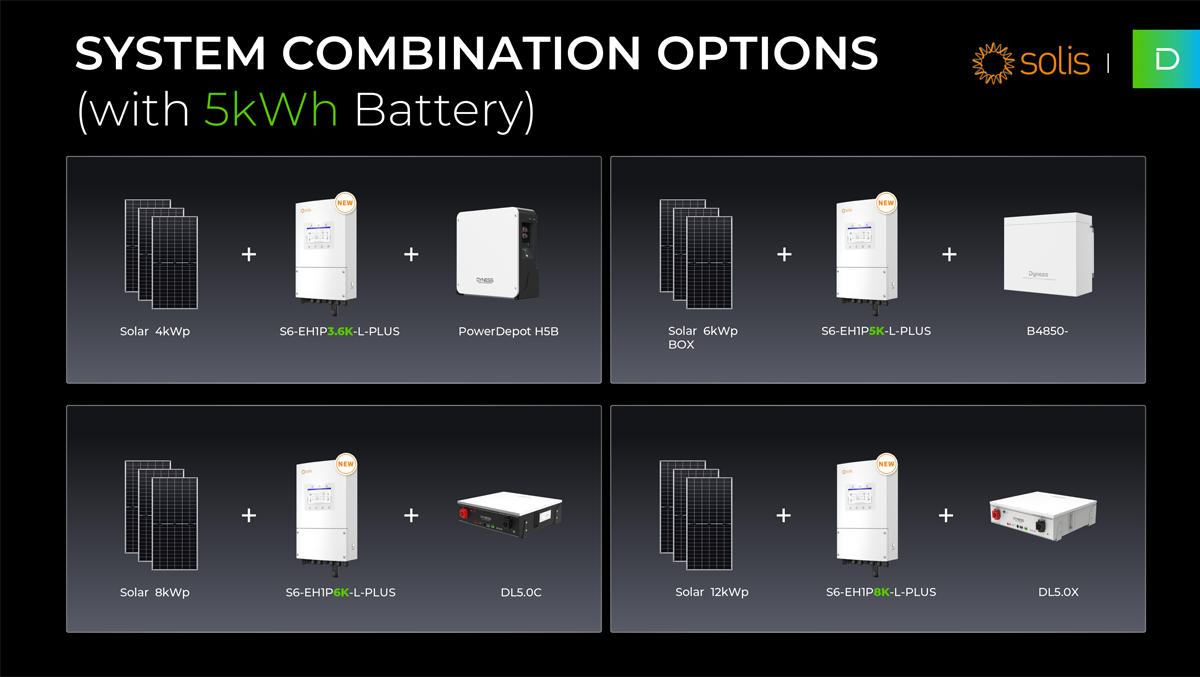

Q Which inverters are compatible with the DL5.0C battery?

The battery is highly compatible with most leading inverters on the market, including SMA, Victron, Ingeteam, Delios, Goodwe, Solis, and DEYE.

Q Can this battery be used in off-grid solar systems?

Yes, the DL5.0C is versatile and optimized for seamless integration in both off-grid and hybrid power setups.

Q What safety certifications does this battery have?

The DL5.0C meets international safety and quality standards, certified under UN38.3, CE-EMC, IEC62619, and CE1-021.
