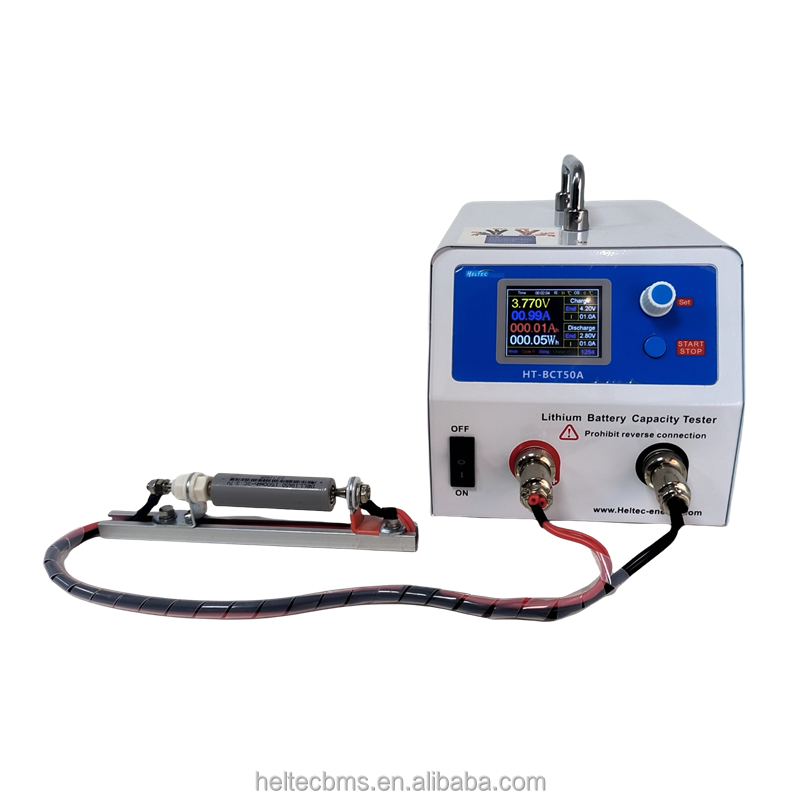

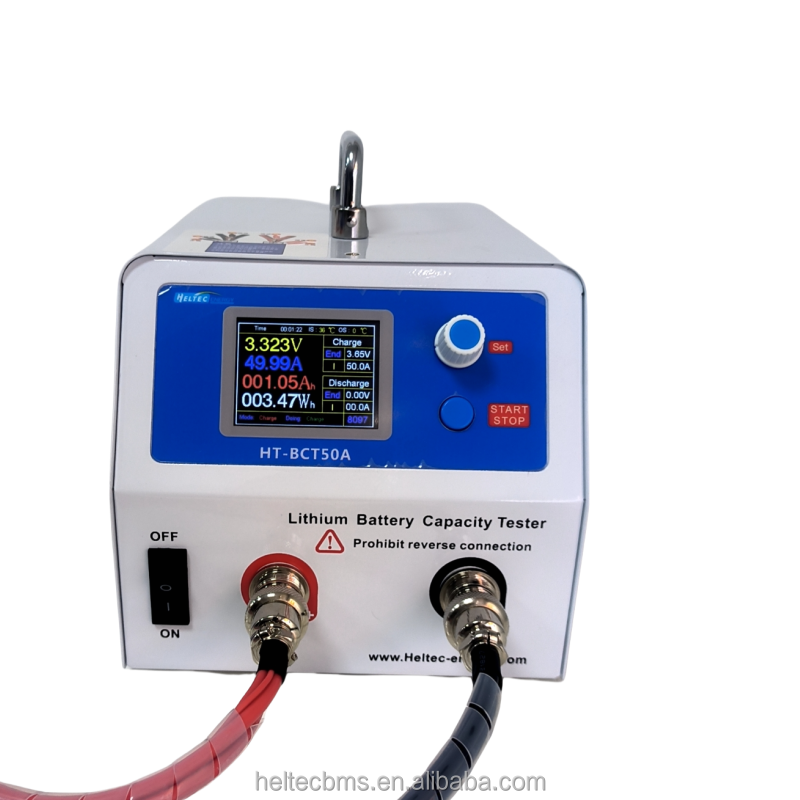

| Model | HT-BCT50A |
| Power | AC200-240V 50/60HZ (If you need 110V, please inform us in advance) |
| Charging range | 0.3-5V/0.3-50A Adj, CC-CV |
| Discharge range | 0.3-5V/0.3-50A Adj, CC |
| Work step | Charge/Discharge/Rest time/Cycle 9999 times |
| Auxiliary functions | Voltage balancing(CV Discharge) |
| Protective function | Battery overvoltage/Battery reverse connection/Battery disconnection/Fan not running |
| Calibration equipment | V: Fluke 8845A, A: Gwinstek PCS-1000I |
| Accuracy | V±0.1%, A±0.1%, (The accuracy guarantee time is within one year from the date of purchase) |
| Cooling | Cooling fans open at 40°C, protected at 83°C (please check and maintain the fans regularly) |
| Working environment | 0-40°C, air circulation, do not allow heat to accumulate around the machine |
| Warning | It is forbidden to test batteries over 5V |
| Size and weight | Product Size 167*165*240mm, Weight 2.6Kg |

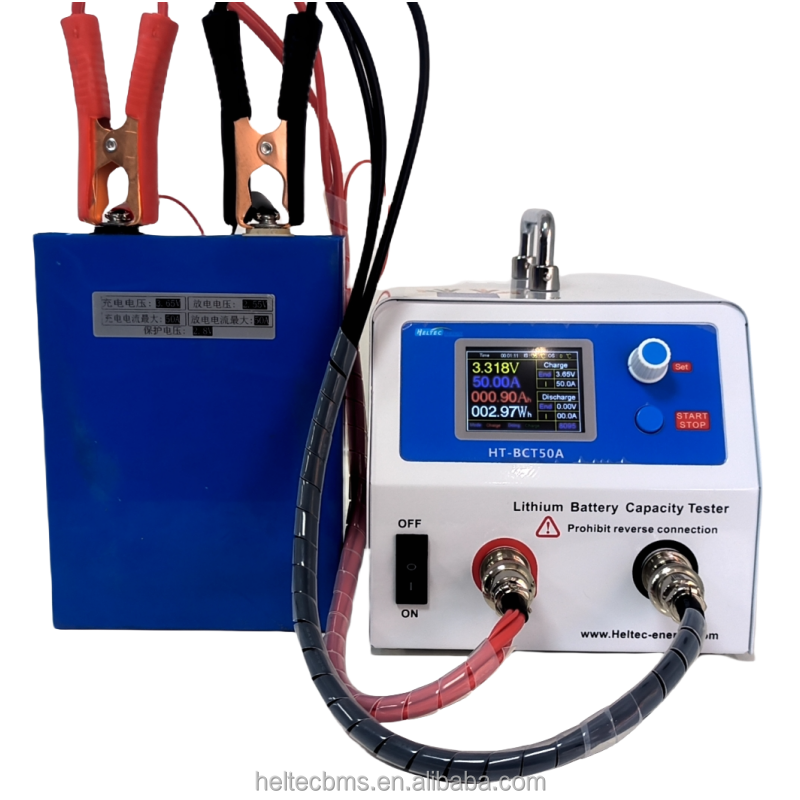

99% of the failures are caused by too small contact area between the battery clamp and the battery pole ear/bad contact/too large charge and discharge current/cell damage. Although the battery clamp has clamped the battery, but if the contact area is not large enough, it will lead to various failures, it is recommended that you make your own battery clamp!

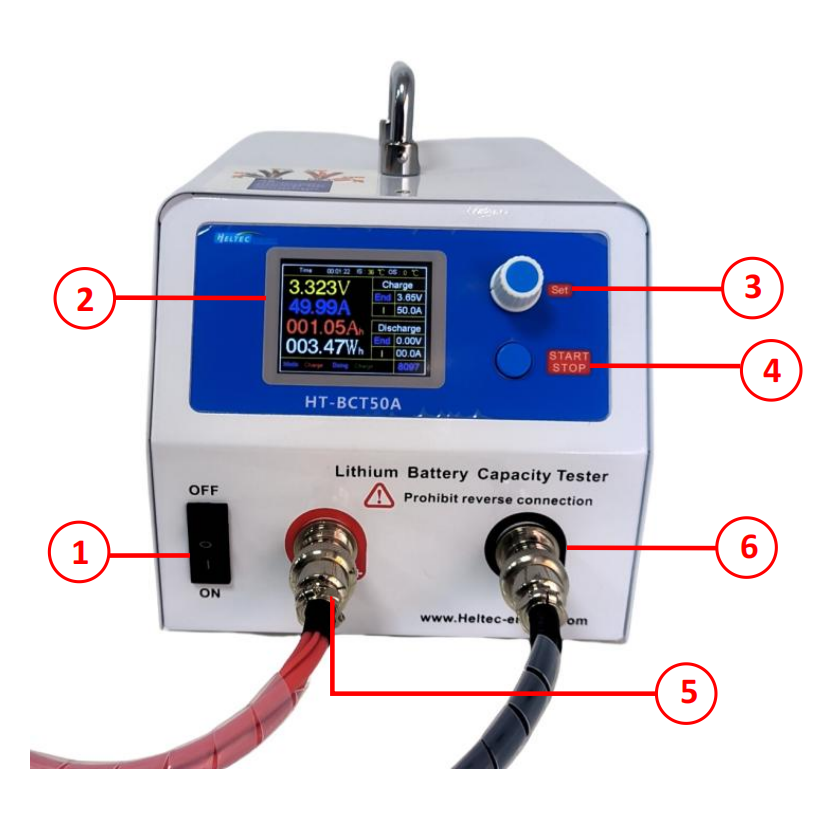

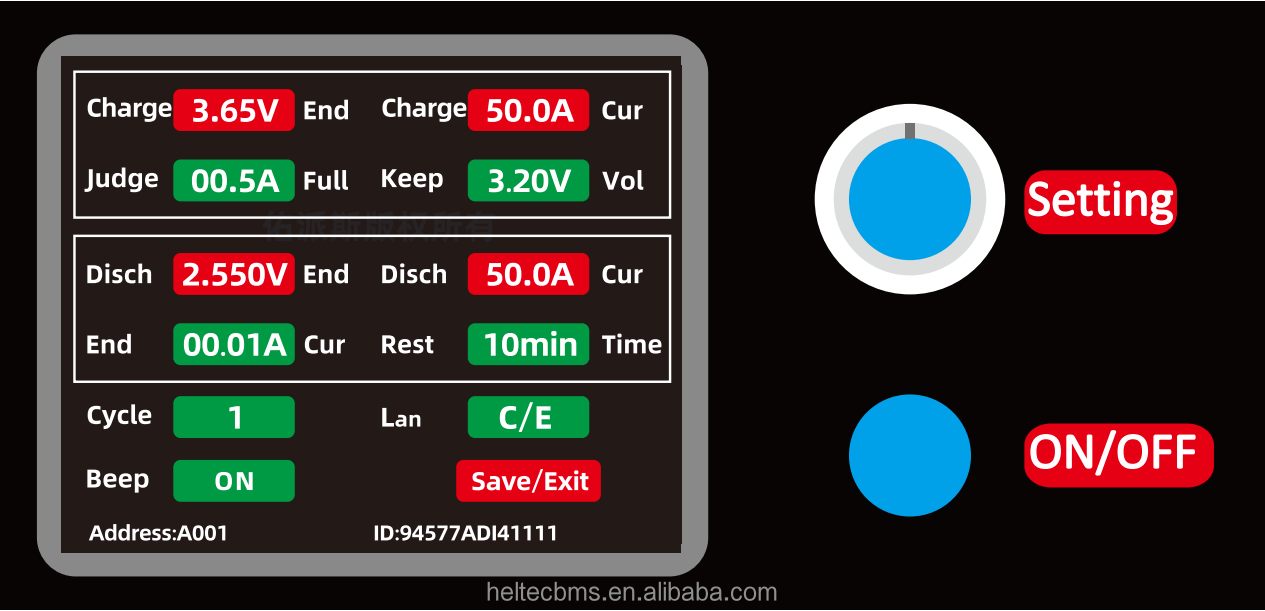

Start up first, and then clip the battery. Press the setting knob to enter the setting page, rotate left and right to adjust the parameters, press to determine, set the parameters correctly and save the exit.
Charge and discharge mode parameters need to be set simultaneously.
Return to the home page, rotate the setting button to the left or right to switch to the working mode you need, press the start / stop button to enter the working state, and press again to pause.

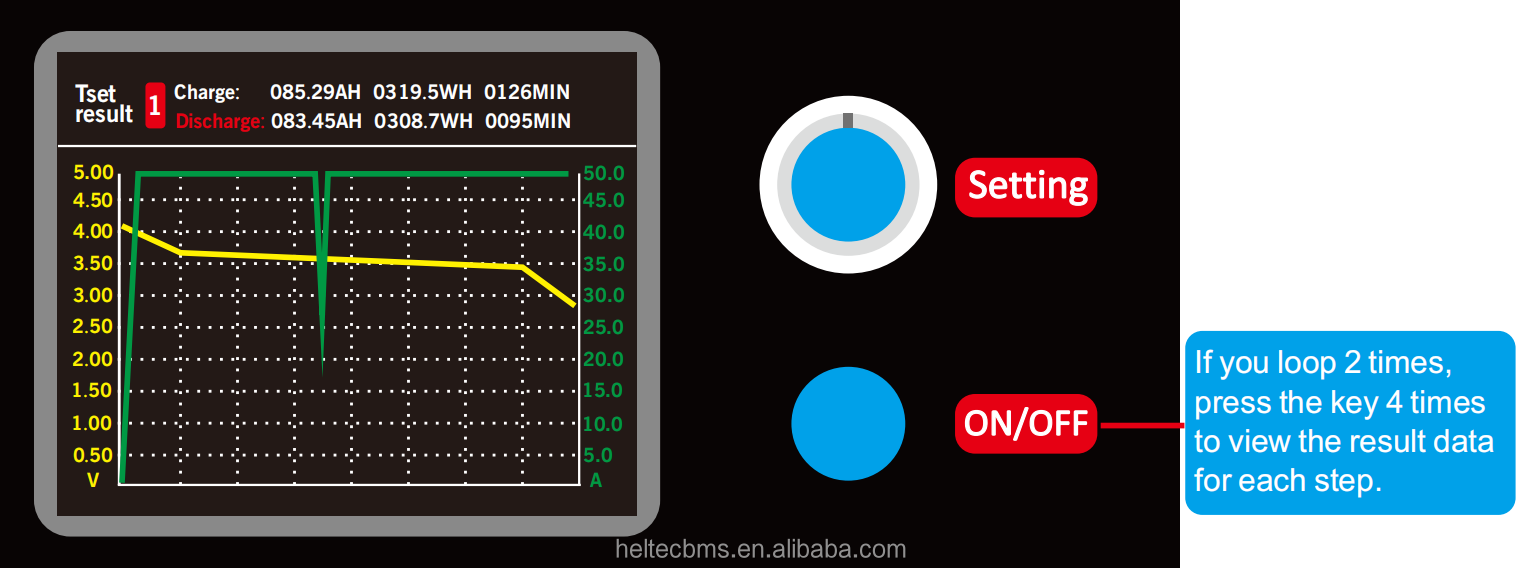

After waiting for the test to end, the result page will automatically pop up (press any button to stop the alarm sound) and record it manually test the results, and then test the next battery.
Notice: If the test result is empty, the working step was less than 2 minutes, meaning the data was not recorded.
The warranty service period is 1 year.
The warranty service is limited to normal use. Damage caused by the following conditions is not within the scope of the free warranty:
When you need warranty service, please contact your dealer for processing. If you need warranty service, please send the product for repair, but please note that the freight for the round trip must be paid by the customer.
