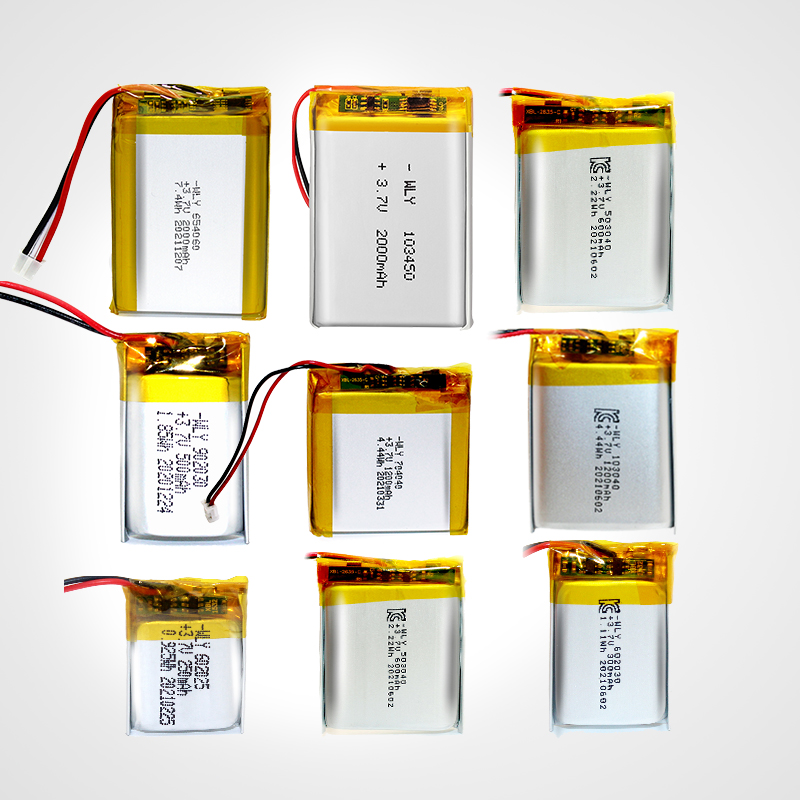

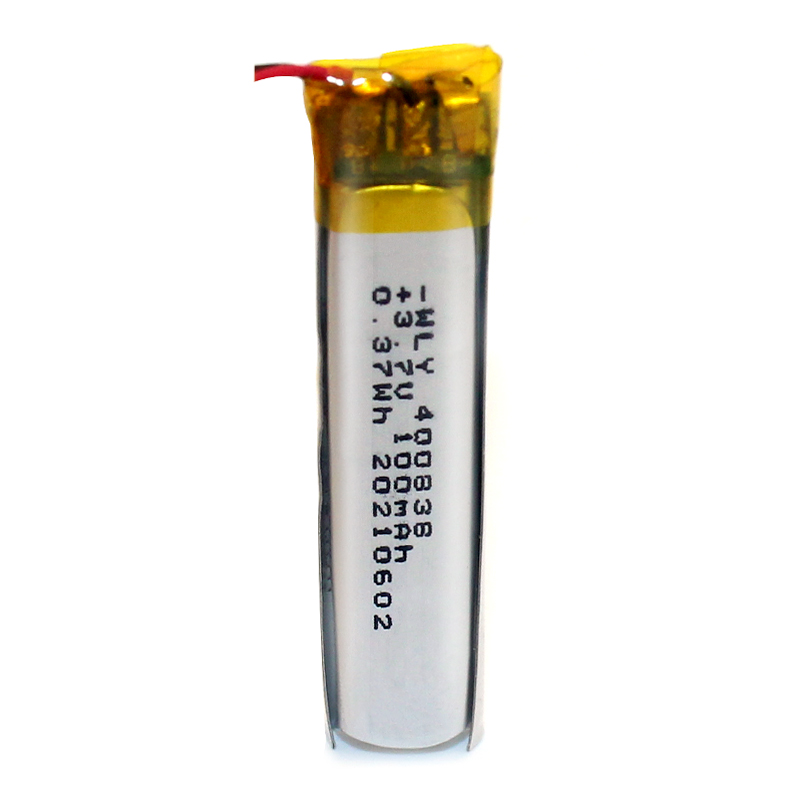

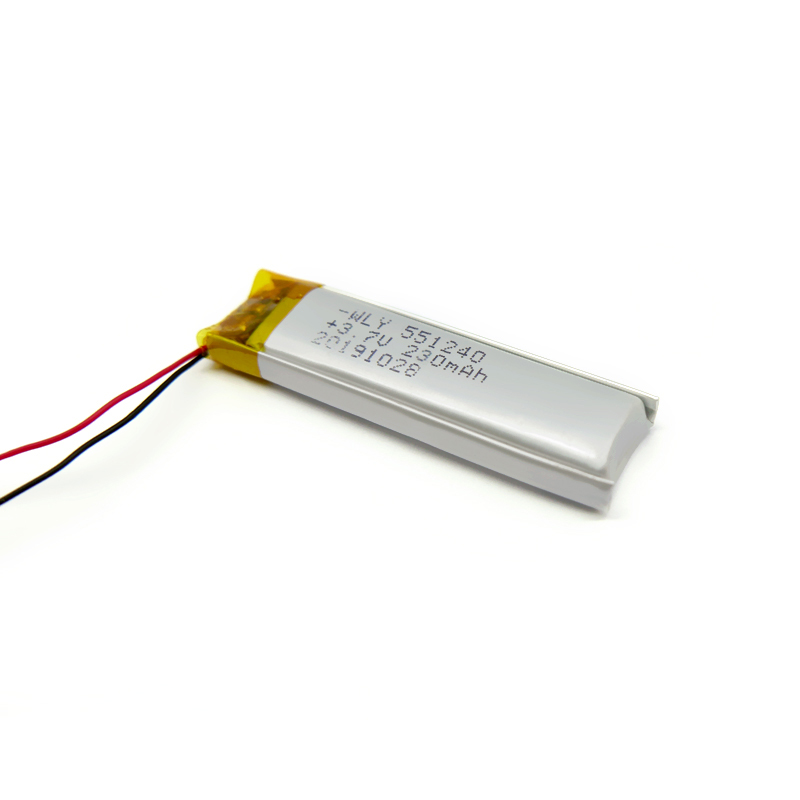

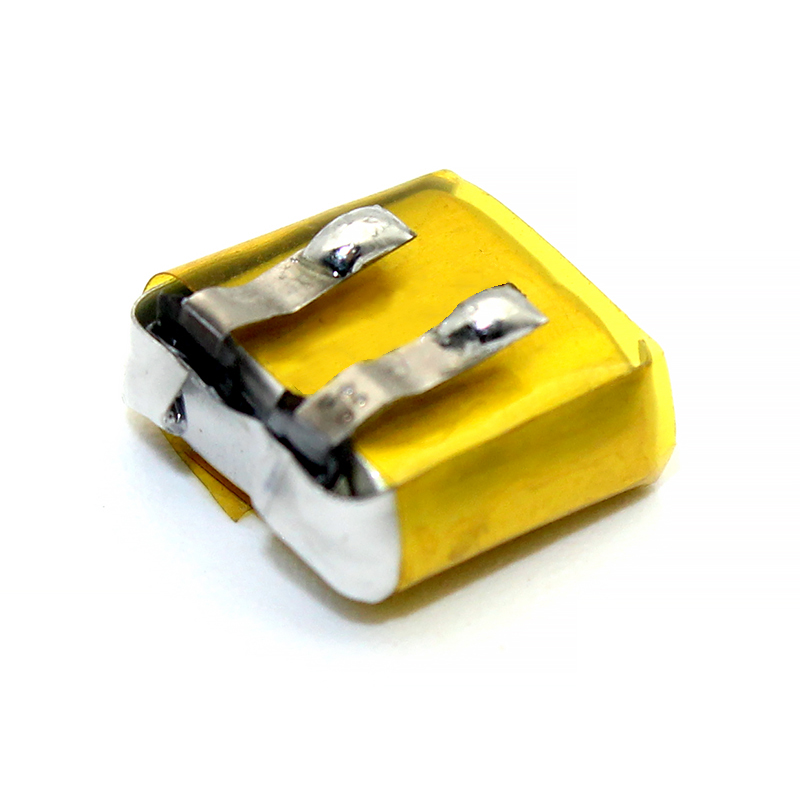

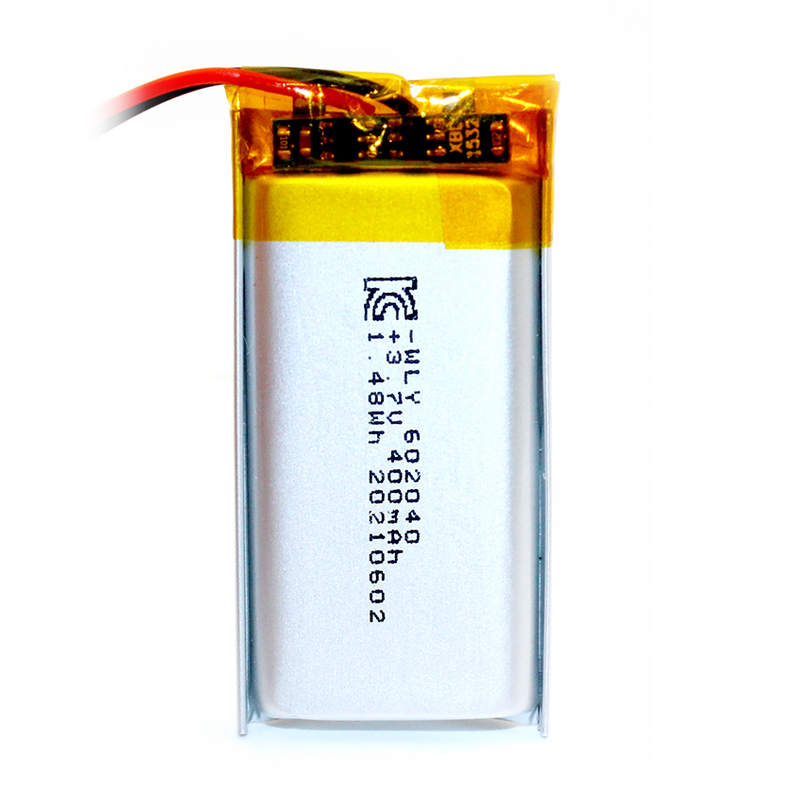

BIS Certified Lithium Battery 40mah 100mah 250mah 400mah 500mah 3.7v Rechargeable Lithium Polymer Battery

Product Description

Product Banner
Product Description

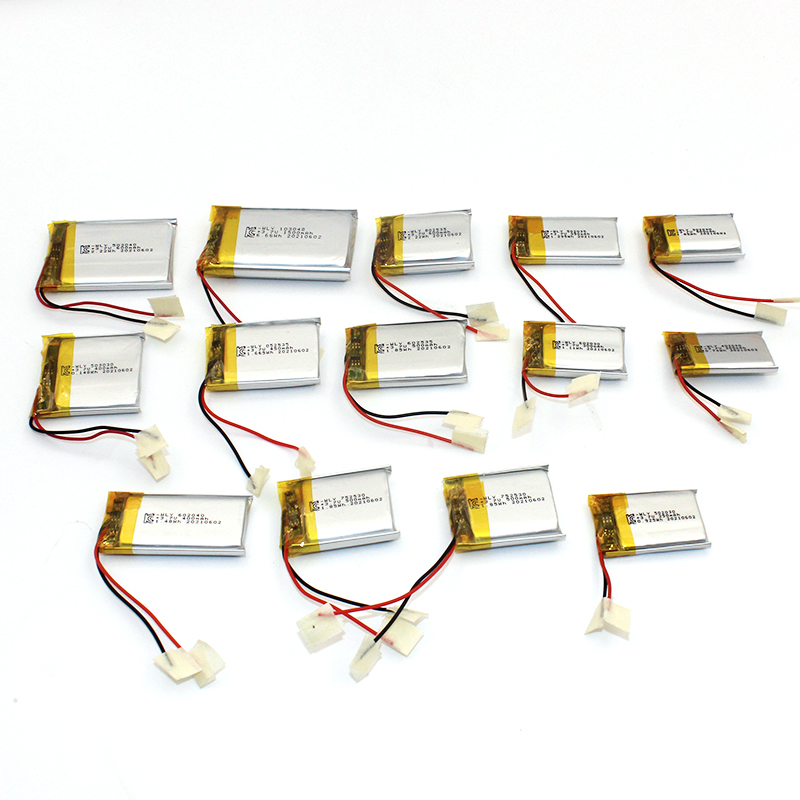

Product Description Image
Specification
3.7V Lipo Battery Basic Information
Dimension 5.5*12*40mm / customized
Nominal capacity 230mah / customized
Power 0.851Wh
Charge voltage 4.2V
Nominal voltage 3.7V
Full-charge voltage 4.2v
Ship out voltage 3.7-4.1v
Battery Specification
Standard charge 0.5C/115mA
Max charge 1.0C/230mA
Standard discharge current 0.5C/115mA
Max Standard discharge current 1.0C/230mA
Discharge cut-off voltage 2.75V or 3.0V
Charge temperature 0℃ ~ 45℃
Discharge temperature -10℃ ~ 60℃
Storage temperature -10℃ ~ 45℃
Battery recycle time 500 times
Warranty 12 Months
Certifications UL1642, IEC62133, UN38.3, MSDS, KC, CE, BIS, ROHS, TUV etc.
Protection Function Built-in chips provide protection for over charge, over discharge, over voltage, short circuit and high temperature.
Charging method Charge with constant current 0.5c to 4.2V, then charge with constant voltage 4.2v until charge current is less than 0.01C.
Application Widely used in wireless devices, digital devices, intelligent wearable devices, digital medical devices, measuring instruments and other high-tech electronic products.
360° Custom Services
Customized Battery Packs
Customized Battery Packs
Customized Connectors
Customized Connectors
Customized PCBs
Customized PCBs
Customized Sizes & Capacities
Customized Sizes & Capacities
Please contact us for more size/capacity.
Size Chart
Production Flow
Production Flow Diagram
About US
Factory Image 1 Factory Image 2
Your reliable lithium battery solutions supplier.
  • Experienced R&D team since 2010.
  • 50,000,000 pcs annual production, 5 automatic production lines.
  • Highly popular for customized 3.7V lithium battery.
  • Strict QC team and testing equipment with reliable after-sales service system.
  • Good comments, reputation and feedback from our satisfied customers.
Certifications
Certifications Display
UL1642, IEC62133, UN38.3, MSDS, KC, CE, BIS, ROHS, TUV etc.
Exhibition
Exhibition Booth
Product Categories
Product Categories Grid
Don't hesitate to contact us!
Get in touch with us to receive professional lithium battery support and customized solutions.
Frequently Asked Questions (FAQ)
Can I customize the battery pack size and capacity?
Yes, we provide full custom services including customized dimensions, nominal capacities, specific PCBs, protection circuits, and matching connectors to fit your application.
What certifications do your 3.7V lipo batteries have?
Our lithium polymer batteries comply with global safety standards and hold certifications such as UL1642, IEC62133, UN38.3, MSDS, CE, KC, BIS, ROHS, and TUV.
What is the standard cycle life of these batteries?
Under standard charge and discharge conditions (0.5C), our premium quality Lipo batteries can complete up to 500 charge-discharge cycles before capacity drops below standard parameters.
What safety protections are integrated into the batteries?
Each customized battery pack is equipped with built-in protection chips that guard against over-charge, over-discharge, over-voltage, short circuits, and high-temperature conditions.
What are the recommended operating temperatures?
The recommended charging temperature is 0℃ ~ 45℃, and the discharging temperature ranges from -10℃ ~ 60℃. Proper storage should be maintained within -10℃ ~ 45℃.
Do you supply matching connectors with the battery?
Yes, we can customize and solder various types of standard or custom connectors (such as JST, Molex, etc.) to the battery leads according to your technical drawings.
