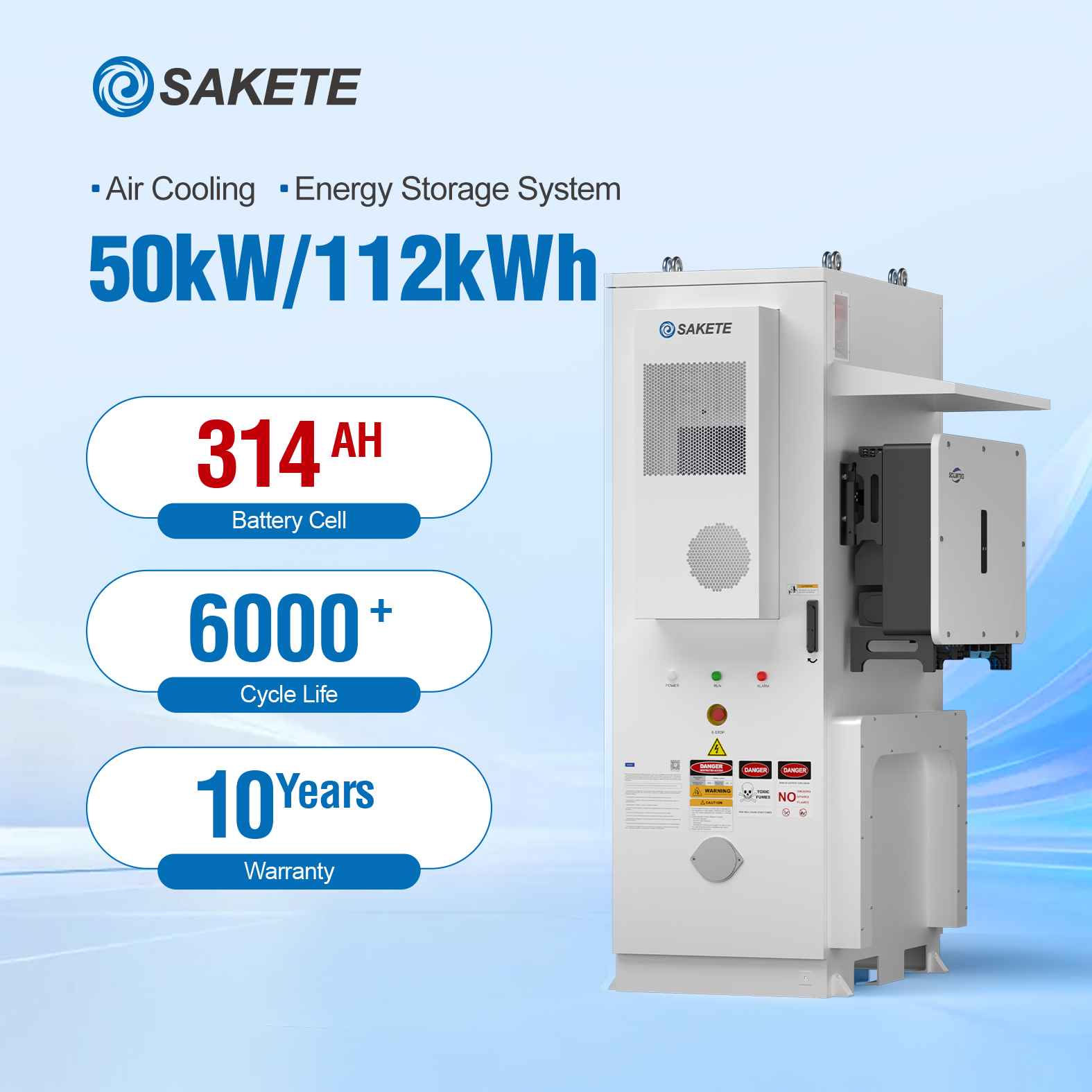

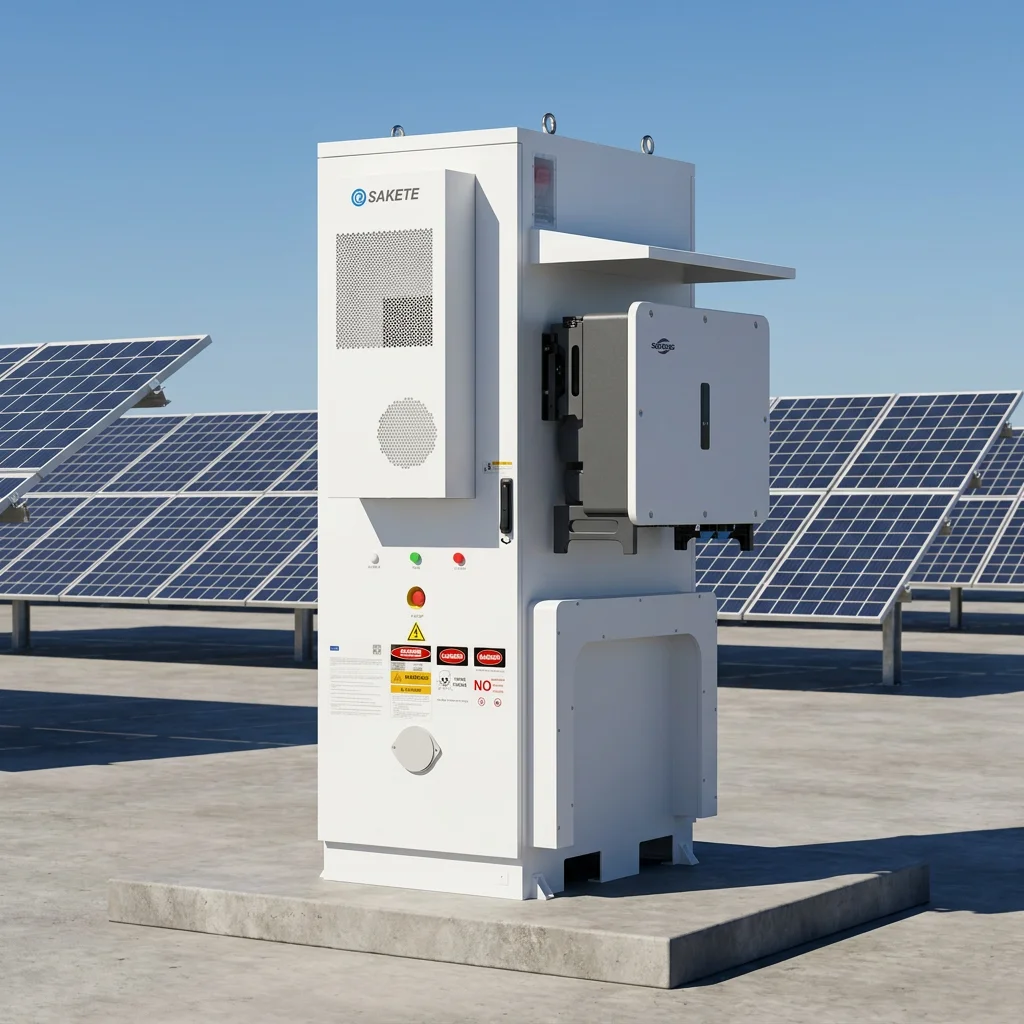

SAKETE Commercial 112kWh Industrial BESS 50kW High Voltage LiFePO4 Battery Energy Storage System

Overview

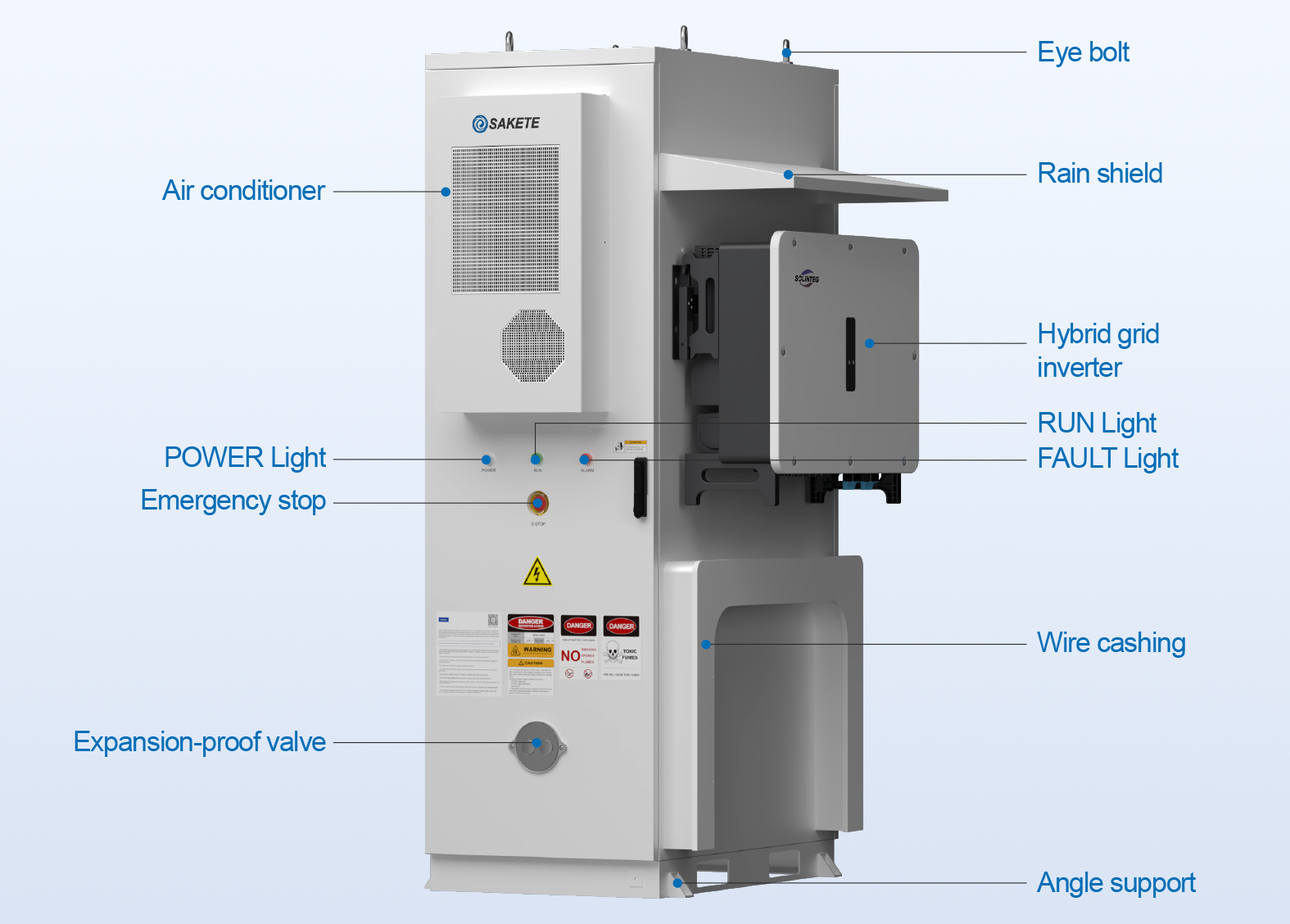

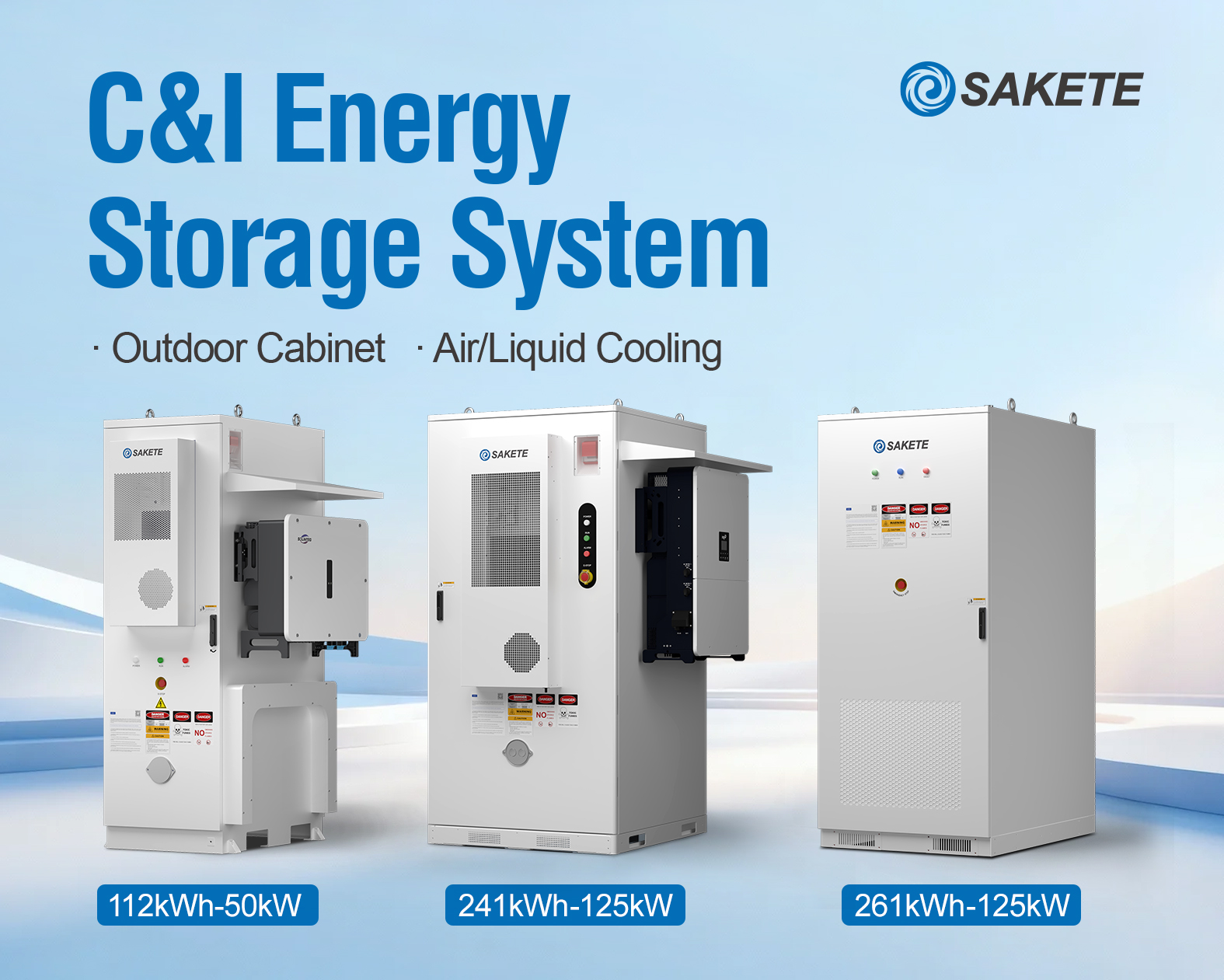

SKTESS112-50K air-cooled energy storage DC system is a product specifically designed for small C&I users. It can be customised to integrate with inverters from various leading brands according to customer requirements. Up to 7 battery packs can be connected in series within the cabinet, with a maximum of 5 units capable of parallel operation. It is primarily intended for applications such as power storage, backup power supply, and microgrids.

Technical Specifications

Model		SKTESS112-50K
Battery DC	Battery Type	LiFePO4
	Nominal Capacity	314Ah
	Battery Configuration	1P112S
	Nominal Energy	112.537kWh
	Nominal Voltage	358.4V
	Operating Voltage Range	313.6~403.2V
	Max.Continuous Charge / Discharge Current	157A
	Charge / Discharge Rate	0.5P
	Max. Charge-discharge Efficiency	95%(@25°C-30°C, 0.5P)
	Cycle Life	≥ 6000( @25°C ± 2°C , 0.5P / 0.5P, 70% EOL )
PV	Max. DC Input Voltage	1000V
	MPPT Voltage Range	200~950V
	DC Inputs	2/2/2/2
Back-up	Max. Input Current	40A*4
	Rated Output Power	50kW
	On / Off-grid Switching Time	<10ms
System	Peak Output Apparent Power	1.5 Times Of Rated Output Power, 10s
	Max. AC Output Power	55kW
	Grid Type	3L / N / PE
	AC Output Frequency	50 / 60HZ
	AC Output Voltage	400±5%V
	Voltage Harmonic Distortion	<3% @Linear Load
	AC Max. Output Current	83A
	Power Factor	0.8 Leading ... 0.8 Lagging
	Ingress Protection	IP54
	Protective Class	Class I
	Anti-Corrosion Grade	C3 ( C4 Optional )
	Max. System Efficiency	88%
	Operating Temperature Range	-20°C ~50°C
	Storage Temperature	-20°C ~50°C
	Relative Humidity	≤90 % ( non-condensing )
	Max. Working Altitude	3000( >2000m derating )
	Communication	CAN / RS485
	Cooling	Air Cooling
	Dimension	1150(±5) × 1330(±5) × 2315(±5) mm
	Net Weight	1200kg
	Max. Parallel	5

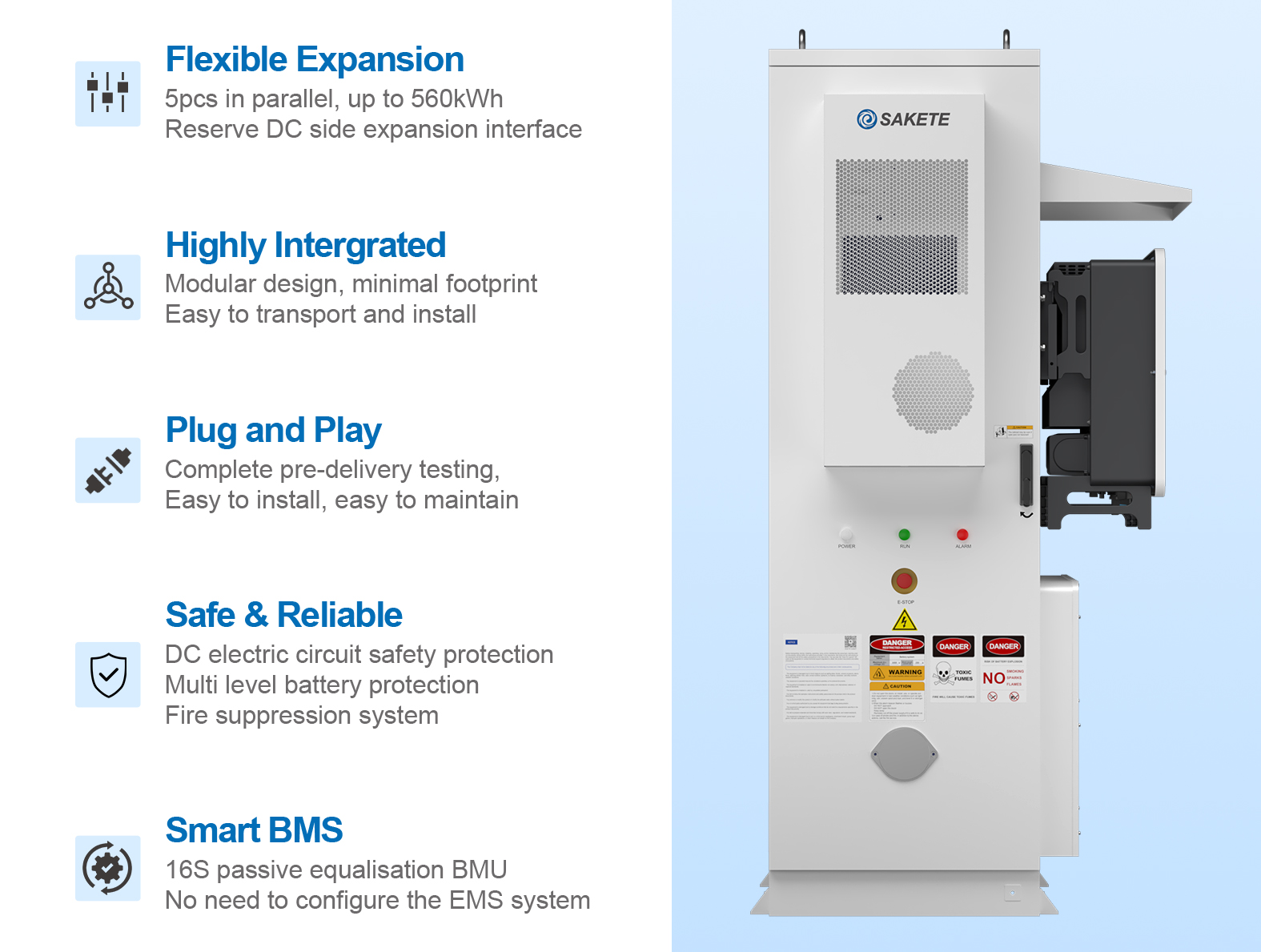

Products Advantages

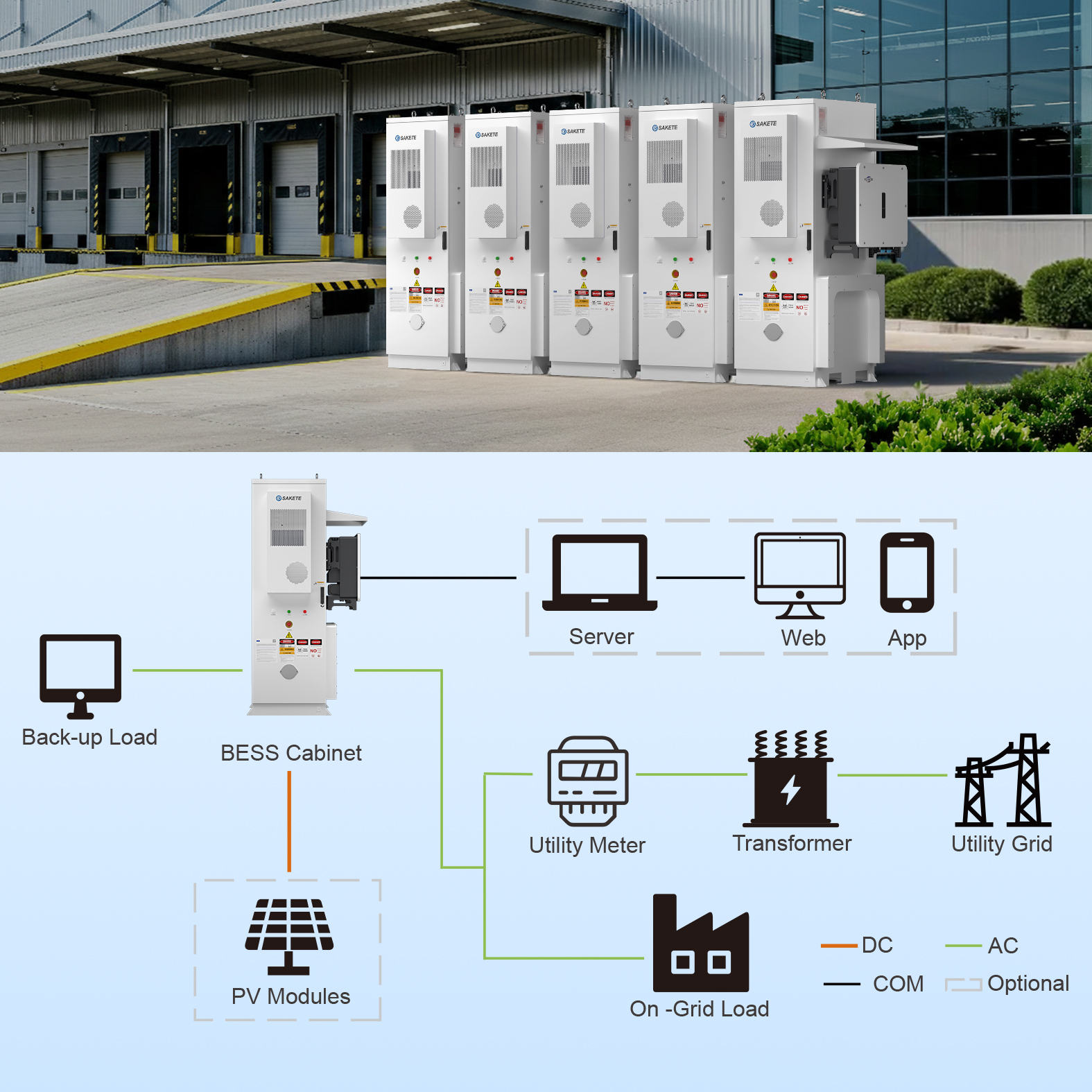

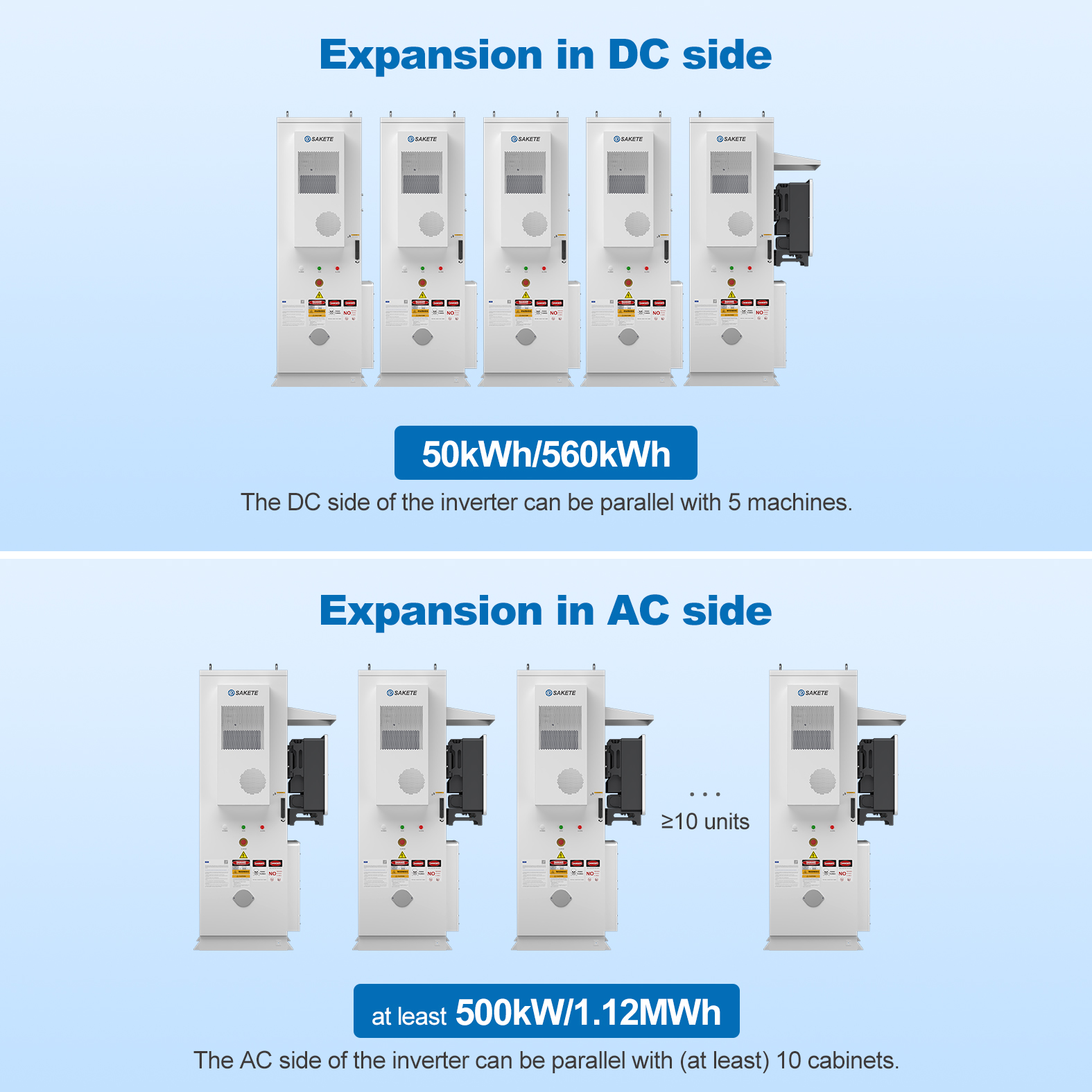

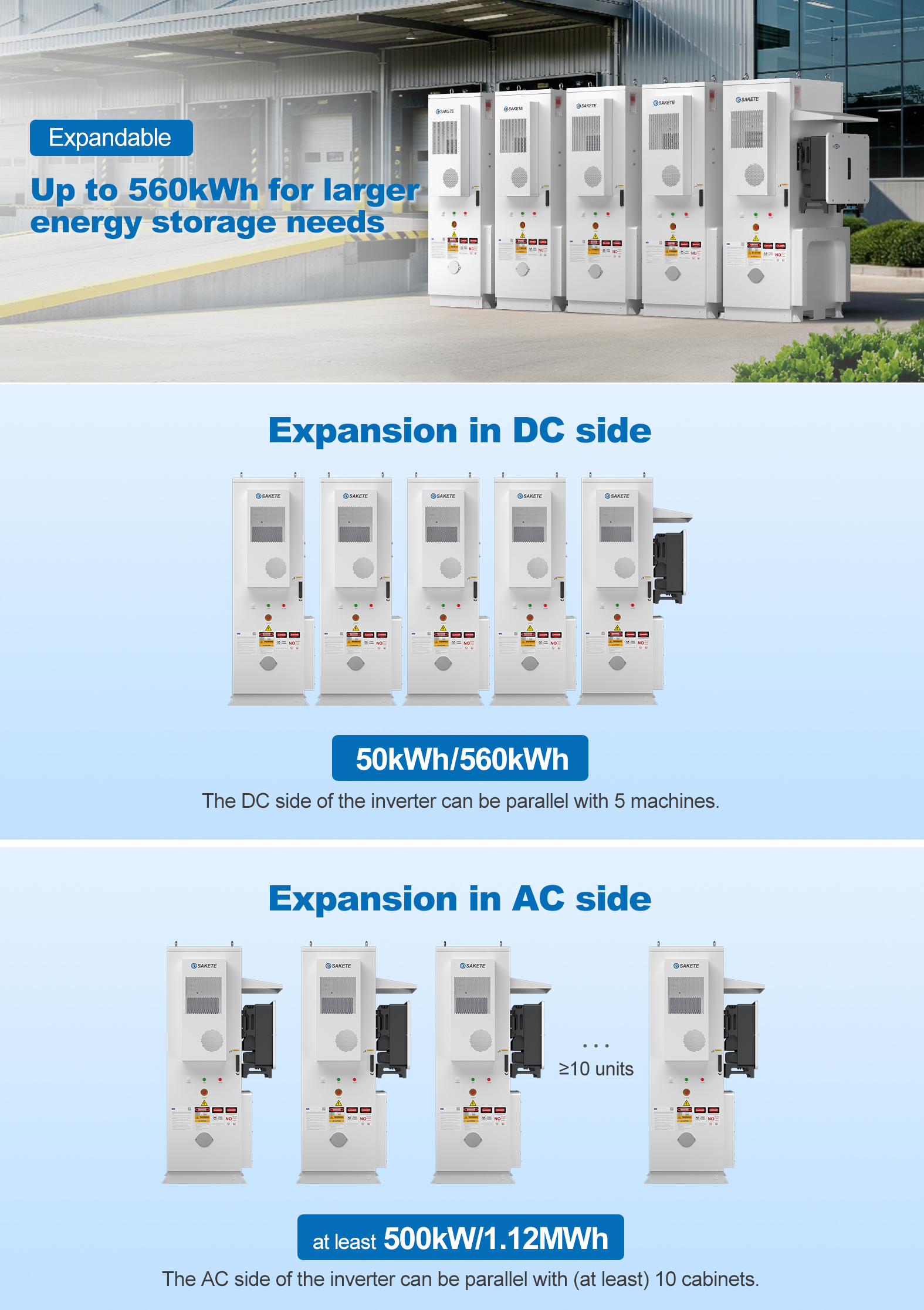

This product employs a modular design, featuring an externally mounted energy storage inverter. It offers flexible adaptation to diverse power application scenarios, supports rapid on-site installation, and enables multiple units to be interconnected for capacity expansion according to customer requirements, thereby achieving larger-scale configuration upgrades.

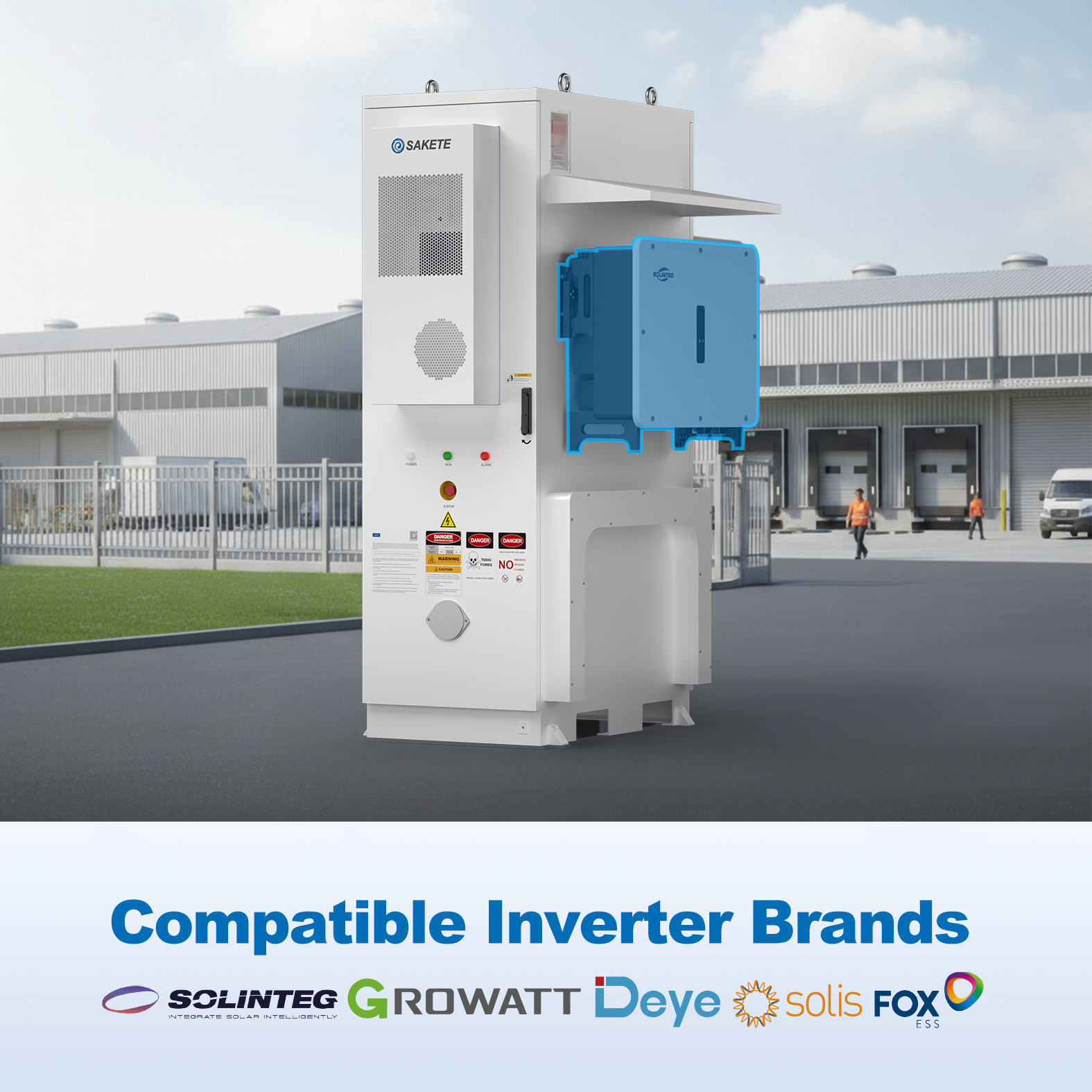

This product can be matched with inverters from multiple brands according to customer requirements.

Products Description

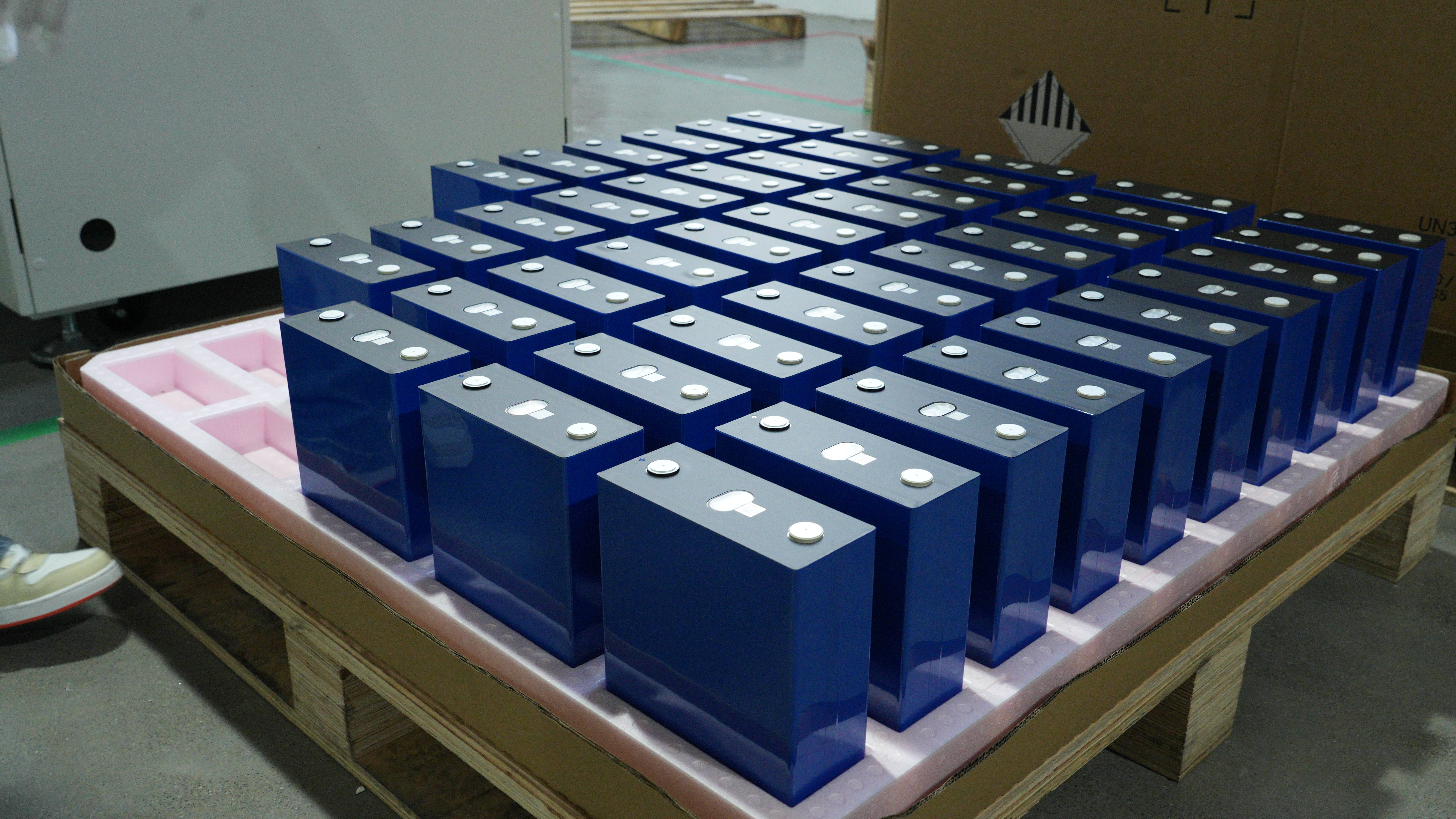

LiFePO4 Lithium Battery

This product utilises lithium iron phosphate batteries with a cell capacity of 280Ah. The nominal cell voltage is 3.2V, with an operating voltage range of 2.5V to 3.65V per cell. The monthly self-discharge rate does not exceed 3%. These cells offer extended longevity, robust battery safety, and excellent consistency. The battery has passed multiple stringent national testing protocols, with safety performance meeting national standards.

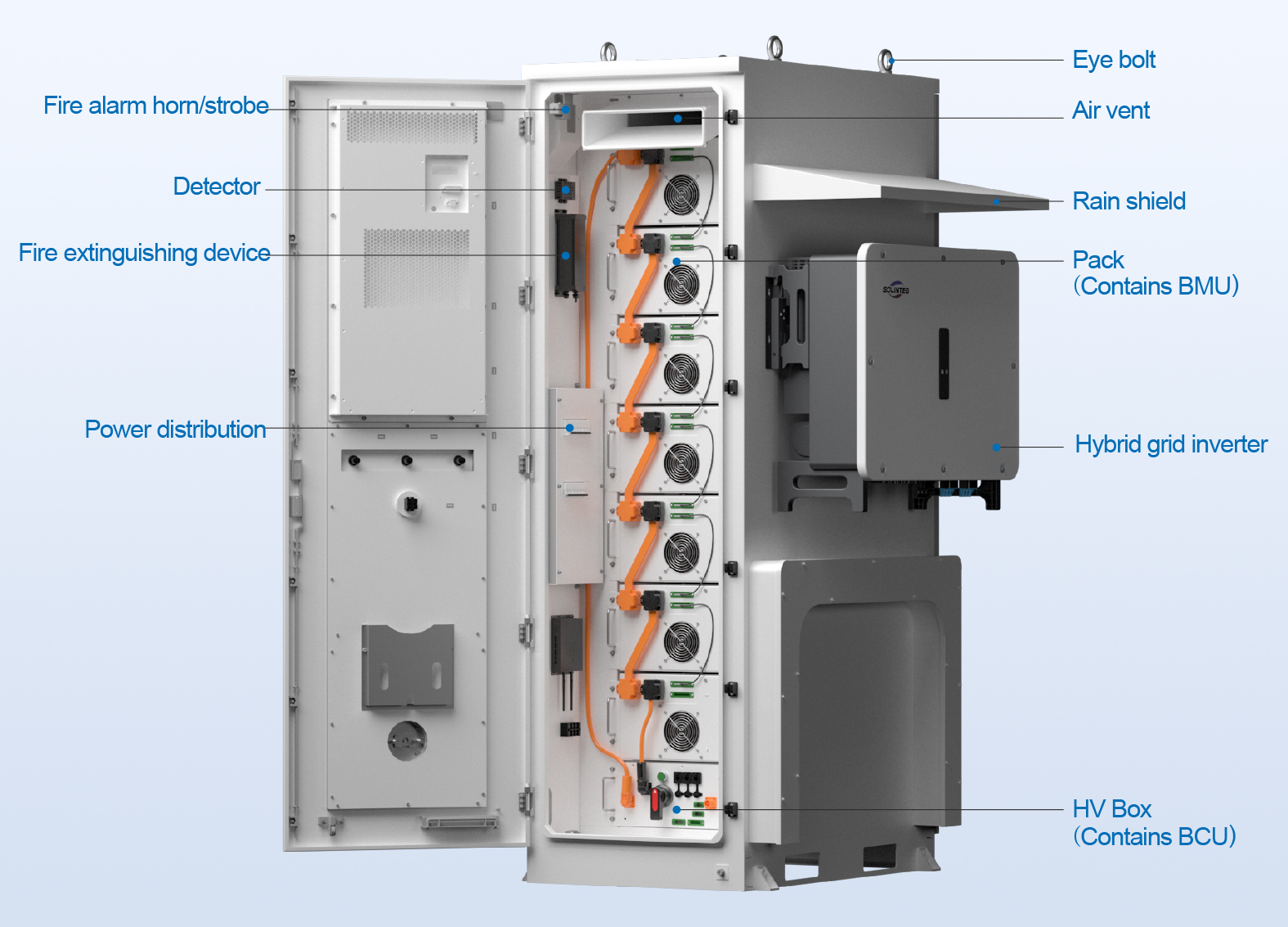

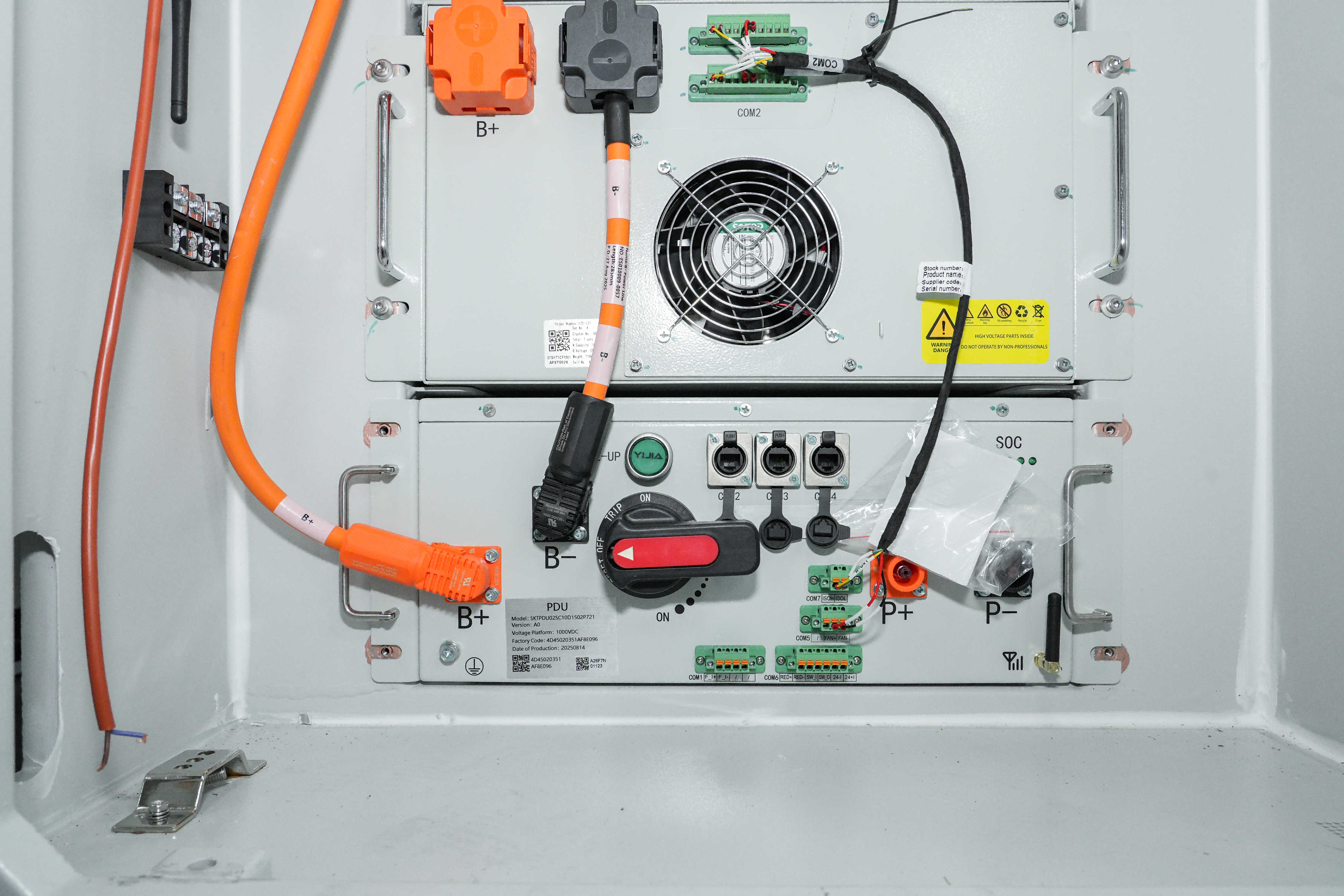

HV Box

The high-voltage box features an integrated, compact design with optimised dimensions. It incorporates multiple interfaces for strategy expansion, including fire alarm, air conditioning, temperature detection, dry contacts, and RS485. Utilising DC-side power extraction eliminates the need for external power supply, enabling full black start capability for the system.

Monitoring Cloud Platform

The cloud platform supports direct wireless transmission of battery-side parameter information via 4G/WiFi/Bluetooth to the energy storage cloud platform, eliminating the need for an EMS system configuration. It further enables core functionalities including real-time battery system information and status queries, remote alarms, software/hardware traceability, as well as over-the-air BMS firmware upgrades and parameter calibration.

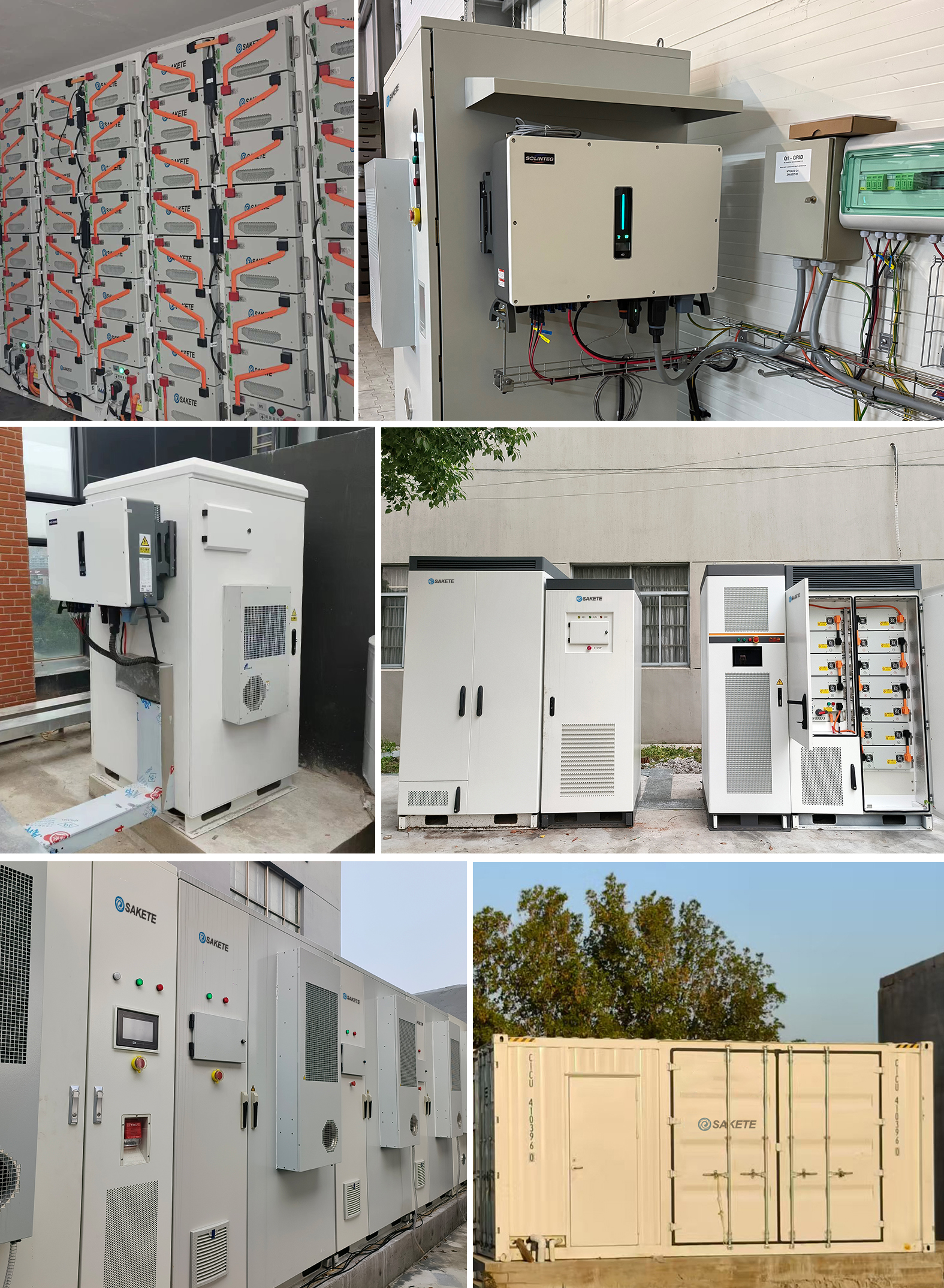

Projects

Product packaging

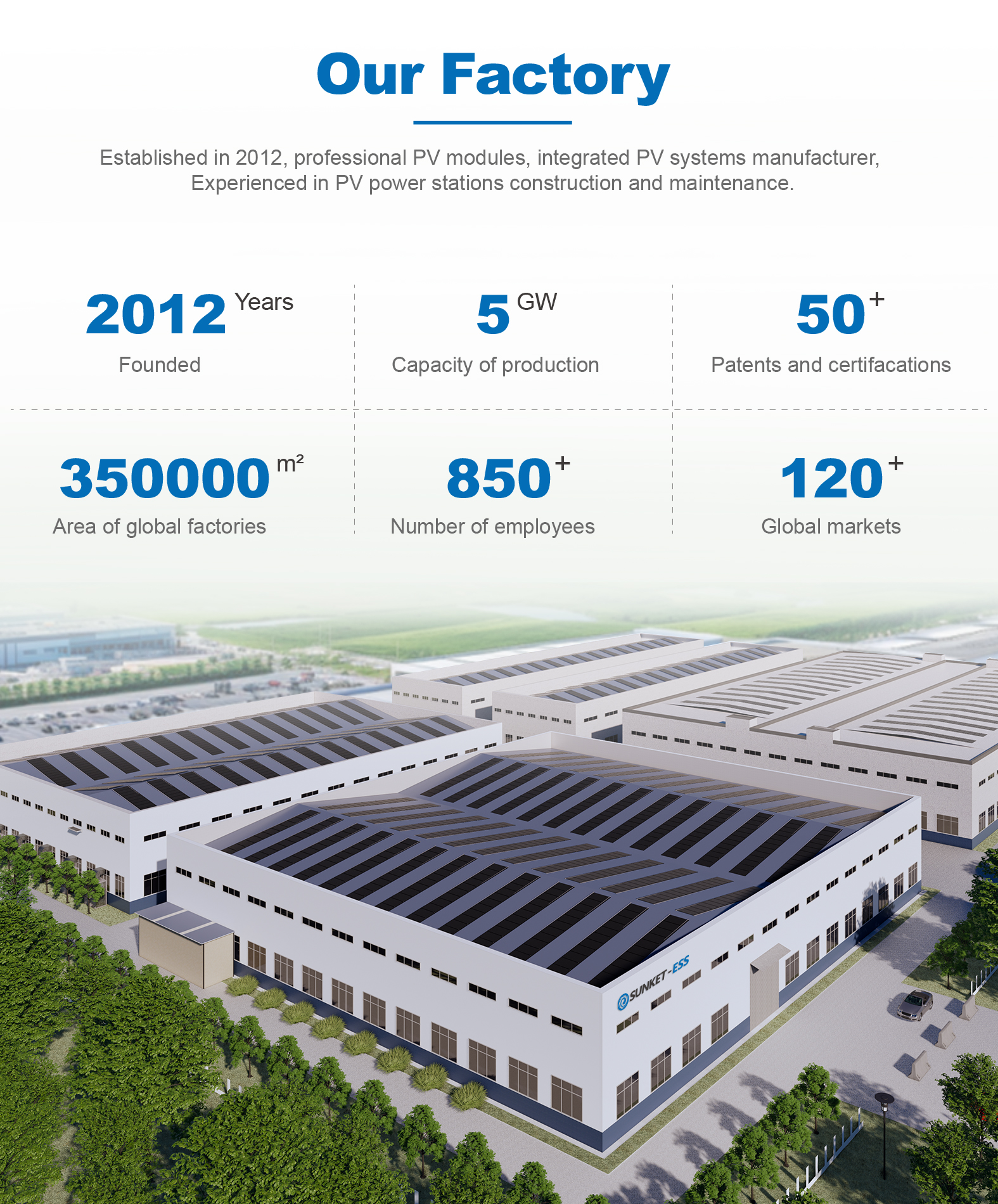

Company Strengths

✓ Integrating research, development, production, sales and service.
✓ Providing integrated green energy solutions for multiple scenarios.
✓ Comprehensive product portfolio featuring a diversified industrial, commercial and residential storage product matrix.
✓ Robust ‘3S’ (BMS, EMS, PCS) product architecture ensuring seamless, stable operation of smart industrial, commercial and residential storage systems.
✓ Possesses OEM & ODM capabilities.
✓ Products hold industry certifications guaranteeing safety, reliability and efficiency.
✓ 24-hour professional technical support team.

Frequently Asked Questions

What are the main target scenarios for the SKTESS112-50K DC system?

The SKTESS112-50K air-cooled energy storage DC system is specifically designed for small C&I (Commercial and Industrial) users. It is primarily applied for load power storage, backup power supply, and microgrid setups.

What type of battery cells are utilized, and what is their safety rating?

The system utilizes premium LiFePO4 (Lithium Iron Phosphate) cells with a capacity of 280Ah. These cells feature safety standards verified by stringent testing protocols, offering robust safety, high consistency, and low self-discharge rates (under 3% monthly).

Can I scale the storage capacity if my energy needs increase?

Yes. The modular design of the cabinet allows up to 7 battery packs in series per cabinet, and a maximum of 5 system units can be connected in parallel on-site to dynamically expand your overall storage configuration.

Is the system compatible with inverters from other manufacturers?

Absolutely. With its flexible externally mounted inverter layout, the system can be customized to match and integrate seamlessly with multi-brand inverters based on your technical preferences.

How does the Cloud Platform assist in system management?

The integrated cloud platform uploads real-time battery status parameters directly using 4G, WiFi, or Bluetooth. It offers remote monitoring, status alerts, remote BMS firmware updates, and troubleshooting capability without needing a complex, dedicated EMS setup.
