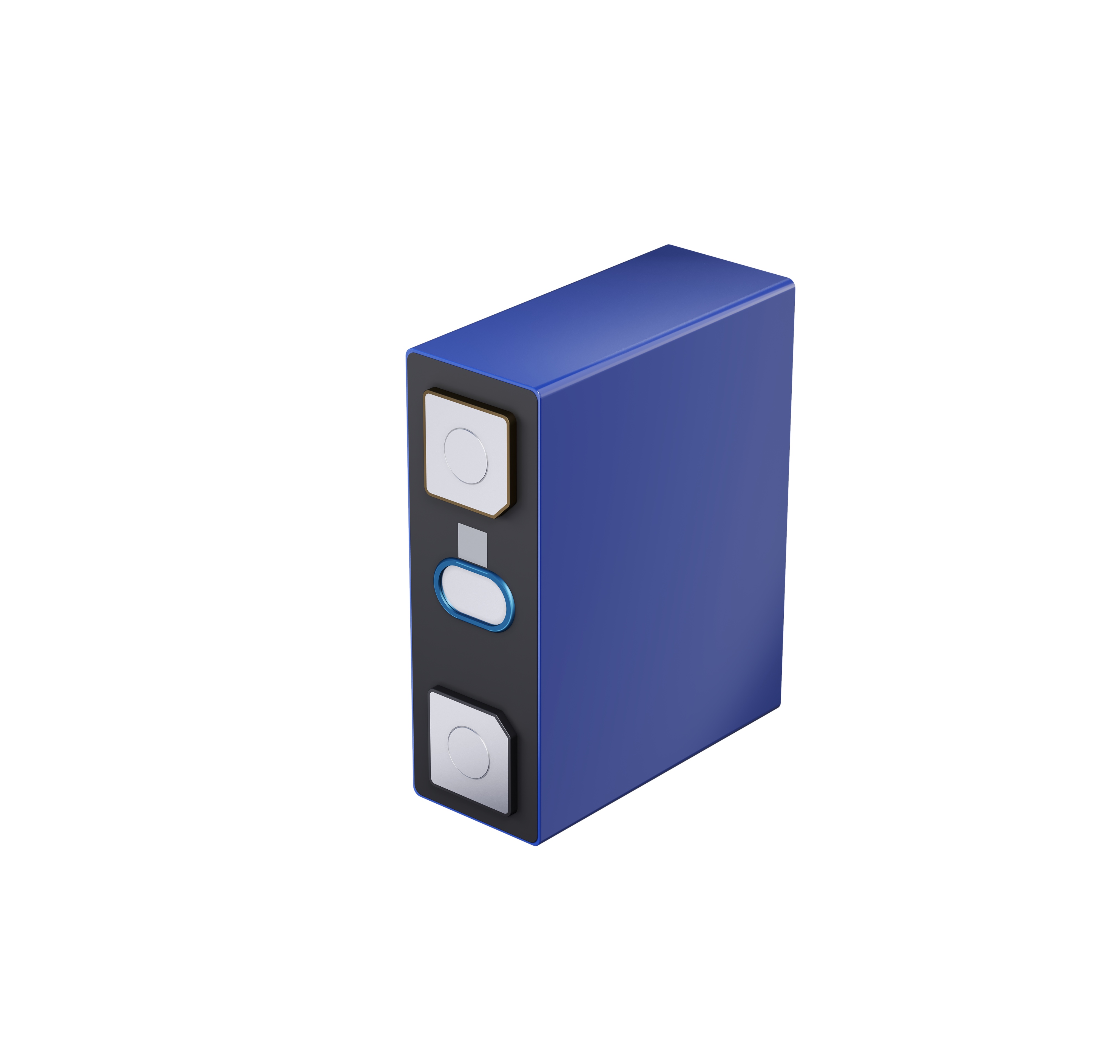

| 100Ah Lithium Battery Specification | |
|---|---|
| Model | LFP 100Ah |
| Battery Type | Lithium Iron Phosphate Battery |
| Material Type | LiFeO4 |
| Application |
Electric energy storage
Industrial and commercial energy storage
Household energy storage
Ship energy storage
|
| Certificates |
ESG
CE
RoHS
UN38.3
MSDS
UL
IEC
ATEX
Reach
GB/T
BIS...
|
| Nominal Capacity | 100Ah |
| Nominal Voltage | 3.2V |
| Life Cycles | 5000 times |
| Operating Temp | Discharge: -20℃ ~ 55℃ | Charge: 0℃ ~ 55℃ |
| Dimension | Thickness: 27.5±0.5mm | Width: 174.26±0.5mm | Shoulder Height: 204.37±0.6mm | Total Height: 207.01±0.6mm |
| Weight | 5.5±0.10 kg |
| Storage Temp | -30℃ ~ 60℃ |
| Charge/Discharge Rate | 0.5C / 0.5C |
| 100Ah-C Lithium Battery Specification | |
|---|---|
| Model | LFP 100Ah-C |
| Battery Type | Lithium Iron Phosphate Battery |
| Material Type | LiFeO4 |
| Application |
Electric energy storage
Industrial and commercial energy storage
Household energy storage
Ship energy storage
|
| Certificates |
ESG
CE
RoHS
UN38.3
MSDS
UL
IEC
ATEX
Reach
GB/T
BIS...
|
| Nominal Capacity | 100Ah |
| Nominal Voltage | 3.2V |
| Life Cycles | 3000 times |
| Operating Temp | Discharge: -20℃ ~ 55℃ | Charge: 0℃ ~ 55℃ |
| Dimension | Thickness: 52.32±0.5mm | Width: 148.4±0.6mm | Total Height: 119.00±0.6mm |
| Weight | 1.87±0.10 kg |
| Storage Temp | -30℃ ~ 55℃ |
| Charge/Discharge Rate | 0.5C / 0.5C |
| 100Ah-P Lithium Battery Specification | |
|---|---|
| Model | LFP 100Ah |
| Battery Type | Lithium Iron Phosphate Battery |
| Material Type | LiFeO4 |
| Application |
Electric energy storage
Industrial and commercial energy storage
Household energy storage
Ship energy storage
|
| Certificates |
ESG
CE
RoHS
UN38.3
MSDS
UL
IEC
ATEX
Reach
GB/T
BIS...
|
| Nominal Capacity | 100Ah |
| Nominal Voltage | 3.2V |
| Life Cycles | 6000 times |
| Operating Temp | Discharge: -20℃ ~ 55℃ | Charge: 0℃ ~ 55℃ |
| Dimension | Thickness: 27.5±0.5mm | Width: 174.26±0.5mm | Shoulder Height: 204.37±0.6mm | Total Height: 207.01±0.6mm |
| Weight | 1.91±0.15 kg |
| Storage Temp | -30℃ ~ 60℃ |
| Charge/Discharge Rate | 0.5C / 0.5C |

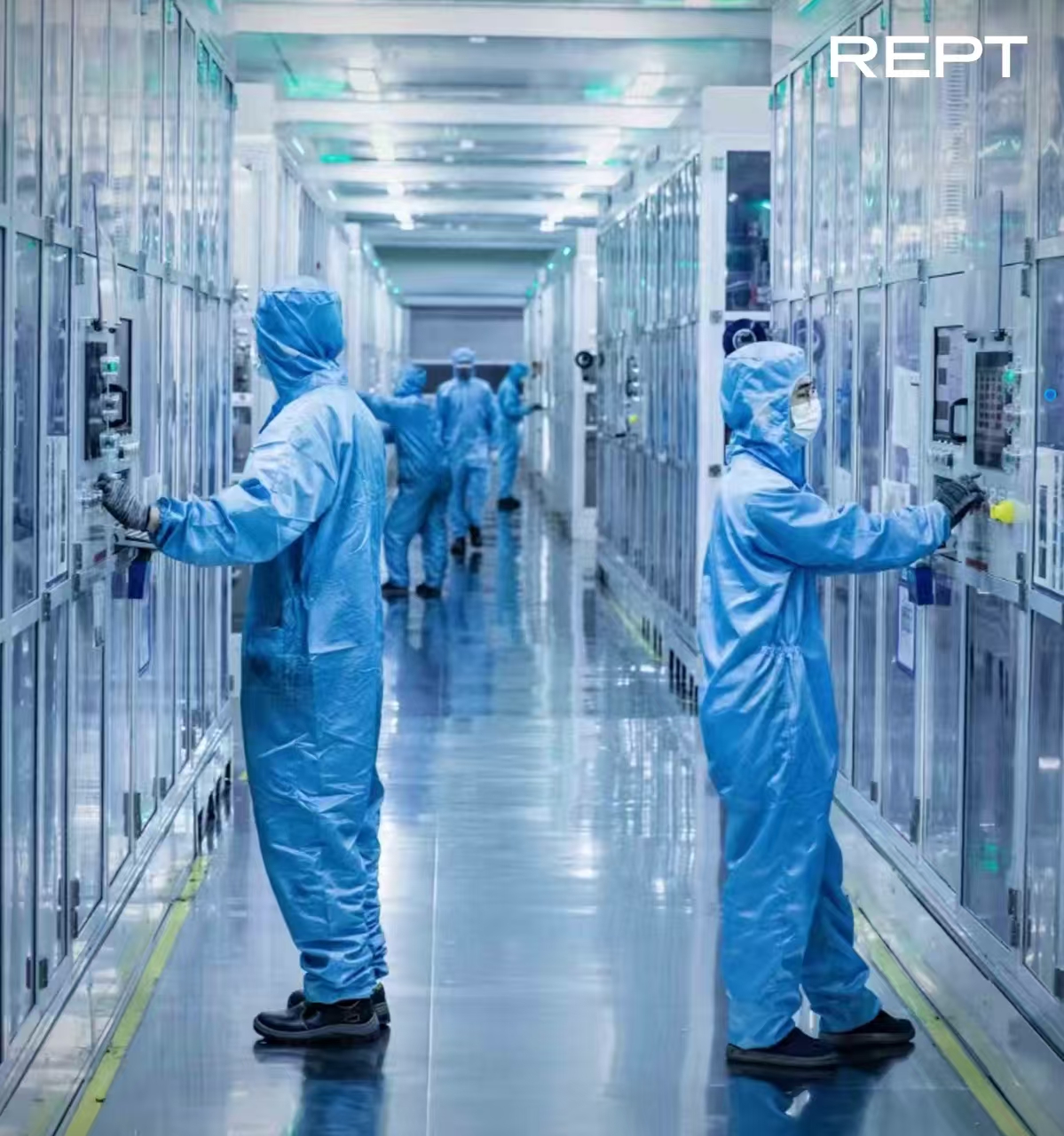

Our technical center features advanced hardware configurations and functions, providing over 200 test items and 20,000 test channels.
We provide battery and energy storage system products, including cells, packs, racks, or containers. We also offer our own-developed BMS.
