Battery Raw Materials Nickel Manganese Cobalt Oxide Nmc Cathode Raw Material for R&D Battery
Battery Raw Materials Nickel Manganese Cobalt Oxide Nmc Cathode Raw Material for R&D Battery
Battery Raw Materials Nickel Manganese Cobalt Oxide Nmc Cathode Raw Material for R&D Battery
Battery Raw Materials Nickel Manganese Cobalt Oxide Nmc Cathode Raw Material for R&D Battery
Battery Raw Materials Nickel Manganese Cobalt Oxide Nmc Cathode Raw Material for R&D Battery
1 / 5
Battery Raw Materials Nickel Manganese Cobalt Oxide Nmc Cathode Raw Material for R&D Battery
Battery Raw Materials Nickel Manganese Cobalt Oxide Nmc Cathode Raw Material for R&D Battery
Battery Raw Materials Nickel Manganese Cobalt Oxide Nmc Cathode Raw Material for R&D Battery
Battery Raw Materials Nickel Manganese Cobalt Oxide Nmc Cathode Raw Material for R&D Battery
Battery Raw Materials Nickel Manganese Cobalt Oxide Nmc Cathode Raw Material for R&D Battery

Battery Raw Materials Nickel Manganese Cobalt Oxide Nmc Cathode Raw Material for R&D Battery

Customization: Available
Type: 111/442/532/622/811/ 7:1.5:1.5
Cathode Material: NCM
Send Inquiry

Product Description

Battery Raw Materials Nickel Manganese Cobalt Oxide NMC Cathode Raw Material for R&D Battery
Battery Raw Materials Banner
Basic Info
Model NO.
NMC
Rechargeable
No
Size
Medium
Physical State
Powder
Warranty
One Year
Decomposition Temp.
1080 °C
Anode Material
Lco
Battery Size
Standard
Name
Nmc
Features
High Capacity, High Density, Good Rate Performance, Long Cycle Life
Storage Type
Store in Warehouse
Transport Package
Carton
Physical and Chemical Properties
Physical State: Powder
Color: Black
Odor: Odorless
Vapor Pressure: None
Viscosity: Not applicable
Boiling Point: Not applicable
Freezing/Melting Point: No
Auto ignition Temp.: No
Flammability: Non-flammable
Decomposition Temp.: 1080
Solubility in water: Not applicable
Molecular Formula: LiNiMnCoO2
NMC / LiNiMnCoO2 Specifications

Lithium Nickel Manganese Cobalt Oxide---LiNiMnCoO2 materials for lithium ion battery cathode materials.
Available in 4 standard types: 1:1:1 / 5:3:2 / 4:4:2 / 7:1.5:1.5.

Property (Ni:Co:Mn = 5:2:3) Standard Specification (Type: PLB-H5)
Product LiNiMnCoO2 Application High Capacity Lithium ion battery
Ni+Co+Mn (%) ≥57.17
Li (%) 7.00-8.00
H2O (%) ≤0.1
D10 (µm) ≥5.0
D50 (µm) 8.0-12.0
D90 (µm) ≤25.0
PH Value ≤11.00
Pressed Density (g/cm3) ≥2.20
Specific Surface Area (m2/g) 0.30-0.80
First discharge Capacity (mAh/g) ≥155 (0.2C, 4.2-2.7V, Button half open cell)
First Discharge efficiency (%) 83-85%
Appearance Black Powder, No Agglomeration, No Sundries
Storage, Delivery Avoid moist

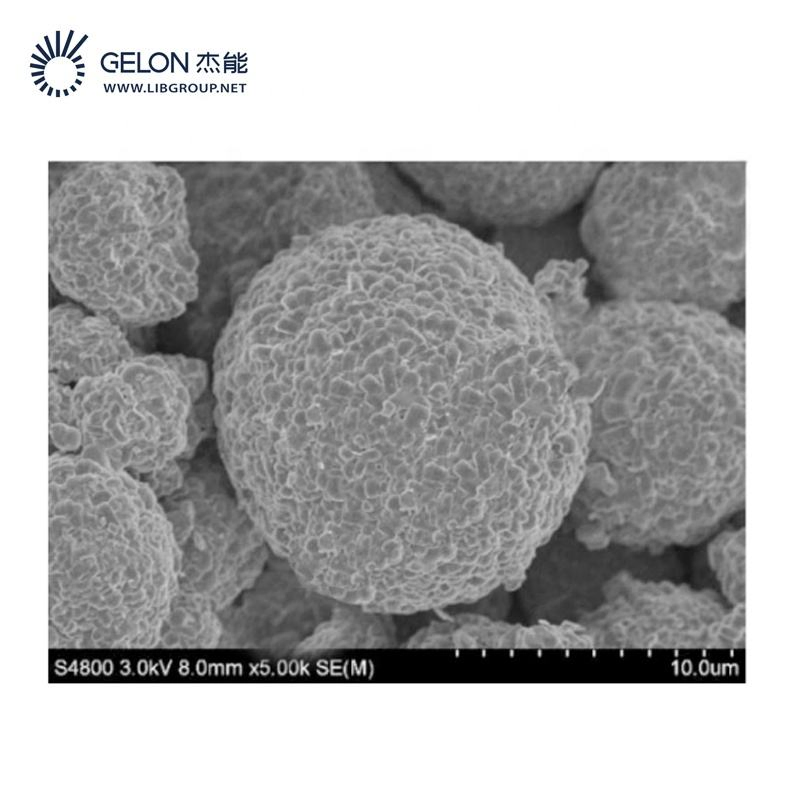

NMC Cathode Powder Details

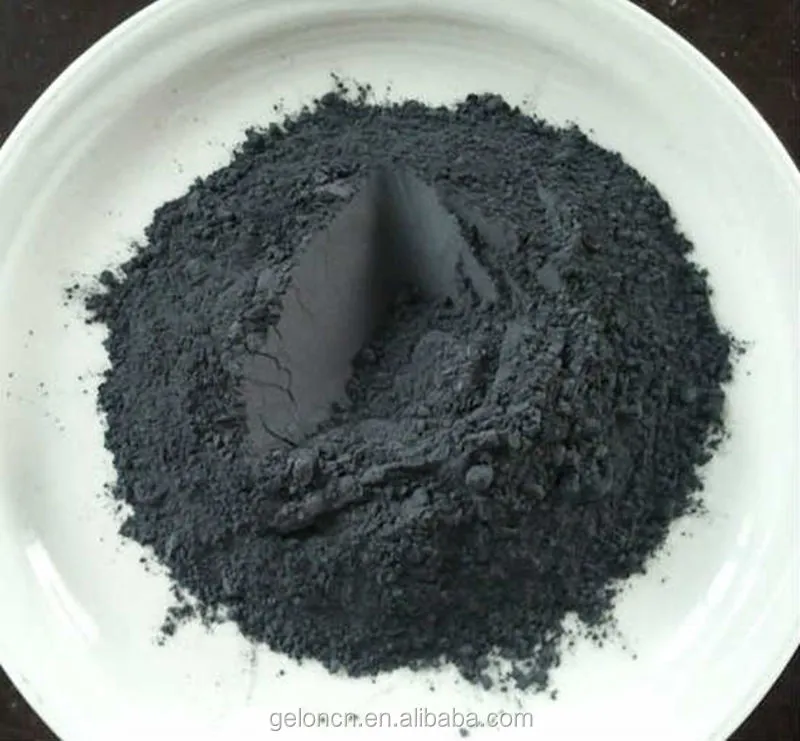

Product Display 1
Product Display 2

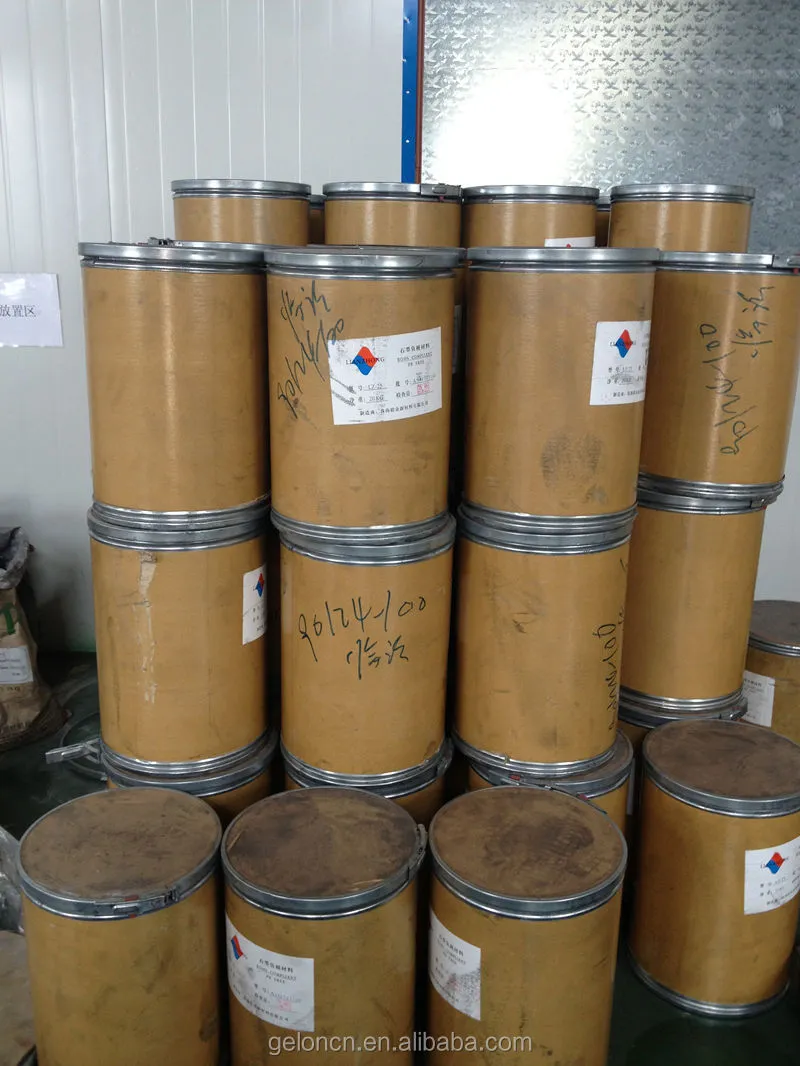

Product Display 3

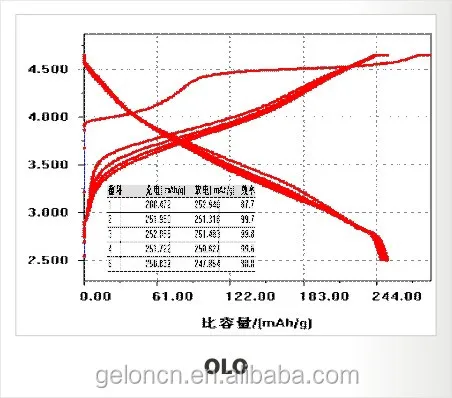

Product Display 4
Complete One-Stop Solution (Turnkey Project)
  • Full set of lithium battery materials: LiMn2O4, LTO, LiNiMnCoO2 (NMC), LiCoO2, Graphite (MCMB), and other cathode & anode battery materials; Aluminum foil, copper foils, battery separator, etc.
  • Full set of lithium battery equipment: Mixing machines, coating machines, ovens, rolling machines, welding machines, slitting/cutting machines, winding machines, sealing machines, and more.
  • Full set of lithium battery technology: Professional laboratory design and production line configuration customized to specific requests.

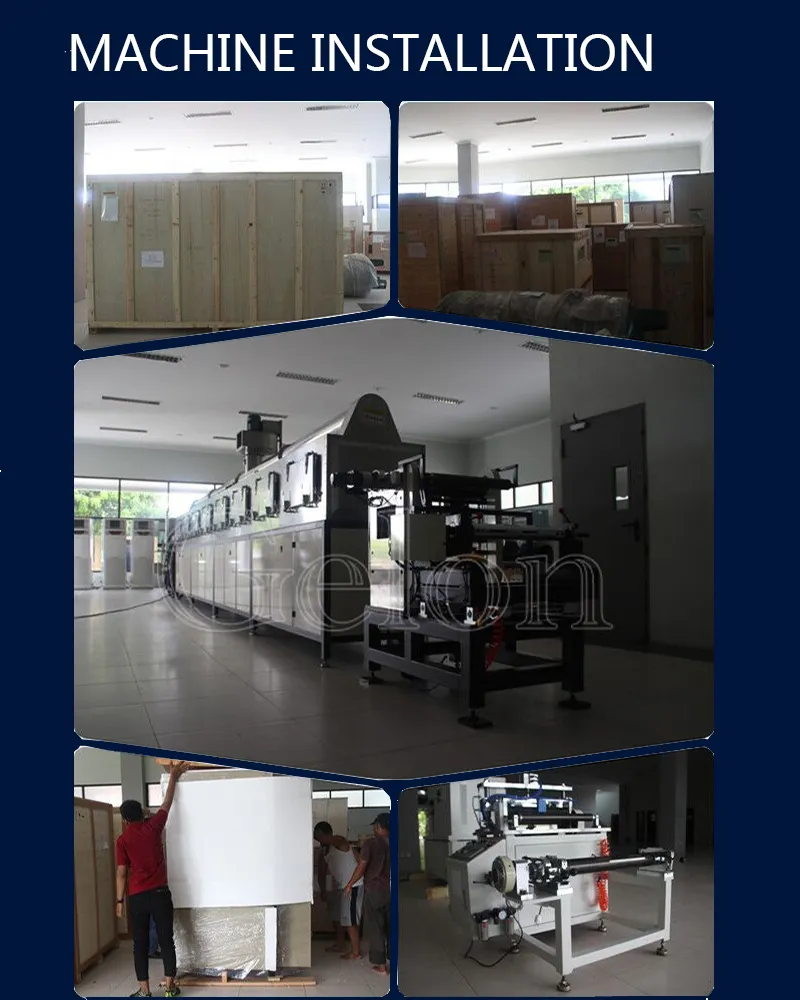

Equipments Display 1
Equipments Display 2
Technical Specifications Overview 1
Technical Specifications Overview 2
Testing and Lab Environment
Frequently Asked Questions (FAQ)
Q1: What are the main components of NMC cathode materials?
A1: NMC stands for Lithium Nickel Manganese Cobalt Oxide (LiNiMnCoO2). It is a mixed metal oxide combining nickel for high energy, manganese for thermal stability, and cobalt for structural stability.
Q2: What ratios of NMC materials do you offer?
A2: We offer four primary standard chemical ratios: NMC 1:1:1, NMC 5:3:2 (PLB-H5), NMC 4:4:2, and NMC 7:1.5:1.5 to cover a wide range of density and capacity requirements.
Q3: How should this raw material be stored?
A3: The powder must be stored in a dry, sealed warehouse and protected from moisture to prevent contamination and degradation of electrochemical performance.
Q4: Is the NMC cathode powder rechargeable?
A4: Yes, NMC is one of the most widely used active materials for secondary (rechargeable) lithium-ion batteries. The raw material itself is a powder for manufacturing rechargeable batteries.
Q5: What are the main applications of this material?
A5: It is primarily used as the cathode active material in manufacturing high-capacity lithium-ion cells for consumer electronics, electric vehicles (EVs), and R&D laboratory test cells.
Q6: Do you supply other materials and equipment besides NMC?
A6: Yes, we provide a complete turnkey solution, including raw materials (LTO, LiMn2O4, LiCoO2, Graphite, foil, separator) and assembly equipment (mixing, coating, rolling, welding, and sealing machines).
