All batteries are A-grade, thanks to advanced equipment and strict quality testing standards. All batteries are equipped with multiple protection safety systems to ensure safety and battery usage. No leakage.

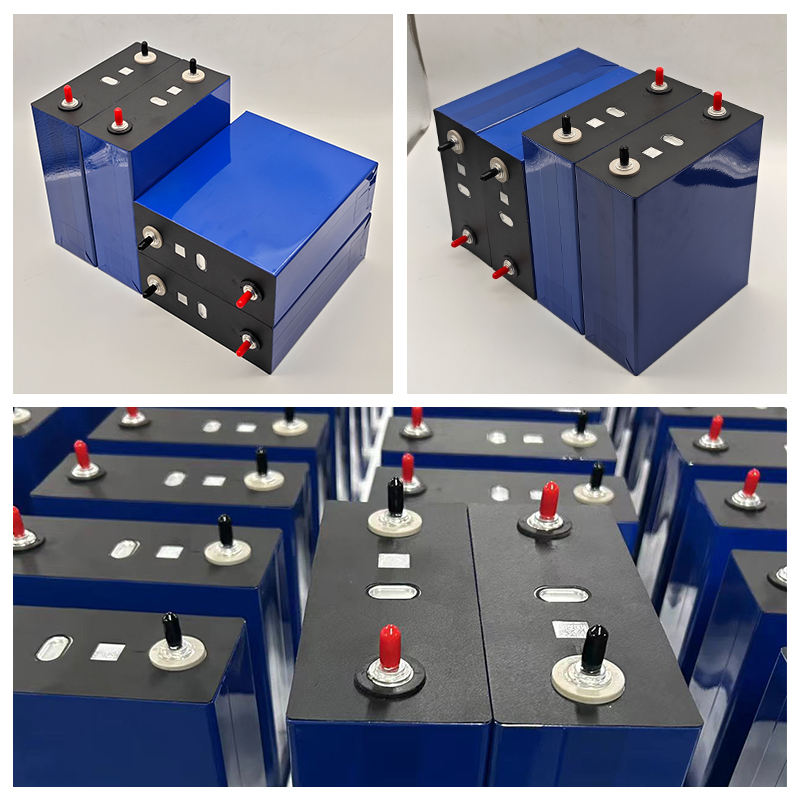

All battery units are equipped with multiple protection safety systems to ensure safety and battery use. No leakage. These LiFePO4 battery cells are easy to assemble and include necessary lithium iron 4 batteries, screws, and accessories. Does not contain LiFePO4 BMS.
Customers can make the battery pack they need. Lithium battery packs for towing motors, ships, RVs, solar energy, ships, household energy storage, UPS power supplies, lead-acid batteries, etc.
Please confirm the quantity with your system before placing an order
Suit for System: 12V 24V 48V 72V 96V 108V... Solar Energy Storage System
Application: RV Vans Campers EV Boats Yacht Golf Carts Forklift Solar Battery
Note:
| Parameter | Specification |
|---|---|
| Nominal Capacity | 314 Ah |
| Nominal Voltage | 3.2 V |
| Initial IR | 0.18 mΩ ± 0.05 mΩ |
| Weight | 5,600 g ± 300 g |
| Charging Cut-off Voltage | 3.65 V |
| Discharging Cut-off Voltage | 2.5 V (T > 0°C) / 2.0 V (T ≤ 0°C) |
| Charging Temperature | 0°C to 60°C |
| Discharging Temperature | -30°C to 60°C |
| Storage Temperature | 0°C to 35°C |

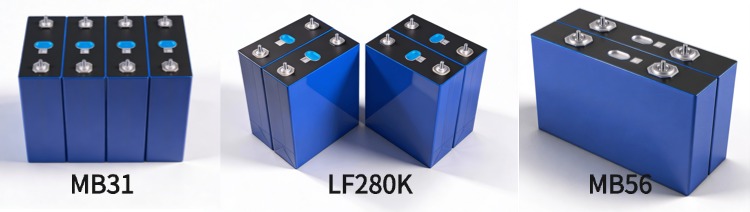

| Model Name | MB31 |
| Cycle Life | 12000 Cycles |
| Standard Charging Power | 0.5P |
| Standard Discharging Power | 0.5P |
| Height with Terminal (H) | 207.2 mm ± 0.5 mm |
| Height without Terminal (h) | 204.6 mm ± 0.5 mm |
| Length | 173.7 mm ± 0.5 mm |
| Thickness | 71.7 mm ± 0.8 mm |
A globally leading battery manufacturer with 10 years of industry experience, dedicated to providing innovative and reliable energy solutions to customers worldwide. The company operates in over 120 countries, with an annual production capacity exceeding 300,000 battery units. Our production base spans 15,000 square meters, consistently committed to delivering enduring and stable power to the world through efficient manufacturing and cutting-edge technology.
— Empowering the Future.
Are the batteries Top Quality, Brand NEW?
Yes, Top quality. The QR code is intact, Brand new from original factory.

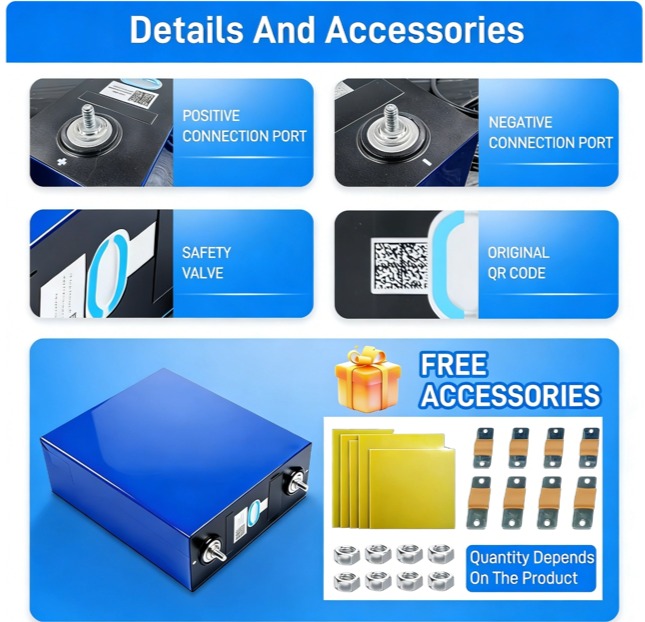

Do the batteries come with busbars and bolts?
The price comes with Bus bars and Bolts. One Battery will come with one set bus bar and bolt (e.g., If buy 4pcs battery, we will send 4pcs cells with 4pcs busbars and 8pcs bolts).
Do you test each battery PRIOR to shipping?
We will test all the battery Voltage and Internal resistance before shipping.

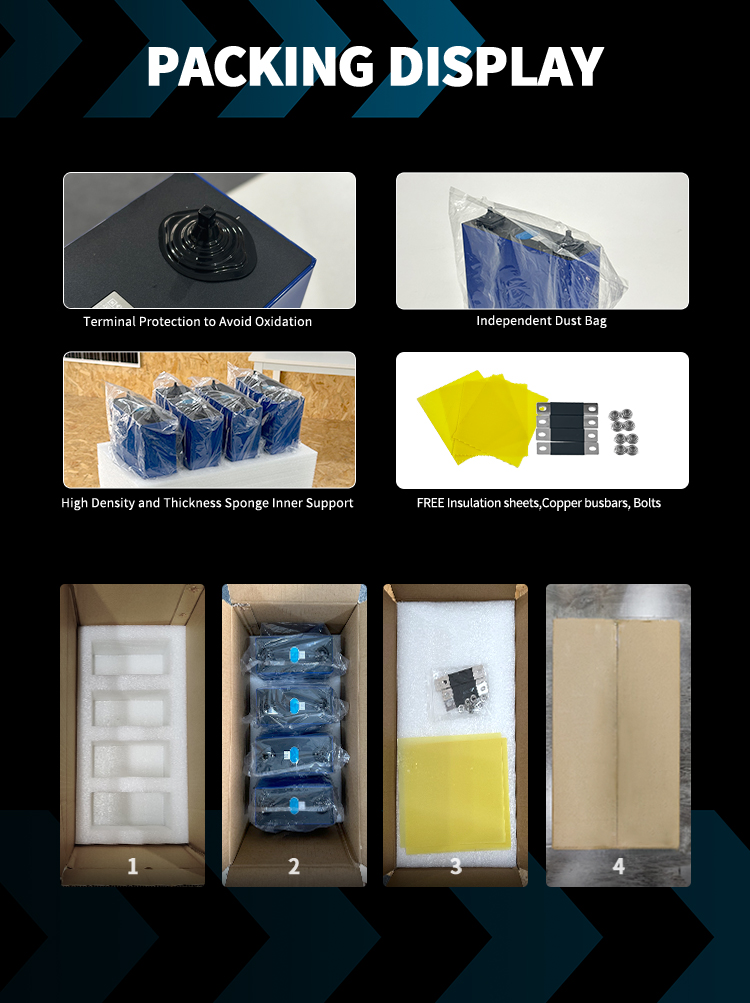

What kind of package is used for the cells?
Packed with strong packaging: each cell into thick PE foam or bag, then into a 5-layer strong carton.
What is delivery time if we place an order?
It depends on order quantities. Usually, we can deliver goods within 1-2 working days for small orders. For mass orders, we will confirm delivery time upon inquiry.
Why are there received scuff marks on LiFePO4 Prismatic cells?

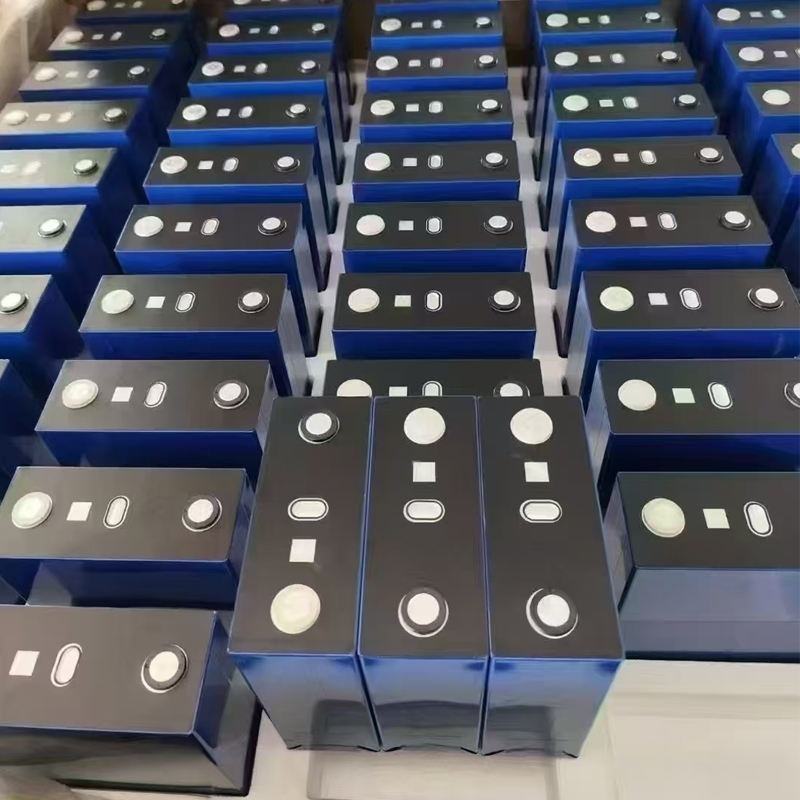

Scuff marks are normal due to the factory QC inspecting cells multiple times. A few minor scuff marks can happen during various inspections when all batteries are grouped together for QC checks at our warehouse. All prismatic cells are built with Laser Welded studs, and we verify each cell's Voltage and Internal resistance to guarantee the battery cells are fully matched and batched before shipment.
