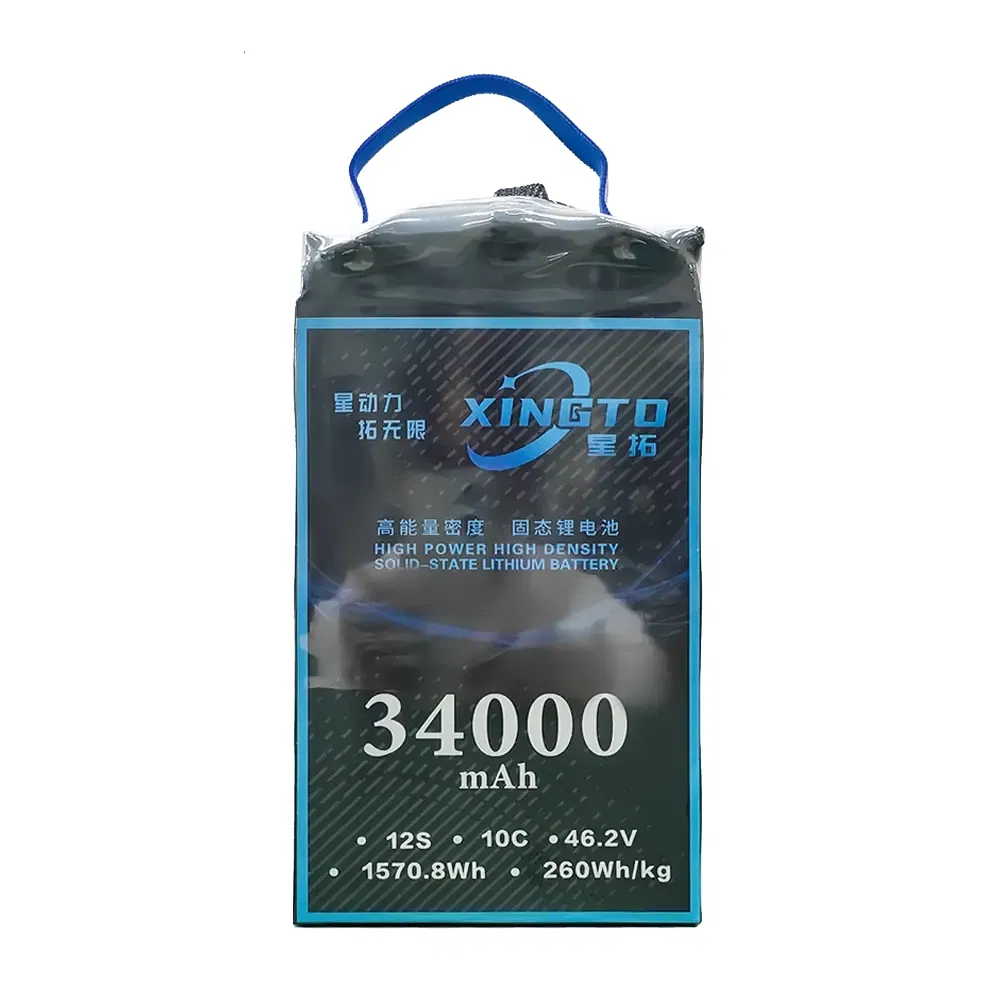

34000mAh High - Power Solid - State Drone Battery 12s 46.2V 10c

Still deciding? Get samples of $ !
Request Sample

Product Description

Basic Information

Model NO. 260wh-12s-34ah
Rechargeable Yes
Size Medium
Cells 12s
Discharge Rate 10c
Nominal Voltage 46.2V
Energy Density 260wh/Kg
Configuration 12s2p/46.2V
Capacity 18, 23, 29, 31, 34, 37, 40ah
Connector As150u, Xt60, Xt90, QS8, QS9, QS10, As150, As250
Transport Package Cardboard Box and Foam
Specification 18~40Ah
Origin Mainland China

Product Description

High-Performance Drone Battery – Powering the Future of Aerial Innovation

Designed for demanding drone applications, these advanced lithium-ion (Li-ion) batteries deliver exceptional energy density (260Wh/kg) and large capacities ranging from 18,000mAh to 40,000mAh, ensuring extended flight times for power-intensive missions. With a high discharge rate of 10C, these batteries provide robust, instantaneous power output, making them ideal for heavy-lift drones, rapid acceleration, and high-power applications.

Featuring a nominal voltage of 46.2V (12S configuration), these batteries are engineered to support high-voltage drone systems, improving efficiency and reducing current draw for enhanced performance. Their lightweight yet high-energy design maximizes payload capacity while maintaining flight endurance, crucial for professional and industrial drone operations.

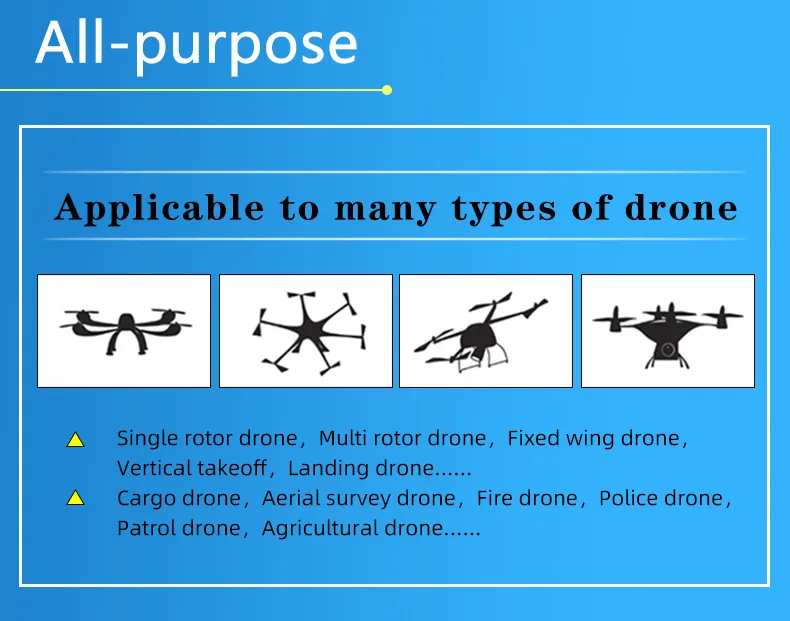

Key Applications:

  • Agricultural Drones – Supports long-duration crop spraying and field monitoring.
  • Multi-Rotor & Heavy-Lift Drones – Delivers stable power for aerial photography, surveying, and payload transport.
  • Logistics Drones – Enables reliable, long-range delivery operations.
  • Firefighting & Emergency Response Drones – Provides sustained power for thermal imaging and rescue missions.
  • VTOL (Vertical Take-Off and Landing) UAVs – Ensures seamless transition between hover and forward flight.

Built with advanced battery management systems (BMS), these batteries offer overcharge, over-discharge, and short-circuit protection, enhancing safety and longevity. Whether for commercial, industrial, or public safety use, these high-capacity, high-efficiency drone batteries are the ultimate power solution for next-generation UAVs.

Specs Summary:
  • Energy Density: 260Wh/kg
  • Capacity: 18,000–40,000mAh
  • Discharge Rate: 10C (Continuous)
  • Nominal Voltage: 46.2V (12S)
  • Compatibility: Multi-rotor, VTOL, heavy-lift, and industrial drones

Optimized for endurance and power, these batteries redefine drone performance in the most challenging environments.

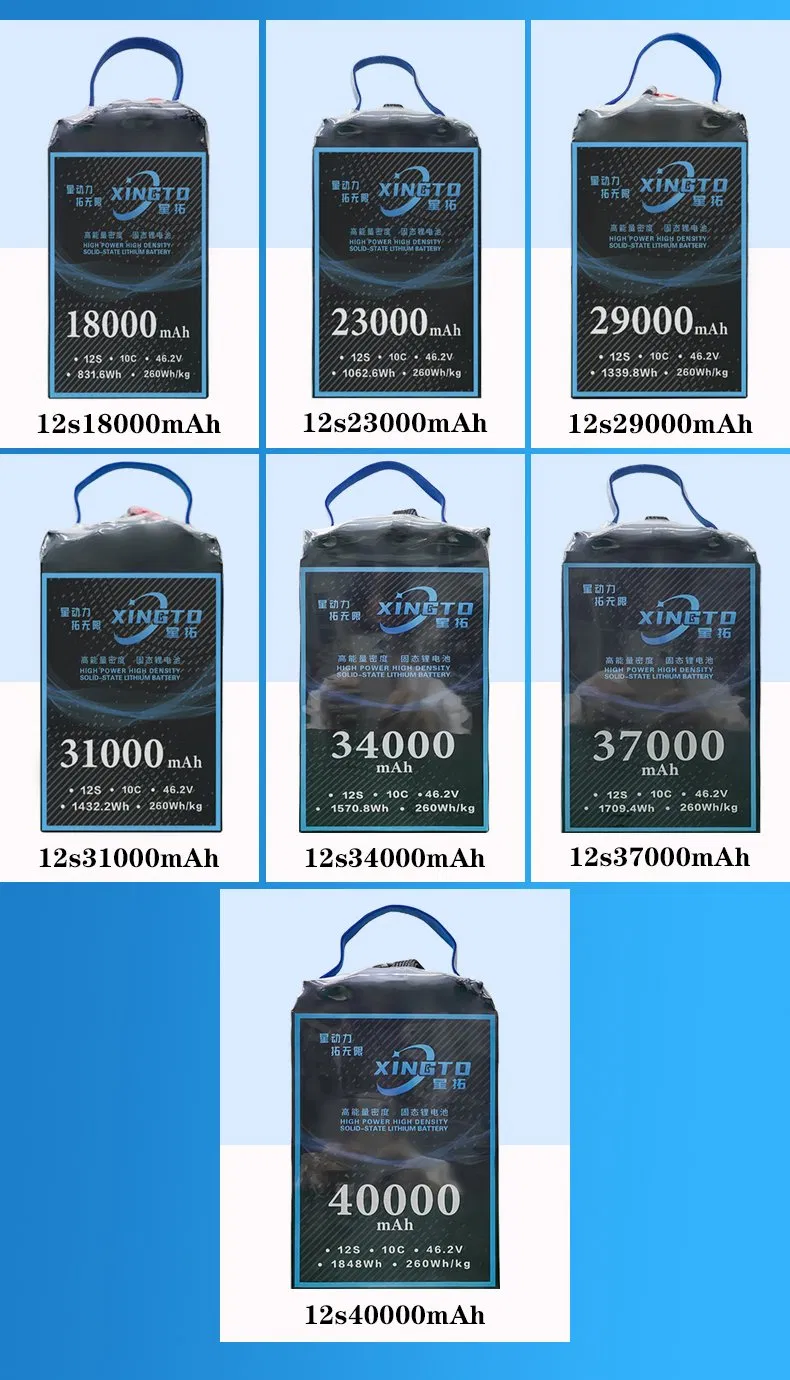

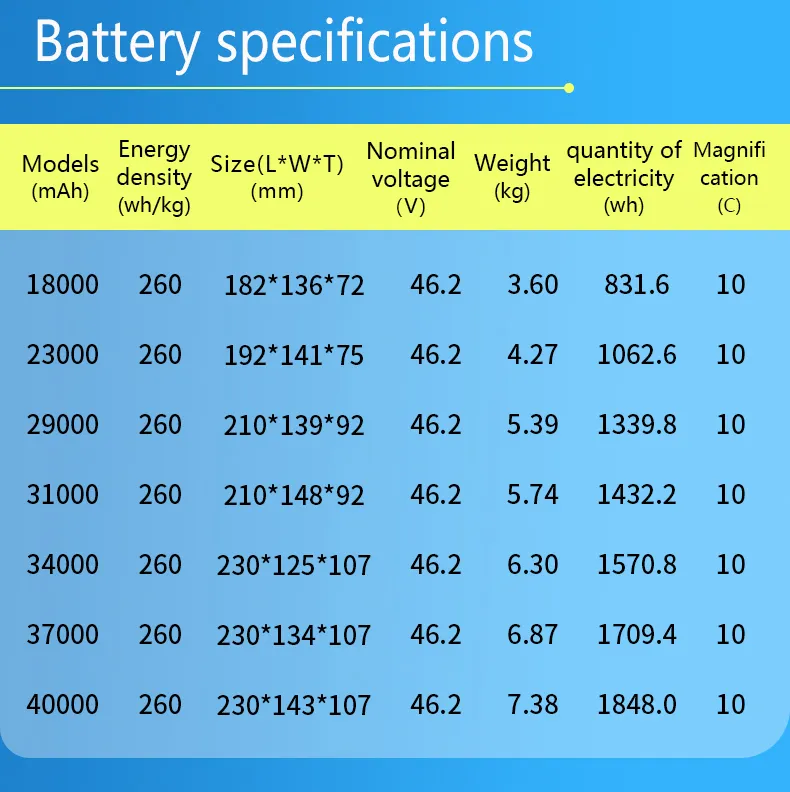

Specification

Capacity(mAh) Size(mm) Weight(kg) Electricity(Wh)
18000 182*136*72 3.60 831.6
23000 192*141*75 4.27 1062.6

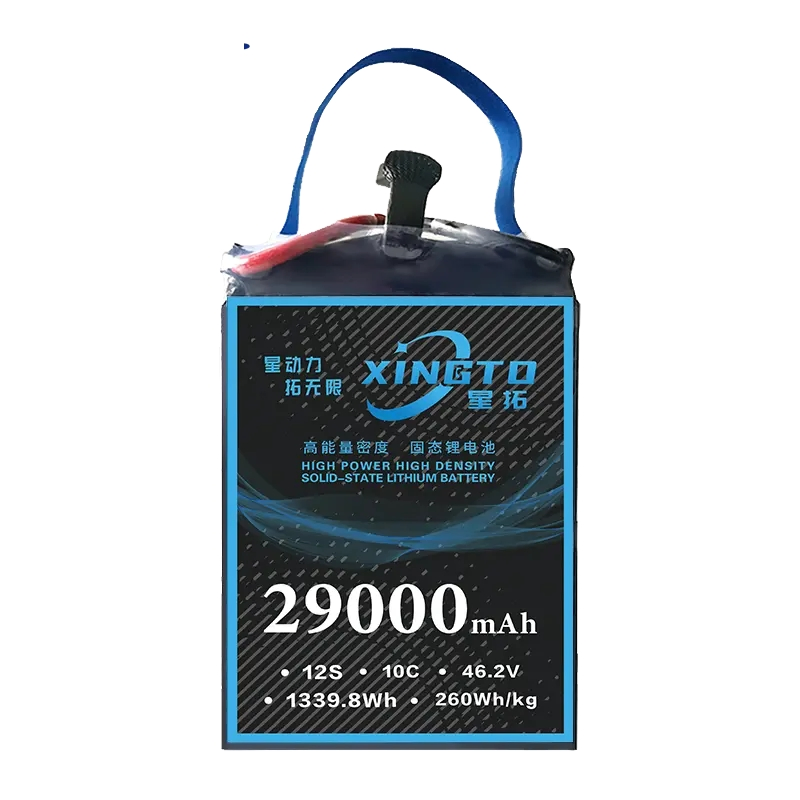

29000 210*139*92 5.39 1339.8

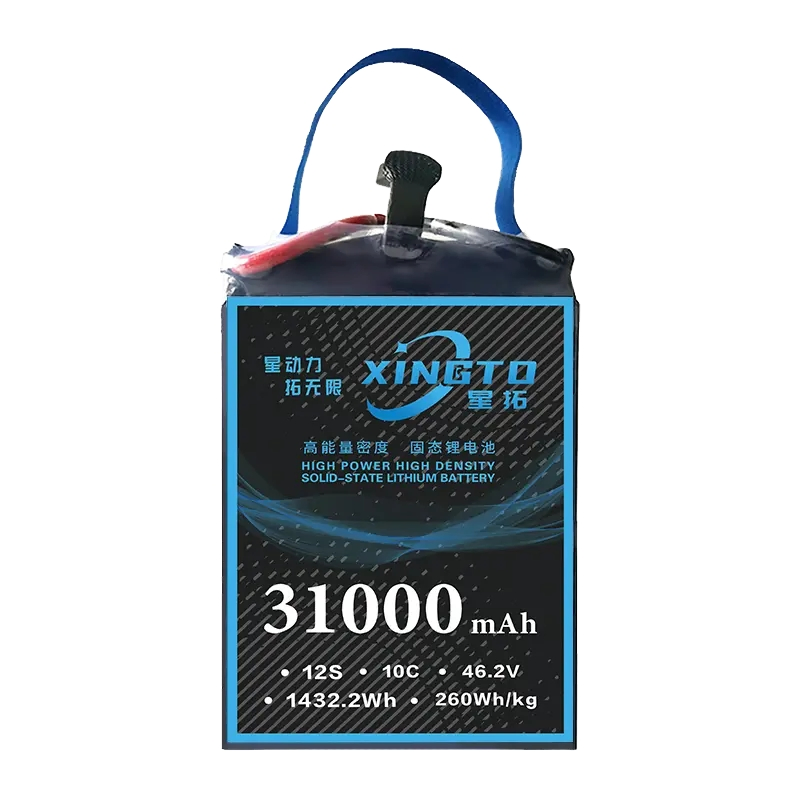

31000 210*148*92 5.74 1432.2
34000 230*125*107 6.30 1570.8

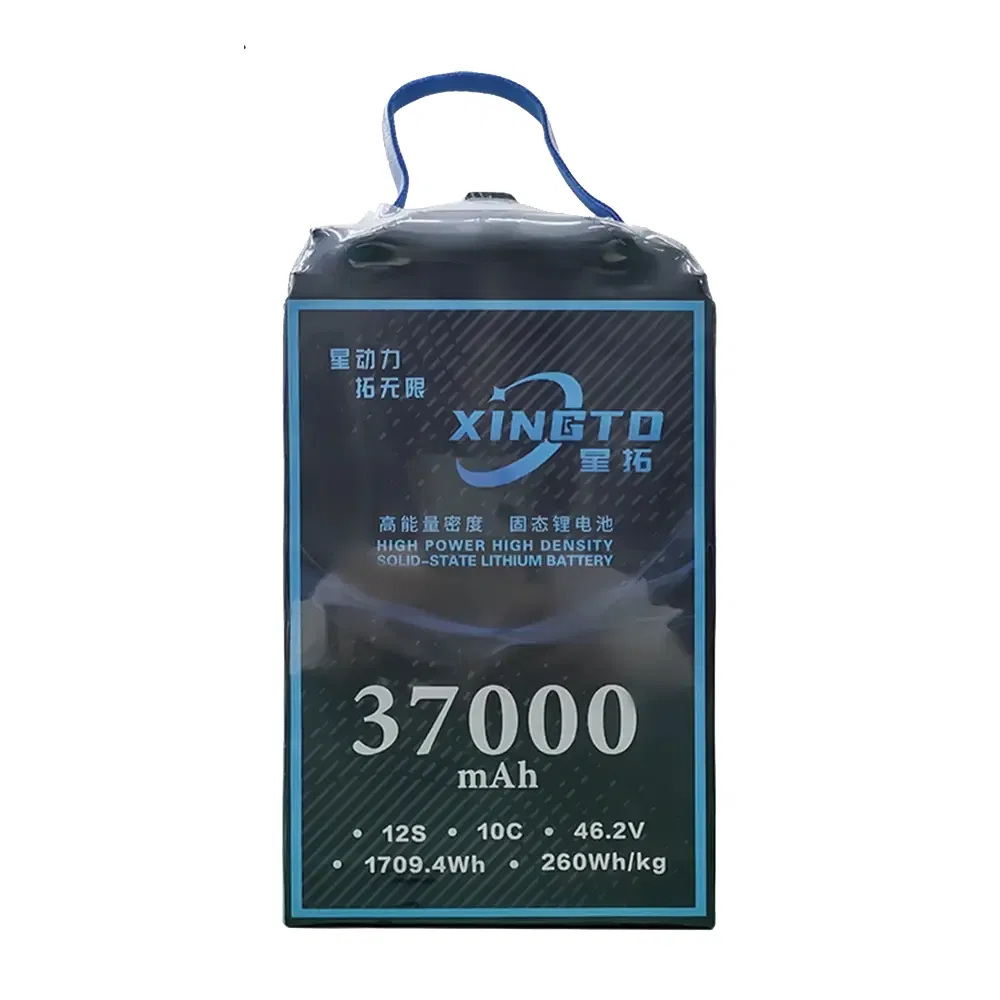

37000 230*134*107 6.87 1709.4

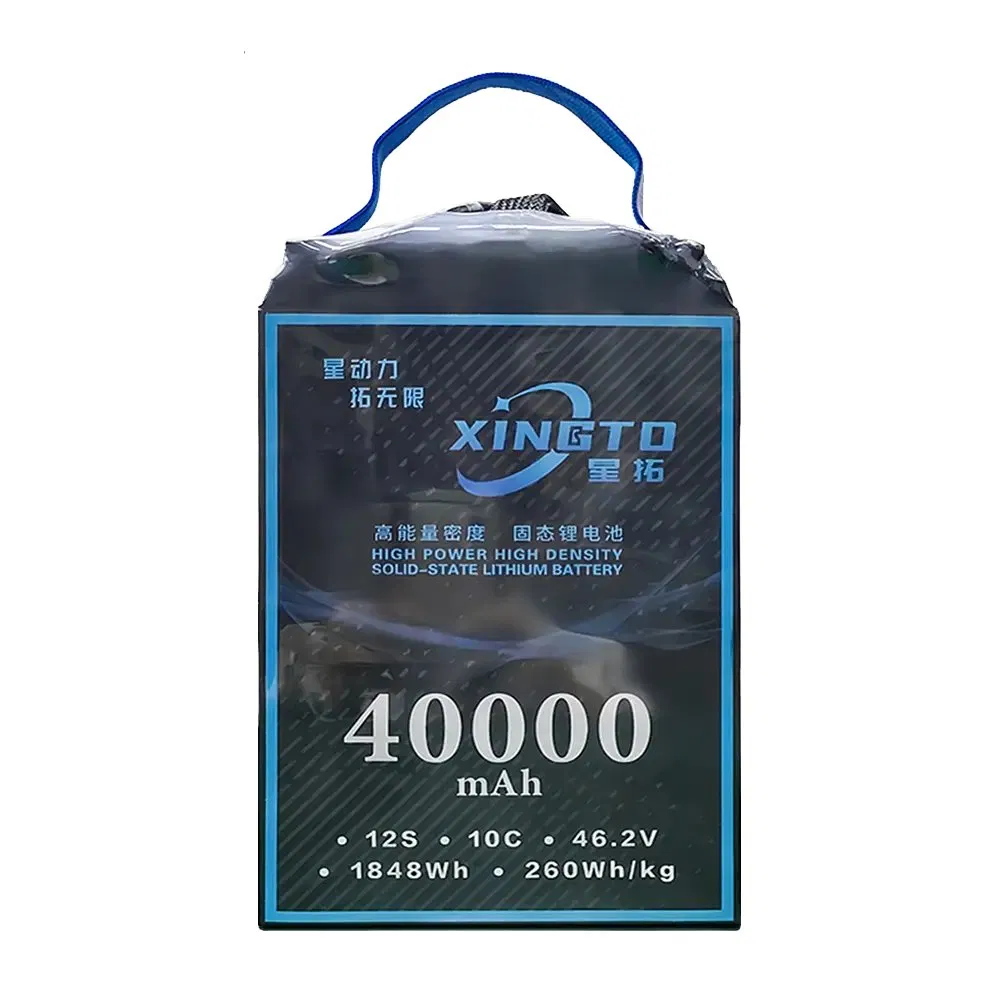

40000 230*143*107 7.38 1848.0

Frequently Asked Questions (FAQ)

What are the main advantages of these solid-state drone batteries?
These batteries offer an exceptionally high energy density of 260Wh/kg, which allows for significantly lighter weights compared to traditional batteries of the same capacity, extending the overall flight endurance of your UAV systems.
What capacity ranges are available, and how do I choose?
We offer capacities ranging from 18,000mAh to 40,000mAh. Choosing the right capacity depends on your payload requirements and flight duration targets; larger capacities provide longer flight times but add more weight, as shown in our specification table.
Are these batteries equipped with protective safety systems?
Yes, the batteries are built with an advanced Battery Management System (BMS) that actively protects against overcharging, over-discharging, and short-circuit risks, ensuring safe operation during intense flights.
What types of applications are these drone batteries optimized for?
They are highly optimized for demanding commercial and industrial missions, including agricultural crop spraying, heavy-lift transport, aerial mapping, VTOL UAV transitions, and emergency rescue operations.

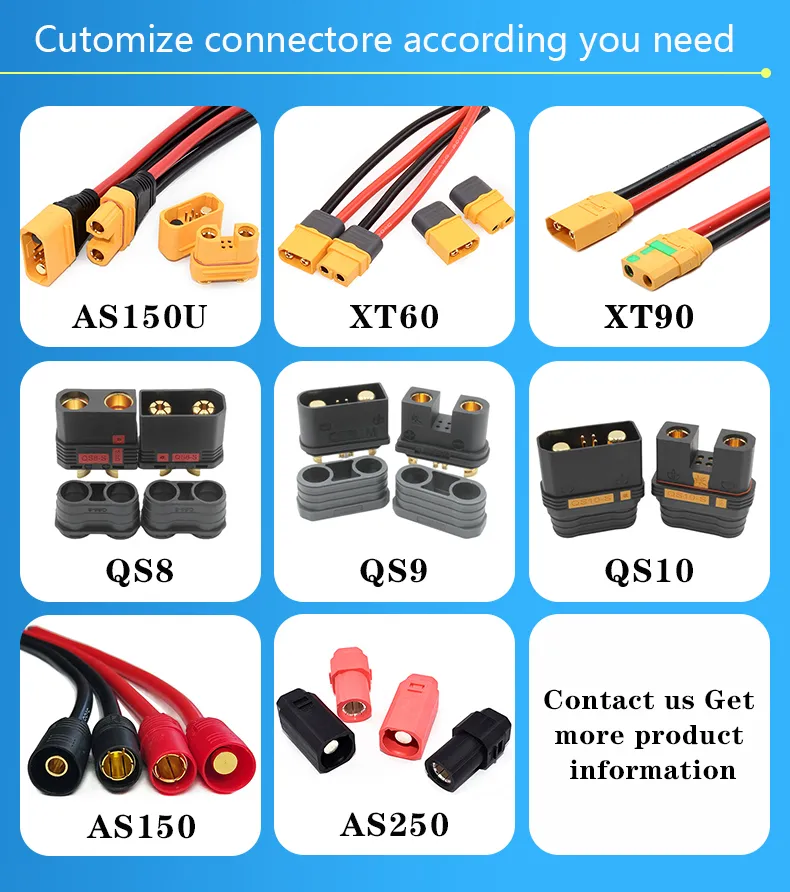

What connectors do these batteries support?
To support various drone configuration demands, these batteries are compatible with multiple connector types such as AS150U, XT60, XT90, QS8, QS9, QS10, AS150, and AS250.
How are these batteries packaged for safe delivery?
Safety during logistics is a priority. All batteries are securely packed using high-density foam structures inside durable cardboard boxes to absorb shocks and vibrations during shipping.
