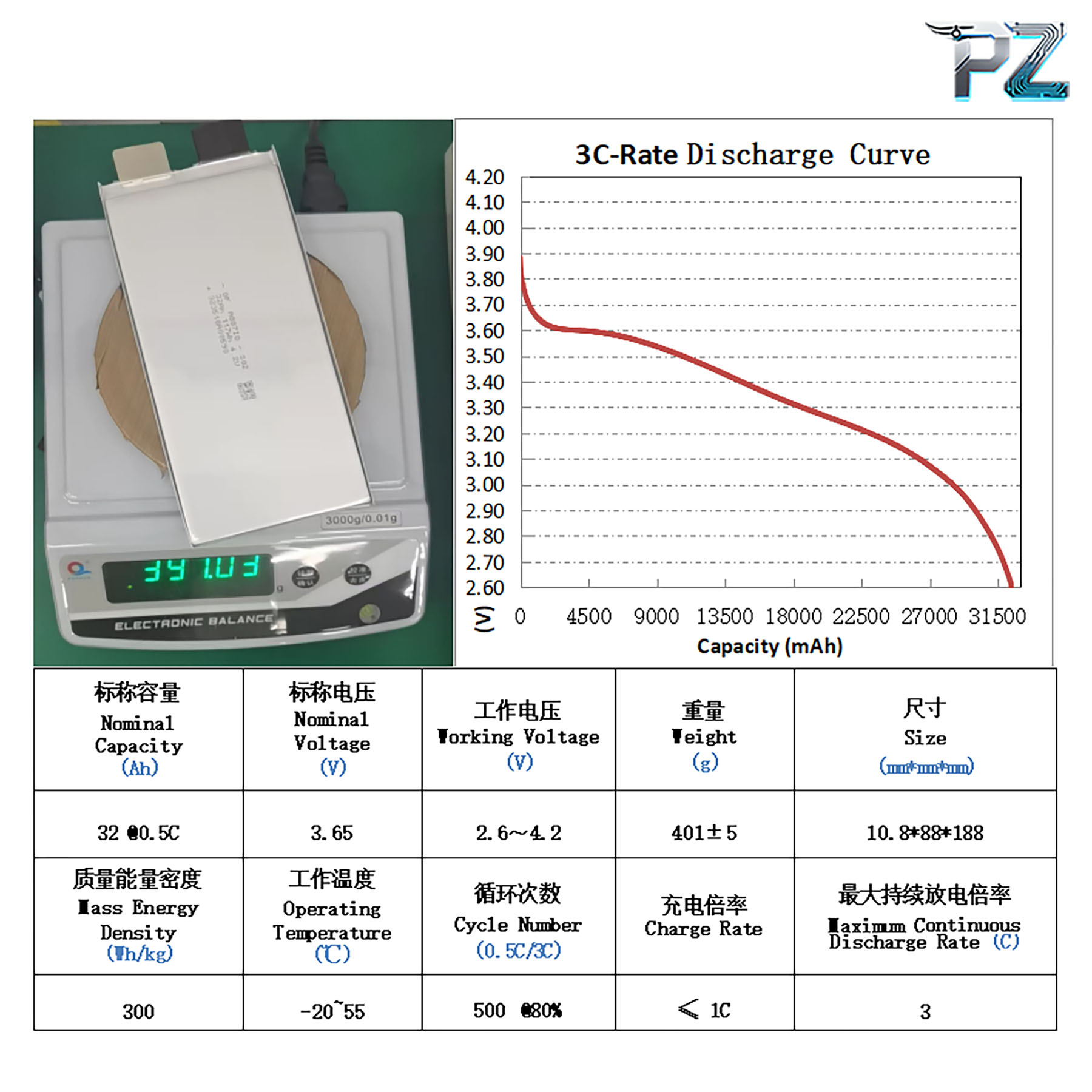

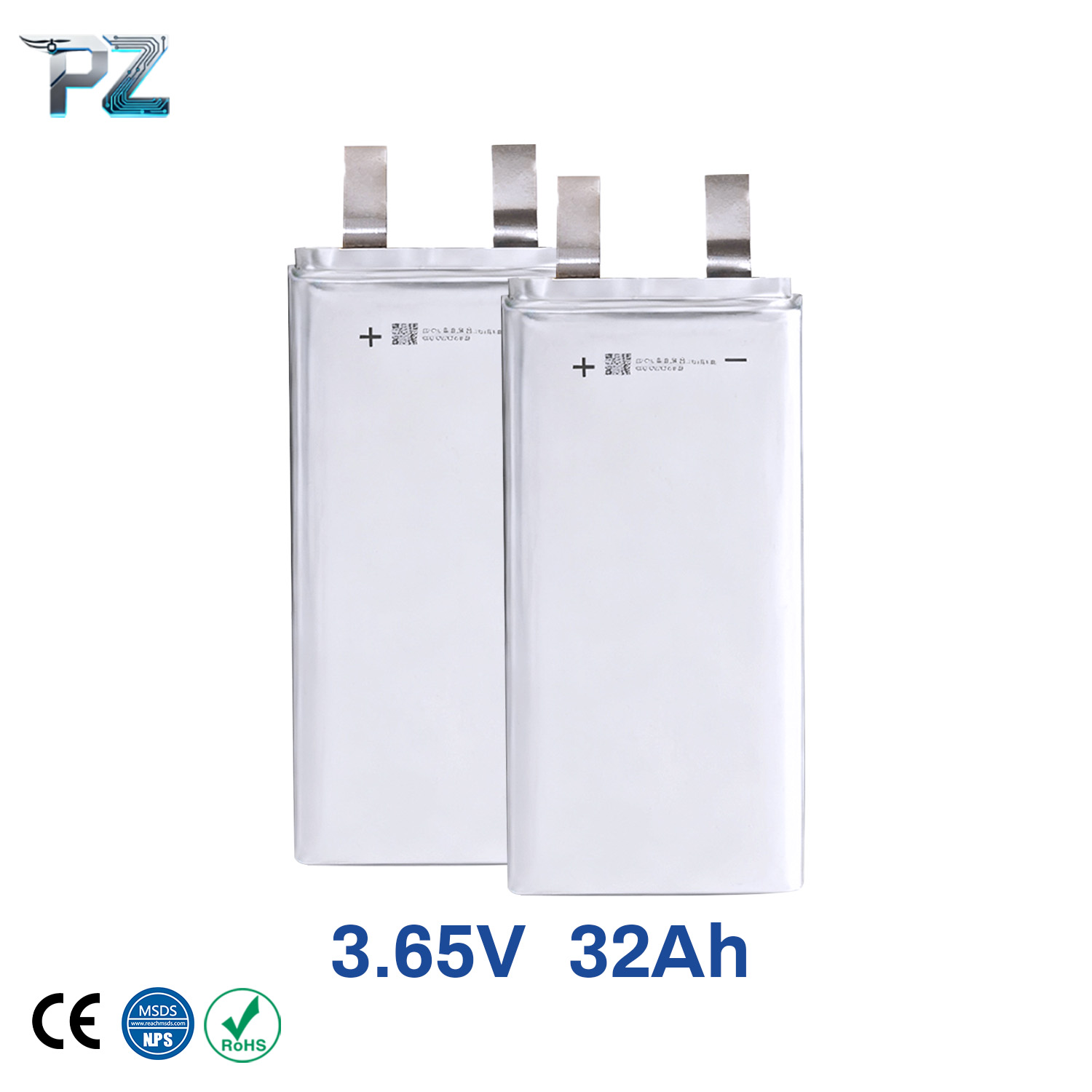

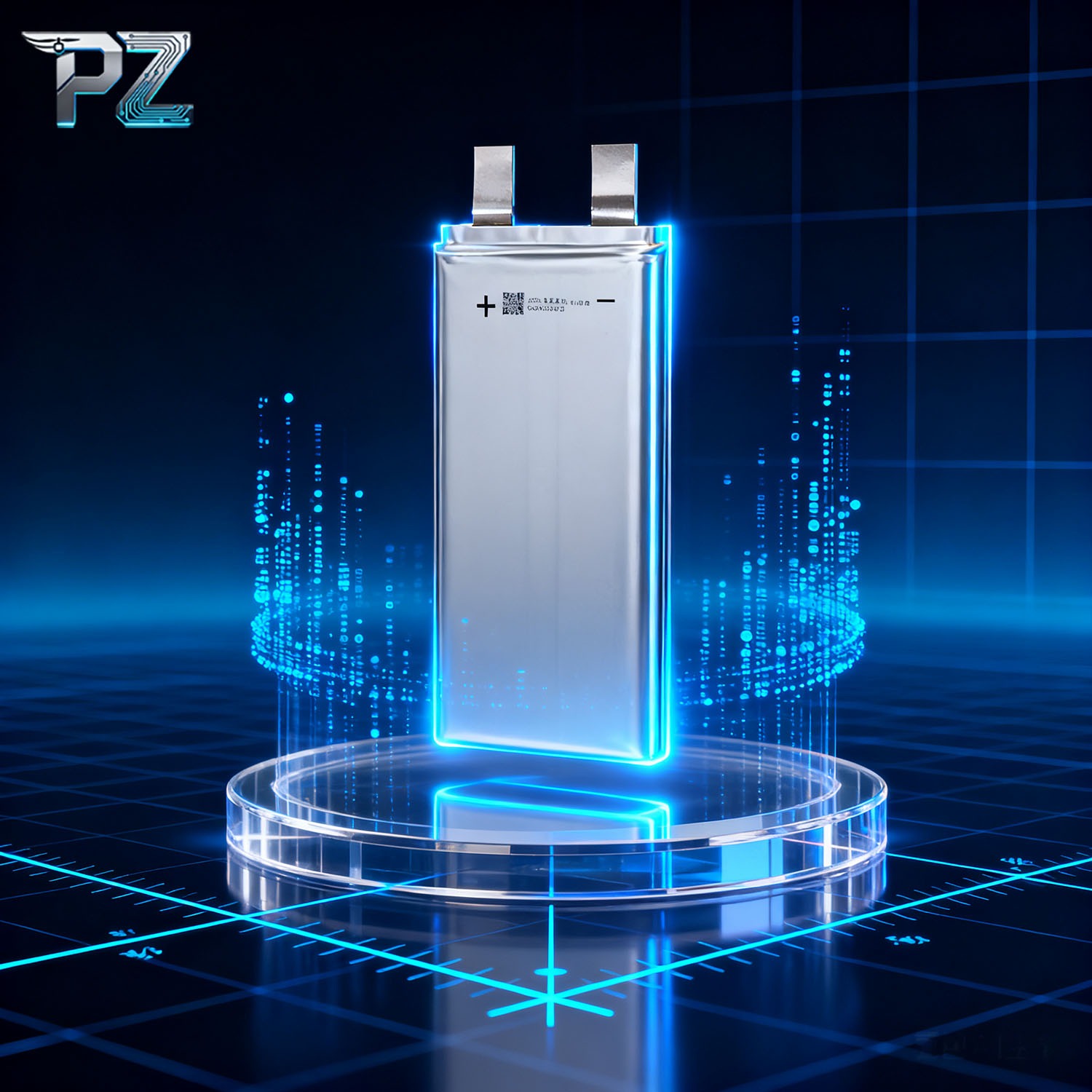

| Product Name | SVOLT 32000mAh 3.65V LiPo Cell | High Rate Discharge & Semi-Solid State NMC Pouch Cell for Heavy-Lift Industrial Drones and UAV |
| OEM | Acceptable |
| Certification | CE, ROHS |
| Nominal Capacity | 32000mAh |
| Nominal Voltage | 3.65V |
| Working Voltage | 2.6 ~ 4.2V |
| Net Weight | 401 ± 5g |

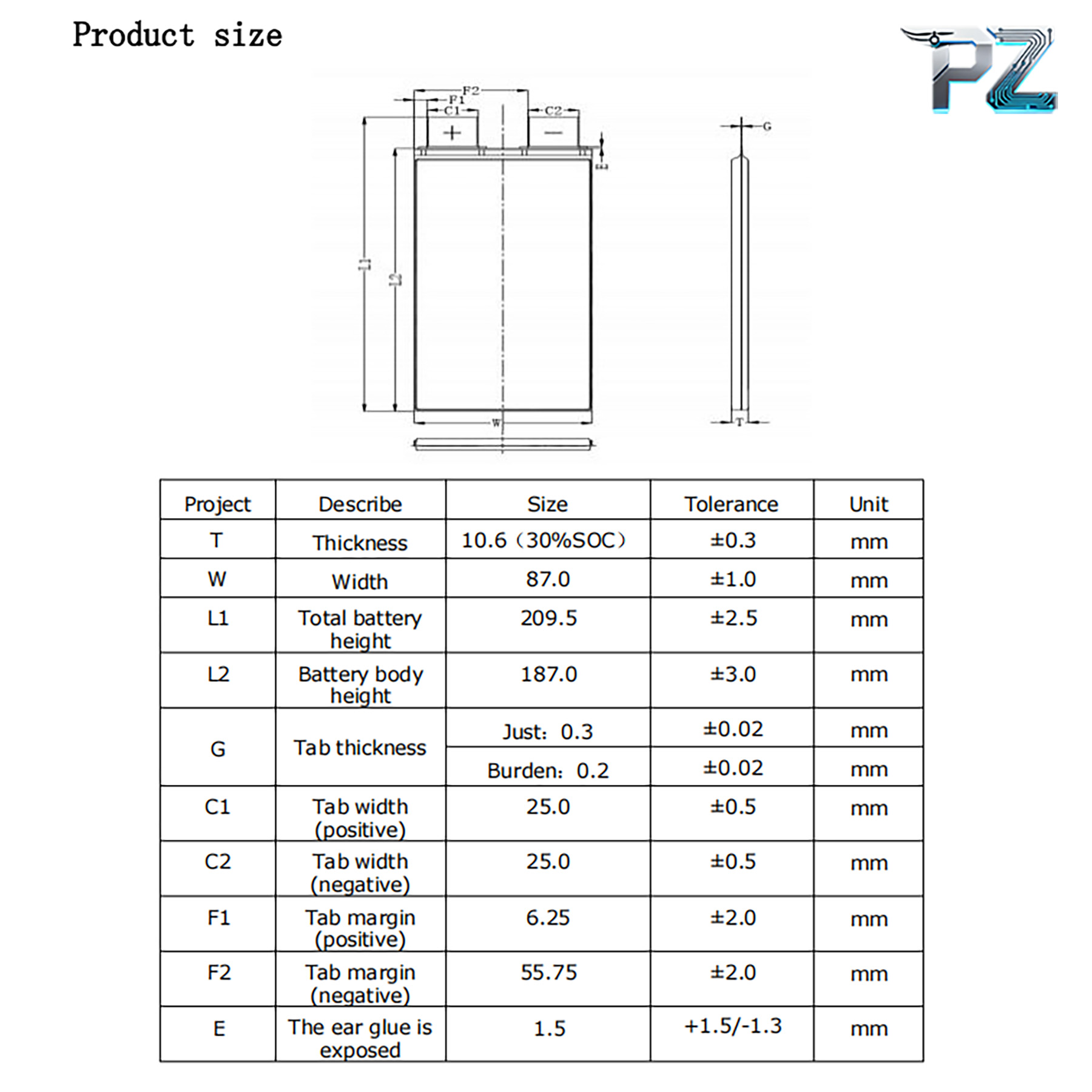

| Pack Size | 10.8 * 88 * 188mm |
| Mass Energy Density | 300 Wh/kg |
| Operating Temperature | -20 ~ 55 ℃ |
| Cycle Number | 500 @ 80% (0.5C/3C) |
| Charge Rate | ≤ 1C |
| Maximum Continuous Discharge Rate | 3C |
| Warranty | 6 - 12 months |
This semi-solid state NMC pouch cell is primarily designed for heavy-lift industrial drones, UAVs, agricultural spraying drones, and mapping aircraft requiring extended flight endurance.
Semi-solid state cells offer a significantly higher mass energy density (up to 300 Wh/kg) and enhanced safety performance compared to traditional LiPo batteries, delivering longer flight times for drones.
Yes, OEM configurations are acceptable. We can customize battery pack configurations, capacities, voltage, connectors, and dimensions to match your flight requirements.
The battery maintains over 80% of its initial capacity after 500 charge-discharge cycles under standard working parameters (0.5C charge and 3C discharge conditions).
The cell is certified compliant with CE and RoHS standards, adhering to rigorous safety, health, and environmental protection regulations.
The cell operates reliably within an ambient temperature range of -20°C up to 55°C, ensuring performance stability in various environmental climates.
